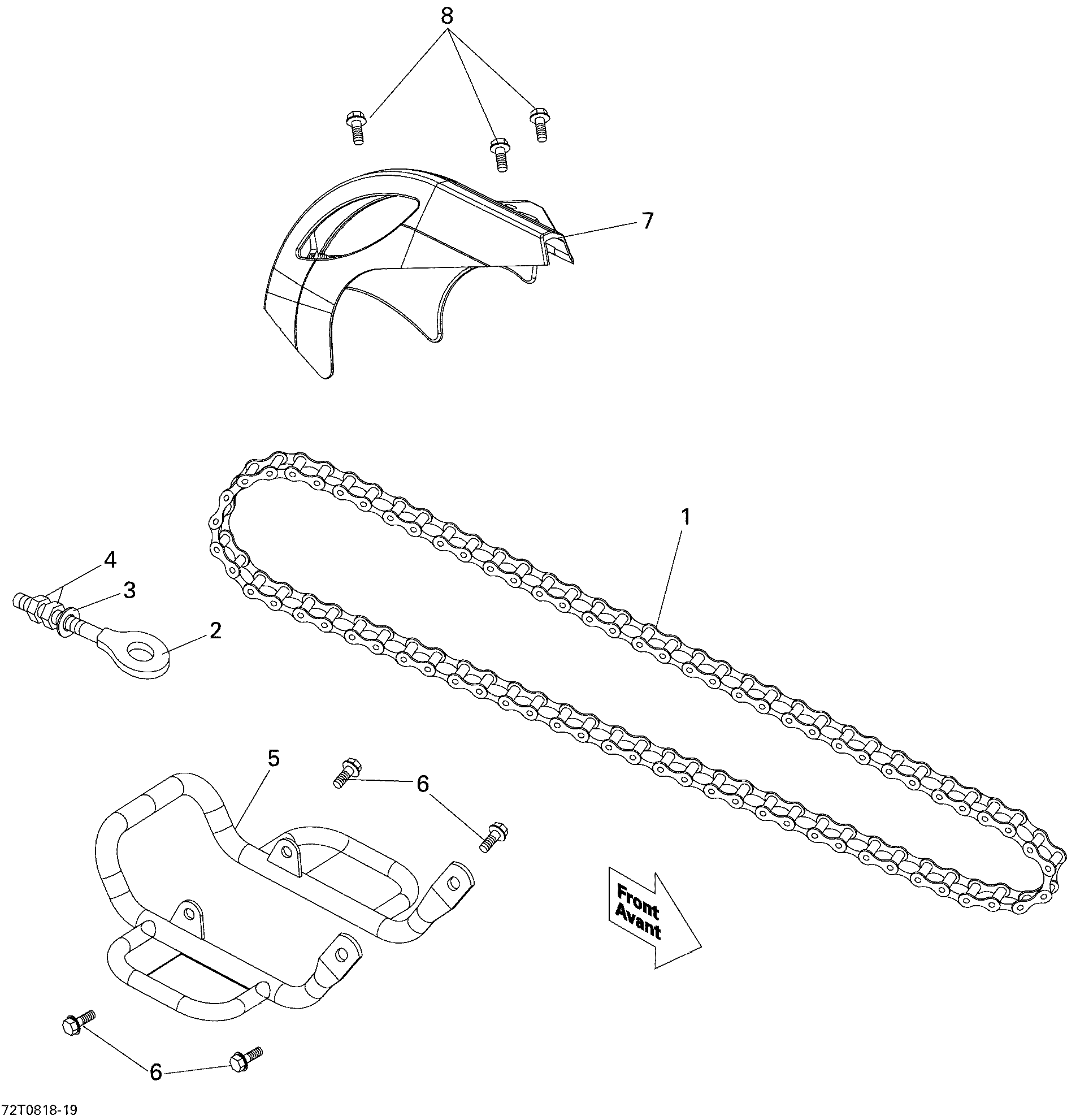

08- Chain для BRP Mini DS 90cc 4T Jaune - 2008
-
№АртикулНазвание
-
1V14428MAA000 ChainChain
-
2V50205MAA000 Chain AdjusterChain Adjuster
-
3A941010613010 Plain Washer, 6 X 13 X 1Plain Washer, 6 X 13 X 1
-
4V9400106000 Hex. NutHex. Nut
-
5V50240DGF020 Chain ProtectChain Protect
-
6V9600008016 Hex. Flanged ScrewHex. Flanged Screw
-
7V83750DGF000 Chain CoverChain Cover
-
8V9300006015 Round Head ScrewRound Head Screw
