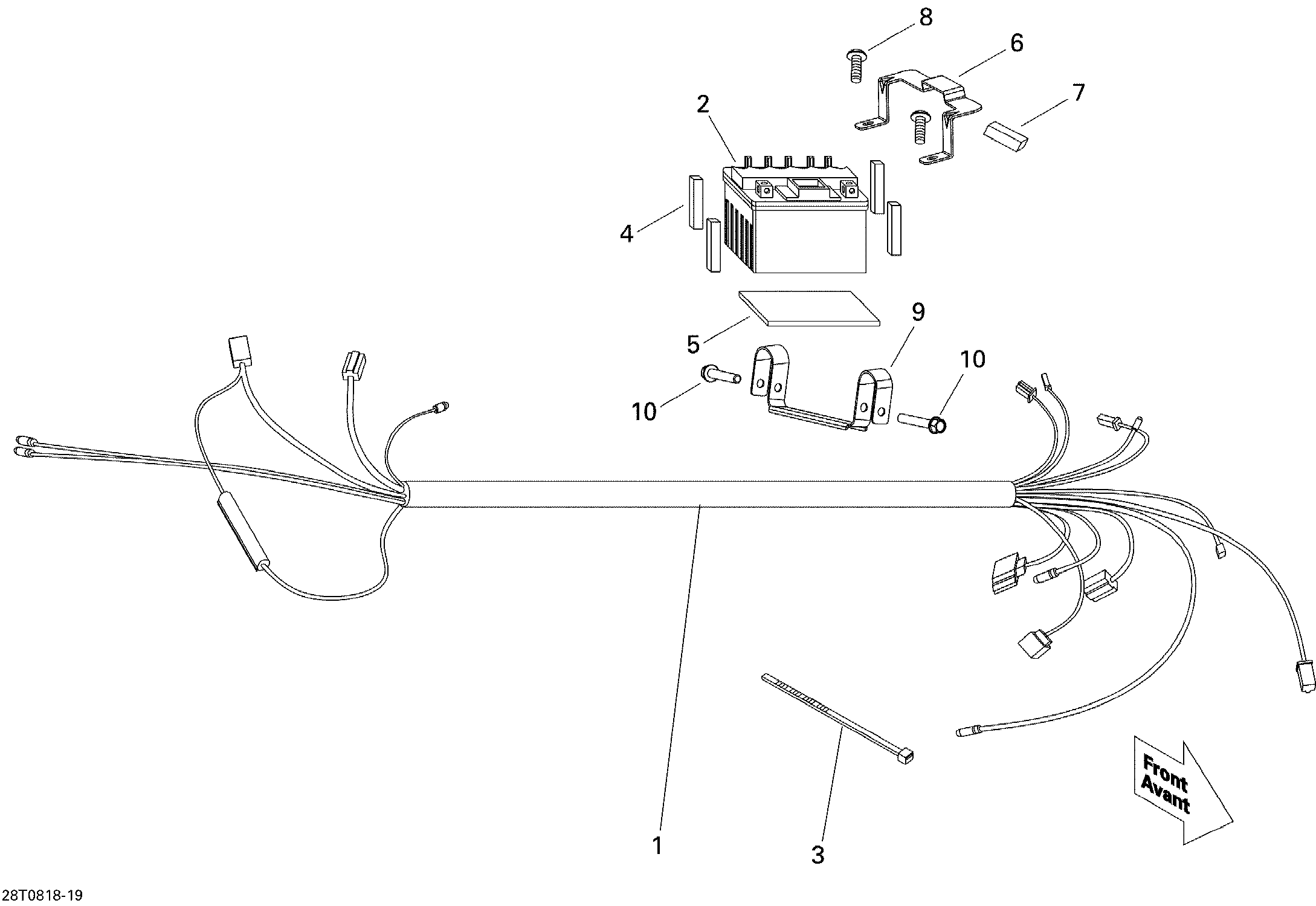

10- Main Harness and Battery для BRP Mini DS 70cc 4T Jaune - 2008
‹-+›
-
№АртикулНазвание
-
1V32100DGF070 Main Wire HarnessMain Wire Harness
-
2V31500MAA010 BatteryBattery
-
3414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
4V81149MAA000 Cushion RubberCushion Rubber
-
5V81151DGF020 FoamFoam
-
6V50296DGF010 Battery BracketBattery Bracket
-
7V81152DGF000 Cushion RubberCushion Rubber
-
8V9300006012 Round Head ScrewRound Head Screw
-
9V50229DGF01H Battery BracketBattery Bracket
-
10207663044 Hex. Flanged Screw M6 X 30Hex. Flanged Screw M6 X 30
