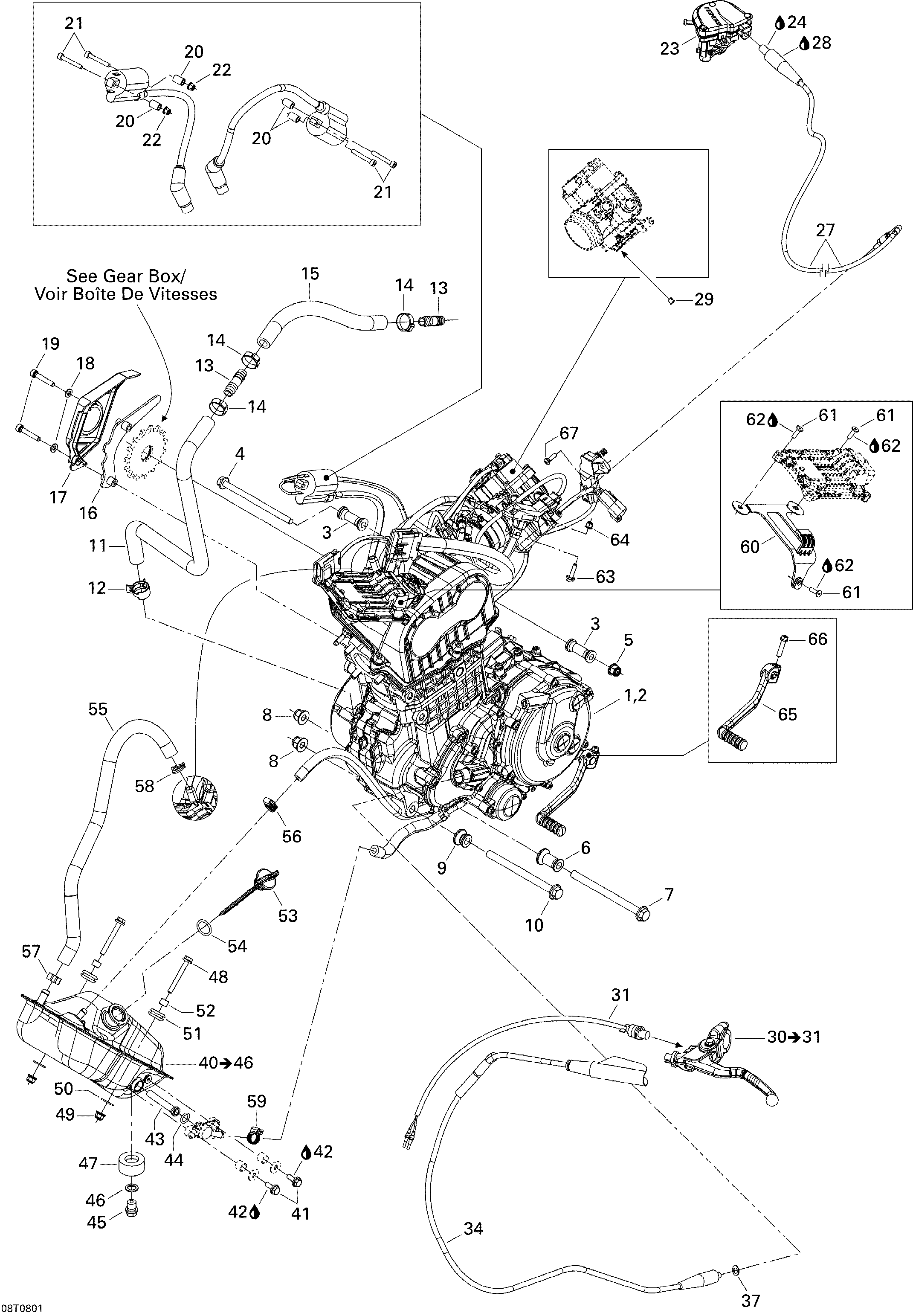

01- Engine для BRP DS 450 - 2008
-
№АртикулНазвание
-
2420044901 Long Block, 449 EngineLong Block, 449 Engine
-
3293900071 SpacerSpacer
-
4230683034 Hex. Flanged Screw M8 X 130Hex. Flanged Screw M8 X 130
-
5233281434 Hex. Flanged Elastic NutHex. Flanged Elastic Nut
-
6293900072 SpacerSpacer
-
7230603536 Hex. Flanged Screw M10 X 135Hex. Flanged Screw M10 X 135
-
8233201434 Hex. Flanged Elastic NutHex. Flanged Elastic Nut
-
9293900074 SpacerSpacer
-
10230603036 Hex. Flanged Screw M10 X 130Hex. Flanged Screw M10 X 130
-
11707000502 HoseHose
-
12293650110 Norma ClampNorma Clamp
-
13293710119 ConnectorConnector
-
14293650012 Oetiker ClampOetiker Clamp
-
15707000537 Hose 12 mmHose 12 mm
-
16707000464 Chain GuardChain Guard
-
17707000425 Sprocket CoverSprocket Cover
-
18234061430 Flat Washer M6Flat Washer M6
-
19205563536 Socket Head Screw M6 X 35, Scotch GripSocket Head Screw M6 X 35, Scotch Grip
-
20293900078 SleeveSleeve
-
21205053534 Socket Head Screw M5 X 35Socket Head Screw M5 X 35
-
22233251434 Flanged Elastic NutFlanged Elastic Nut
-
23707000440 Throttle HandleThrottle Handle
-
24293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
27707000439 Throttle CableThrottle Cable
-
28293600041 Cable Lubricant, 400 GCable Lubricant, 400 G
-
29707000434 Cable GuideCable Guide
-
30707000605 Handle Lever Ass'y. Includes 30 to 31Handle Lever Ass'y. Includes 30 to 31
-
31707000183 Lever Shifter SwitchLever Shifter Switch
-
34707000606 Clutch CableClutch Cable
-
37504082900 WasherWasher
-
40707000474 Oil Tank Ass'y. Includes 40 to 46Oil Tank Ass'y. Includes 40 to 46
-
41207662034 Hex. Flanged ScrewHex. Flanged Screw
-
42293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
43519000144 StrainerStrainer
-
44293300128 O-RingO-Ring
-
45250500010 PlugPlug
-
46250200061 Copper WasherCopper Washer
-
47705001678 Rubber StopperRubber Stopper
-
48207665034 Hex. Flanged ScrewHex. Flanged Screw
-
49233261434 Flanged Elastic Nut M6Flanged Elastic Nut M6
-
50250200082 Flat WasherFlat Washer
-
51293720062 GrommetGrommet
-
52293900089 SpacerSpacer
-
53707000526 Oil CapOil Cap
-
54709000089 O-RingO-Ring
-
55707000544 HoseHose
-
56293650171 Tridon Hose ClampTridon Hose Clamp
-
57293650011 Oetiker ClampOetiker Clamp
-
58293650180 Rotoclip ClampRotoclip Clamp
-
59293650171 Tridon Hose ClampTridon Hose Clamp
-
60710000972 Module SupportModule Support
-
61250000295 Socket Head Screw M5 X 16Socket Head Screw M5 X 16
-
62293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
63207652034 Hex. Flanged Screw M5 X 20Hex. Flanged Screw M5 X 20
-
64233251434 Flanged Elastic NutFlanged Elastic Nut
-
65420248540 Gearshift PedalGearshift Pedal
-
66420440232 Flanged Torx Screw M6 X 25Flanged Torx Screw M6 X 25
-
67250000146 Truss Head Torx Screw K50 X 16Truss Head Torx Screw K50 X 16
