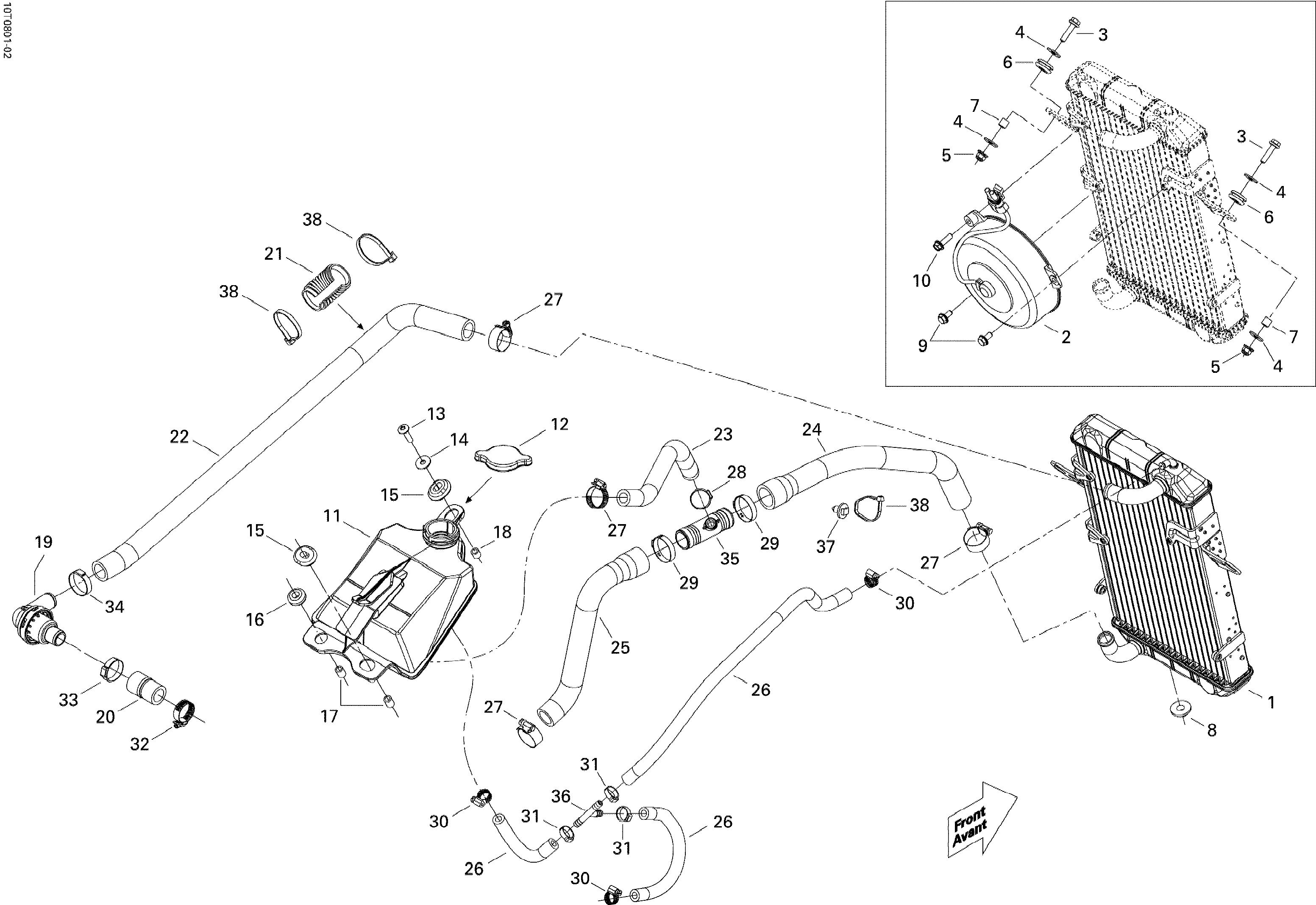

01- Cooling System для BRP DS 450 - 2008
-
№АртикулНазвание
-
1709200152 RadiatorRadiator
-
2709200173 FanFan
-
3207662534 Hex. Flanged ScrewHex. Flanged Screw
-
4250200082 Flat WasherFlat Washer
-
5233261434 Flanged Elastic Nut M6Flanged Elastic Nut M6
-
6293720053 GrommetGrommet
-
7293900045 BushingBushing
-
8709200115 BushingBushing
-
9207561234 Hex. Flanged Screw M6 X 12, Scotch GripHex. Flanged Screw M6 X 12, Scotch Grip
-
10207562034 Hex. Flanged Screw M6 X 20, Scotch GripHex. Flanged Screw M6 X 20, Scotch Grip
-
11709200164 TankTank
-
12709200033 Pressure CapPressure Cap
-
13207562544 Hex. Flanged Screw M6 X 25, Scotch GripHex. Flanged Screw M6 X 25, Scotch Grip
-
14250200082 Flat WasherFlat Washer
-
15705005156 Oblong WasherOblong Washer
-
16293720053 GrommetGrommet
-
17293900019 BushingBushing
-
18293900045 BushingBushing
-
19709200172 Thermostat Ass'yThermostat Ass'y
-
20709200200 HoseHose
-
21709200240 Protector TubeProtector Tube
-
22709200153 Radiator In HoseRadiator In Hose
-
23276000151 Hose 12.5 mmHose 12.5 mm
-
24709200154 Radiator Out HoseRadiator Out Hose
-
25709200162 HoseHose
-
26509000407 Hose 8 mmHose 8 mm
-
27293650051 Tridon Gear ClampTridon Gear Clamp
-
28293650012 Oetiker ClampOetiker Clamp
-
29509000045 Oetiker Gear ClampOetiker Gear Clamp
-
30293650084 Norma ClampNorma Clamp
-
31293650125 Oetiker ClampOetiker Clamp
-
32293650173 Tridon Gear ClampTridon Gear Clamp
-
33293650099 Oetiker Gear ClampOetiker Gear Clamp
-
34293650165 Oetiker ClampOetiker Clamp
-
35509000390 Y FittingY Fitting
-
36293710024 T-FittingT-Fitting
-
37293730040 Mount DartMount Dart
-
38414115200 Tie-Rap 180 mmTie-Rap 180 mm
