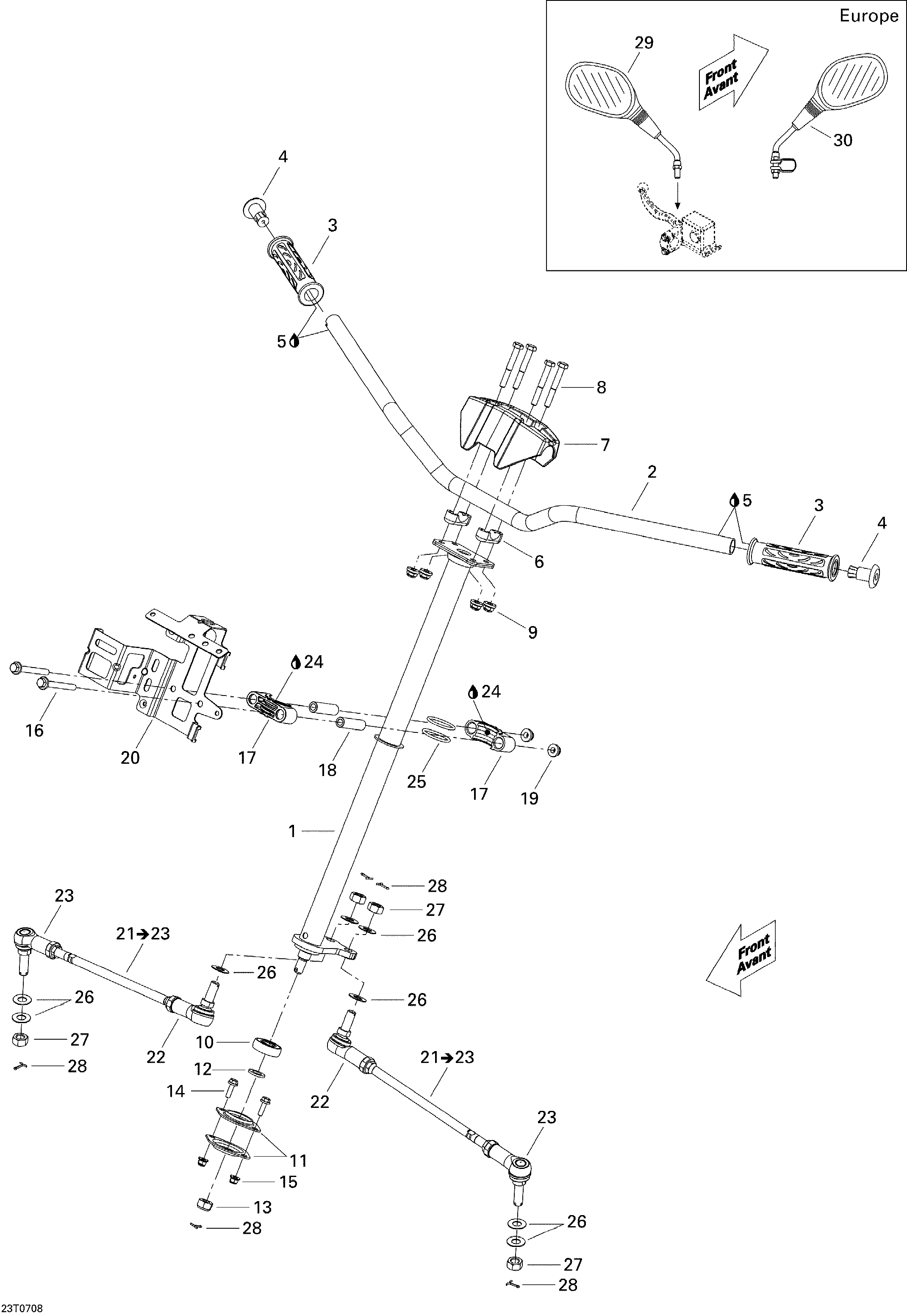

07- Steering System для BRP Renegade 800 EFI - 2007
-
№АртикулНазвание
-
1709400283 Main Tube, BlackMain Tube, Black
-
2709400458 Handle BarHandle Bar
-
3709400157 Grip, BlackGrip, Black
-
4709400449 End PieceEnd Piece
-
5293800100 Loctite 406, 7 OzLoctite 406, 7 Oz
-
6506151622 Steering SupportSteering Support
-
7709400438 Handle SupportHandle Support
-
8205086060 Socket Head Screw M8 X 60Socket Head Screw M8 X 60
-
9233281416 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
10709400439 Ball BearingBall Bearing
-
11709400152 Thrust WasherThrust Washer
-
12234021410 Flat Washer 12 mmFlat Washer 12 mm
-
13250000047 Hex Flanged Elastic Nut M12Hex Flanged Elastic Nut M12
-
14207562044 Flanged Screw M6 X 20, Scotch GripFlanged Screw M6 X 20, Scotch Grip
-
15233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
16207687044 Hex Flanged Screw M8 X 70Hex Flanged Screw M8 X 70
-
17709400471 Half BushingHalf Bushing
-
18709400072 BushingBushing
-
19233281414 Hex Flanged Elastic Nut M8Hex Flanged Elastic Nut M8
-
20705200965 Module SupportModule Support
-
21709400190 Tie Rod Ass'y. Includes 21 to 23Tie Rod Ass'y. Includes 21 to 23
-
22709400195 RH Ball JointRH Ball Joint
-
23709400196 LH Ball JointLH Ball Joint
-
24293550010 Synthetic Grease, 400 GSynthetic Grease, 400 G
-
25293300068 O-RingO-Ring
-
26706200281 Hardened WasherHardened Washer
-
27250100045 Nut M12Nut M12
-
28211400013 Cotter PinCotter Pin
-
29709400406 LH Mirror. EuropeLH Mirror. Europe
-
30709400407 RH Mirror. EuropeRH Mirror. Europe
