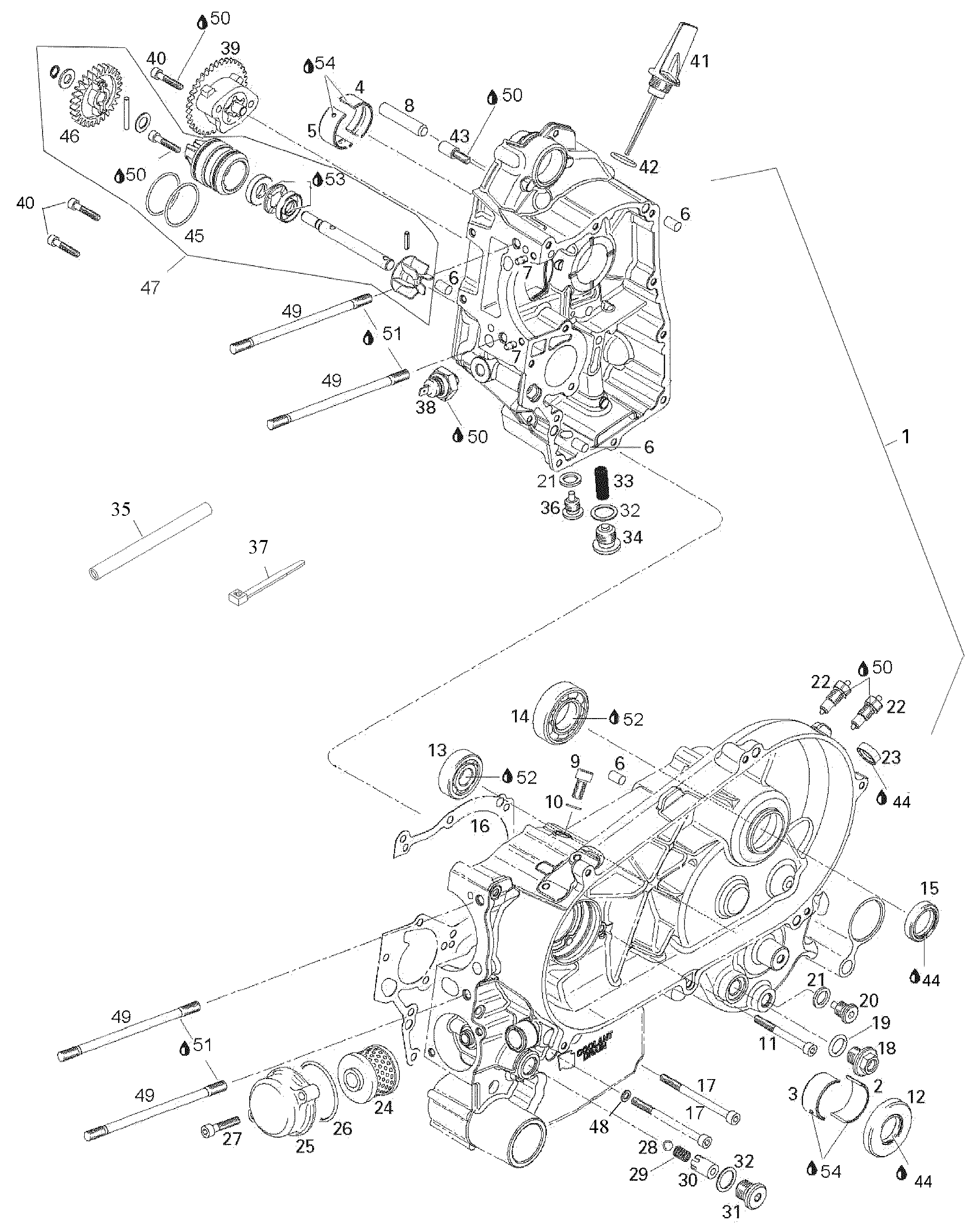

01- Crankcase для BRP Rally 175 - 2007
-
№АртикулНазвание
-
1A11000179000 Crankcase Ass'yCrankcase Ass'y
-
2A96700179000 Plain Bearing APlain Bearing A
-
3A96701179000 Plain Bearing BPlain Bearing B
-
4A96702179000 Plain Bearing CPlain Bearing C
-
5A96703179000 Plain Bearing DPlain Bearing D
-
6A9430108120 Dowel Pin, 8 X 12Dowel Pin, 8 X 12
-
7A9430105100 Drive Pin 5 X 10Drive Pin 5 X 10
-
8A9630010050 Location PinLocation Pin
-
9205081660 Socket Head Screw M8 X 16Socket Head Screw M8 X 16
-
10A941030813008 Sealing RingSealing Ring
-
11420240371 Allen Screw M6 X 60Allen Screw M6 X 60
-
12A9650025527 Oil SealOil Seal
-
13A961006302C3 Ball BearingBall Bearing
-
14A961006205C3 Ball BearingBall Bearing
-
15A9650025357 Oil SealOil Seal
-
16A11191179000 GasketGasket
-
17420241501 Allen Screw M6 X 80Allen Screw M6 X 80
-
18420241660 Plug Screw M14 X 1.5Plug Screw M14 X 1.5
-
19A91314179000 O-RingO-Ring
-
20420841921 Plug Screw M12 X 1.5Plug Screw M12 X 1.5
-
21A941031218013 GasketGasket
-
22420241856 Contact Screw M10Contact Screw M10
-
23A96500121845 Oil SealOil Seal
-
24715500367 Oil FilterOil Filter
-
25A12361179000 Oil Filter CoverOil Filter Cover
-
26A91347179000 O-RingO-Ring
-
27420241941 Hex Flanged Screw M6 X 30Hex Flanged Screw M6 X 30
-
28A11401179000 Ball 8.5 mmBall 8.5 mm
-
29A11402179000 Compression SpringCompression Spring
-
30A11403179000 Pressure Regulator ValvePressure Regulator Valve
-
31420240230 Plug Screw M16 X 1.5Plug Screw M16 X 1.5
-
32A941031622012 O-RingO-Ring
-
33A15421179000 Oil SieveOil Sieve
-
34420240235 Plug Screw M16 X 1.5Plug Screw M16 X 1.5
-
35A944500507150 HousingHousing
-
36420241782 Magnetic Drain Plug M12 X 1.5Magnetic Drain Plug M12 X 1.5
-
37A90669179000 Tie RapTie Rap
-
38420956166 Oil Pressure Switch M10 X 1Oil Pressure Switch M10 X 1
-
39420295630 Oil Pump Ass'yOil Pump Ass'y
-
40420241275 Taptite Screw M5 X 25Taptite Screw M5 X 25
-
41A15650179000 Oil DipstickOil Dipstick
-
42A91317179000 O-RingO-Ring
-
43420240940 Screw M6Screw M6
-
44293550030 Grease, Super LubeGrease, Super Lube
-
45420430900 O-RingO-Ring
-
46420634430 Water Pump Gear, 28 TeethWater Pump Gear, 28 Teeth
-
47420293419 Water Pump Ass'yWater Pump Ass'y
-
48420230415 Seal WasherSeal Washer
-
49420640240 Stud M8 X 151Stud M8 X 151
-
50293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
51293800038 Loctite 518, 50 mlLoctite 518, 50 ml
-
52293800070 Loctite 767, Antiseize Lubricant, 8 OzLoctite 767, Antiseize Lubricant, 8 Oz
-
53413707000 Molykote 111, 150 GMolykote 111, 150 G
-
54420297433 Molykote G-n, 50 GMolykote G-n, 50 G
