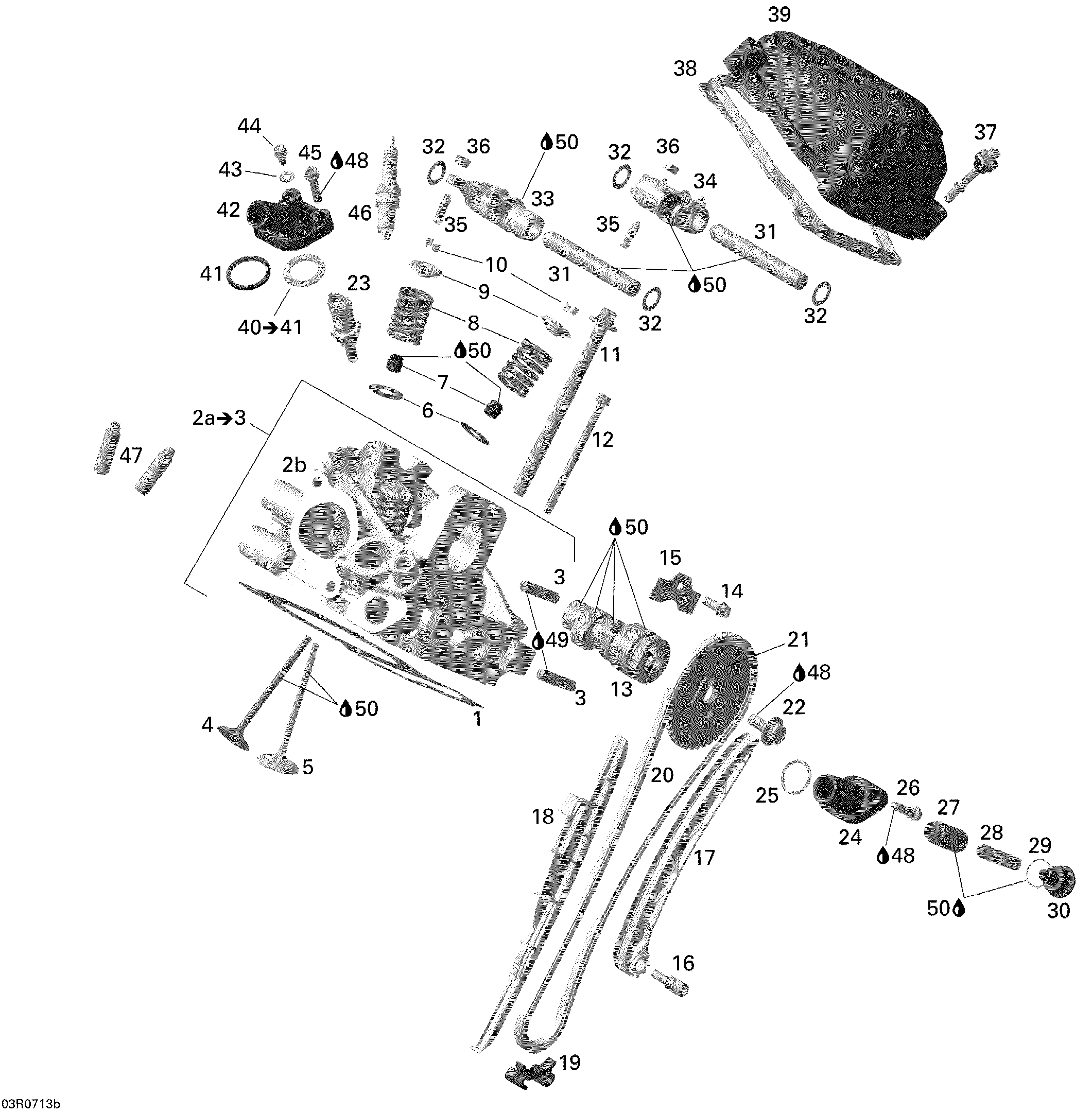

01- Cylinder Head, Rear для BRP Outlander 800 XT 4 X 4 - 2007
-
№АртикулНазвание
-
1420630195 Cylinder Head GasketCylinder Head Gasket
-
2a420613530 Cylinder Head (Rear) Ass'y. Includes 2a to 3Cylinder Head (Rear) Ass'y. Includes 2a to 3
-
3420941014 Stud M8 x 26Stud M8 x 26
-
4420254351 Intake Valve, 31 mmIntake Valve, 31 mm
-
5420254361 Exhaust Valve, 27 mmExhaust Valve, 27 mm
-
6420627770 Thrust WasherThrust Washer
-
7420230515 Valve Stem SealValve Stem Seal
-
8420239295 Valve SpringValve Spring
-
9420254132 Valve Spring RetainerValve Spring Retainer
-
10420254120 Cotter ValveCotter Valve
-
11420641550 Torx Screw M10 X 140Torx Screw M10 X 140
-
12420440347 Flanged Torx Screw M6 X 85Flanged Torx Screw M6 X 85
-
13420620016 CamshaftCamshaft
-
14420440167 Flanged Torx Screw M6 X 16Flanged Torx Screw M6 X 16
-
15420627743 Holding StripHolding Strip
-
16420240942 Bearing Screw M6Bearing Screw M6
-
17420236574 Chain Tension GuideChain Tension Guide
-
18420236581 Chain GuideChain Guide
-
19420236350 Chain GuideChain Guide
-
20420297060 Silent ChainSilent Chain
-
21420254432 Camshaft Sprocket, 21 TeethCamshaft Sprocket, 21 Teeth
-
22420241721 Hex Collar Screw M8 X 20Hex Collar Screw M8 X 20
-
23420222425 Temperature SensorTemperature Sensor
-
24420236510 Chain Tensioner HousingChain Tensioner Housing
-
25420430370 O-RingO-Ring
-
26420440237 Torx Flange Screw M6 X 25Torx Flange Screw M6 X 25
-
27420236520 Chain Tensioner PlungerChain Tensioner Plunger
-
28420238120 SpringSpring
-
29420250890 O-RingO-Ring
-
30420641150 Plug ScrewPlug Screw
-
31420229711 Pin # 12, Small, M6 X 90Pin # 12, Small, M6 X 90
-
32420944382 ShimShim
-
33420254406 Rocker Arm InletRocker Arm Inlet
-
34420254416 Rocker Arm ExhaustRocker Arm Exhaust
-
35420241335 Adjustment Screw M6 X 0.75Adjustment Screw M6 X 0.75
-
36420242910 Hex Nut M6Hex Nut M6
-
37420440567 Hex Distance Screw M6 X 30.5Hex Distance Screw M6 X 30.5
-
38420630260 GasketGasket
-
39420610390 Valve CoverValve Cover
-
40420927837 Spacer. Includes 40 to 41Spacer. Includes 40 to 41
-
41420650300 Thermostat GasketThermostat Gasket
-
42420222690 Thermostat CoverThermostat Cover
-
43420650255 Gasket RingGasket Ring
-
44420941950 Screw M5.5 X 13Screw M5.5 X 13
-
45420440237 Torx Flange Screw M6 X 25Torx Flange Screw M6 X 25
-
46707000246 Spark Plug, NGK DCP-R8ESpark Plug, NGK DCP-R8E
-
47420254370 Valve GuideValve Guide
-
48293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
49413711400 Loctite 648, 10 mlLoctite 648, 10 ml
