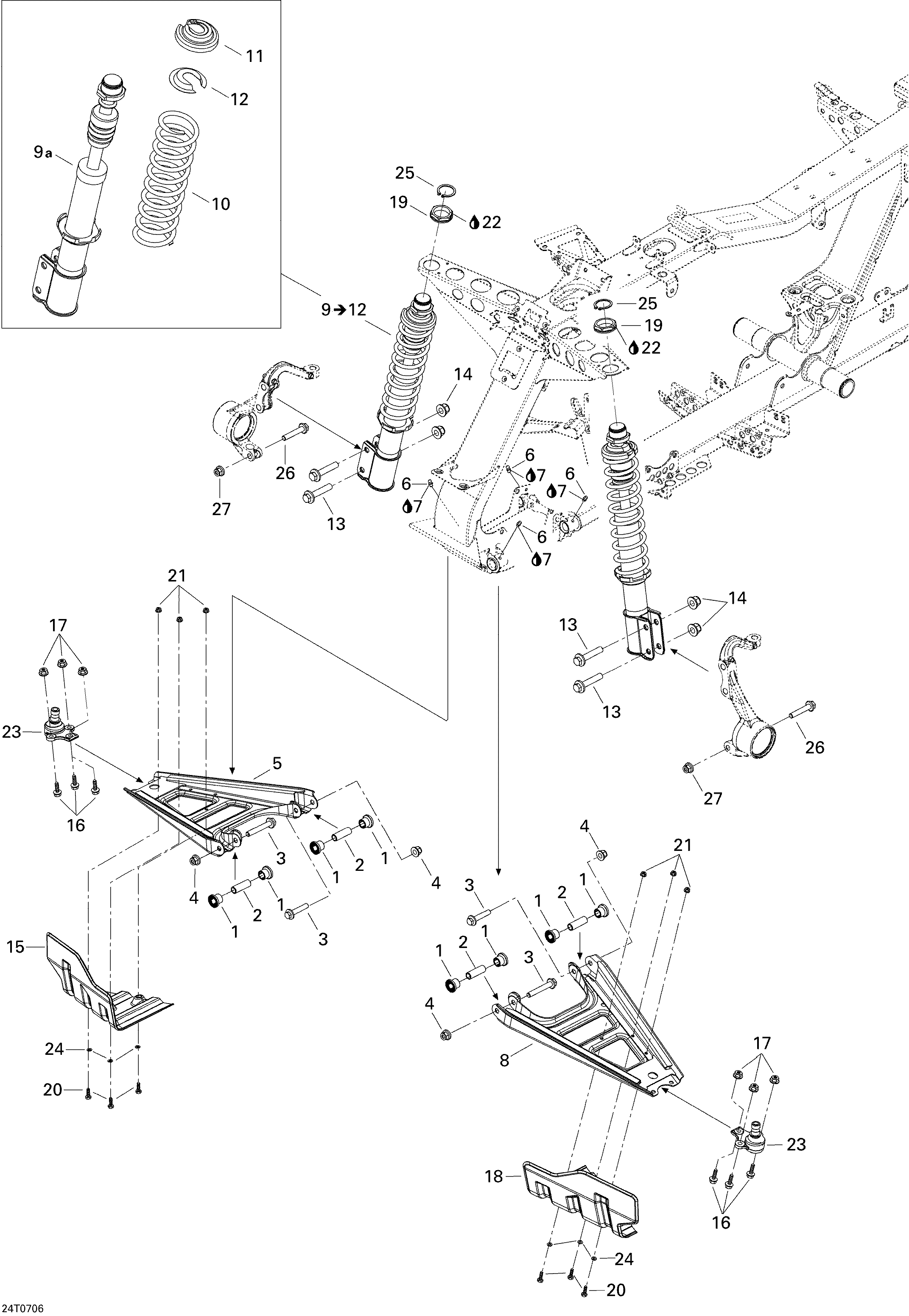

07- Front Suspension STD для BRP Outlander 500 STD 4 X 4 - 2007
-
№АртикулНазвание
-
1706200181 CushionCushion
-
2706200182 Inner BushingInner Bushing
-
3207607046 Hex Flanged Screw M10 X 70Hex Flanged Screw M10 X 70
-
4233201416 Hex Flanged Elastic Nut M10Hex Flanged Elastic Nut M10
-
5706200509 LH Suspension Arm, BlackLH Suspension Arm, Black
-
6408200700 Grease FittingGrease Fitting
-
7293550033 Synthetic Grease, 400 GSynthetic Grease, 400 G
-
8706200509 LH Suspension Arm, BlackLH Suspension Arm, Black
-
9706200593 Front Shock Ass'y. Includes 9 to 12Front Shock Ass'y. Includes 9 to 12
-
9a706200594 Front ShockFront Shock
-
10706200626 Front Spring. STDFront Spring. STD
-
11706200218 Spring StopperSpring Stopper
-
12706200219 CapCap
-
13207626046 Hex Flanged Screw M12 X 60Hex Flanged Screw M12 X 60
-
14233221414 Hex Flanged Elastic Nut M12Hex Flanged Elastic Nut M12
-
15706200214 RH ProtectorRH Protector
-
16207682544 Hex Flanged Screw M8 X 25Hex Flanged Screw M8 X 25
-
17233281414 Hex Flanged Elastic Nut M8Hex Flanged Elastic Nut M8
-
18706200213 LH ProtectorLH Protector
-
19706200443 NutNut
-
20207151644 Hex Screw M5 X 16Hex Screw M5 X 16
-
21233251414 Hex Flanged Elastic Nut M5Hex Flanged Elastic Nut M5
-
22293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
23706200444 Joint AttachmentJoint Attachment
-
24391301700 WasherWasher
-
25293370009 Circlip 32 mmCirclip 32 mm
-
26207604544 Hex Flanged Screw M10 X 45Hex Flanged Screw M10 X 45
-
27233201414 Hex Flanged Elastic Nut M10Hex Flanged Elastic Nut M10
