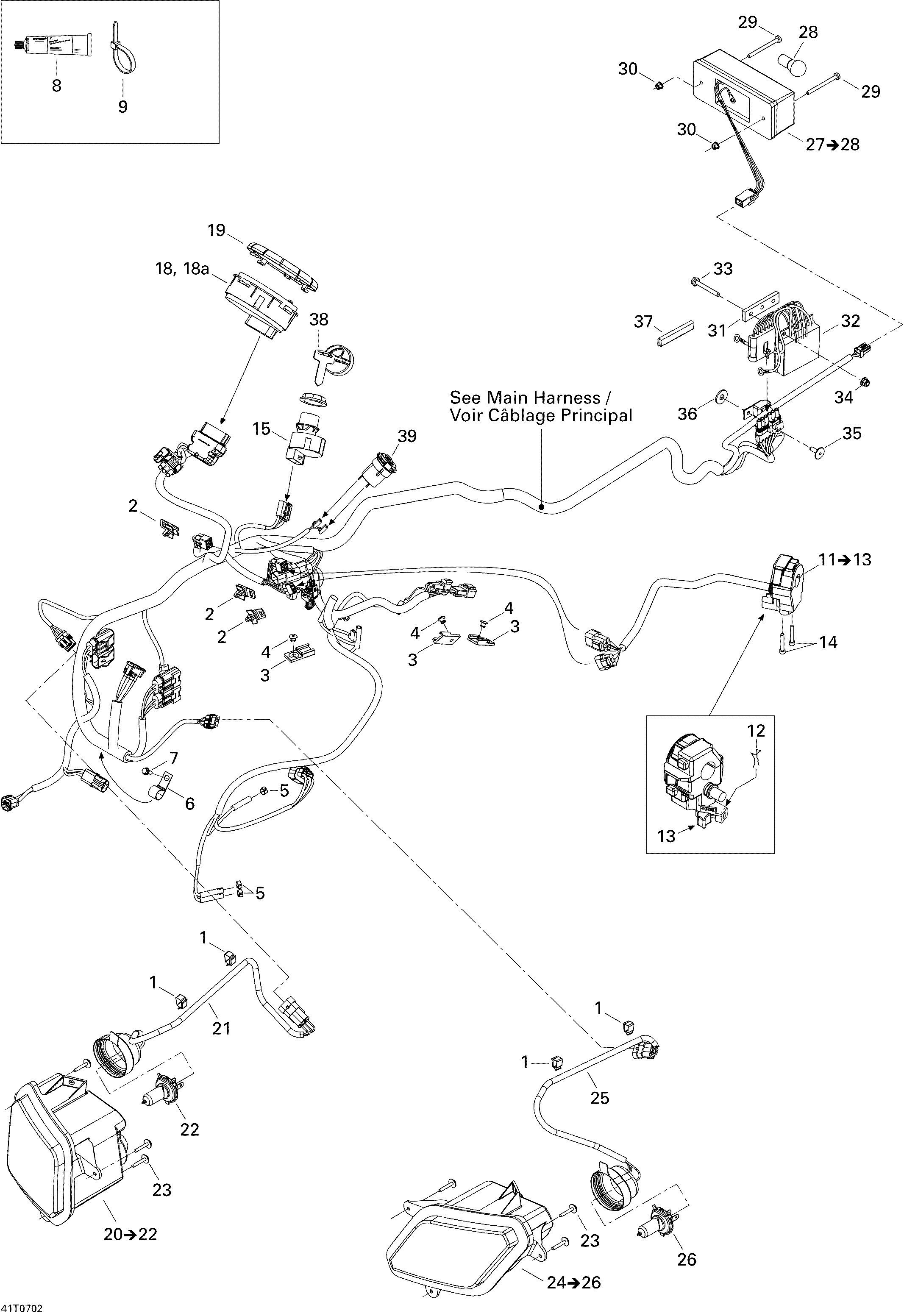

10- Electrical Accessories для BRP Outlander 400 STD 4 X 4 - 2007

  • №
    Артикул
    Название
  • 1
    414227300 Clip
    Clip
  • 2
    515175283 Housing Support
    Housing Support
  • 3
    270000141 Clip
    Clip
  • 4
    390402400 Pop Rivet 3/16''
    Pop Rivet 3/16''
  • 5
    293650100 Oetiker Clamp
    Oetiker Clamp
  • 6
    705600311 Clamp
    Clamp
  • 7
    210261680 Hex Flanged Screw M6 X 16
    Hex Flanged Screw M6 X 16
  • 8
    293550004 Dielectric Grease, 150 g
    Dielectric Grease, 150 g
  • 9
    293750002 Tie-Rap 130 mm
    Tie-Rap 130 mm
  • 9
    414115200 Tie-rap 180 mm
    Tie-rap 180 mm
  • 9
    293750008 Tie-Rap 350 mm
    Tie-Rap 350 mm
  • 9
    293750041 Tie-rap 627 mm
    Tie-rap 627 mm
  • 11
    710000311 Multi-Fonction Handle. Includes 11 to 13
    Multi-Fonction Handle. Includes 11 to 13
  • 12
    710000631 Clip
    Clip
  • 13
    710000632 Choke Lever
    Choke Lever
  • 14
    205053588 Socket Head Screw M5 X 35
    Socket Head Screw M5 X 35
  • 15
    710001029 Ignition Switch
    Ignition Switch
  • 18
    710000850 Speedometer
    Speedometer
  • 18a
    415128938 Replacement Lens, Speedometer
    Replacement Lens, Speedometer
  • 19
    710000353 Trim Ring
    Trim Ring
  • 20
    710000697 RH Headlamp. Includes 20 to 22
    RH Headlamp. Includes 20 to 22
  • 21
    710000828 Light Harness
    Light Harness
  • 22
    710000871 Bulb, 12 V / 35/35 W
    Bulb, 12 V / 35/35 W
  • 23
    250000101 Plastite Screw Type K-40, M4 X 25
    Plastite Screw Type K-40, M4 X 25
  • 24
    710000641 LH Headlamp. Includes 24 to 26
    LH Headlamp. Includes 24 to 26
  • 25
    710000828 Light Harness
    Light Harness
  • 26
    710000871 Bulb, 12 V / 35/35 W
    Bulb, 12 V / 35/35 W
  • 27
    710000711 Tail Light Housing Ass'y. Includes 27 to 28
    Tail Light Housing Ass'y. Includes 27 to 28
  • 28
    410504100 Tail Light Bulb
    Tail Light Bulb
  • 29
    208656091 Pan Head Phillips Screw M5 X 60
    Pan Head Phillips Screw M5 X 60
  • 30
    233251414 Hex Flanged Elastic Nut M5
    Hex Flanged Elastic Nut M5
  • 31
    710000912 Spacer
    Spacer
  • 32
    710000907 Voltage Regulator A'ssy
    Voltage Regulator A'ssy
  • 33
    207665044 Hex Flanged Screw M6 X 50
    Hex Flanged Screw M6 X 50
  • 34
    233261414 Hex Flanged Elastic Nut M6
    Hex Flanged Elastic Nut M6
  • 35
    390409600 Pop Rivet 3/16''
    Pop Rivet 3/16''
  • 36
    391301700 Washer
    Washer
  • 37
    271000110 Protection Trim
    Protection Trim
  • 38
    715900029 Blank Key
    Blank Key
  • 39
    861507200 Outlet Power Kit, 12 Volts
    Outlet Power Kit, 12 Volts
