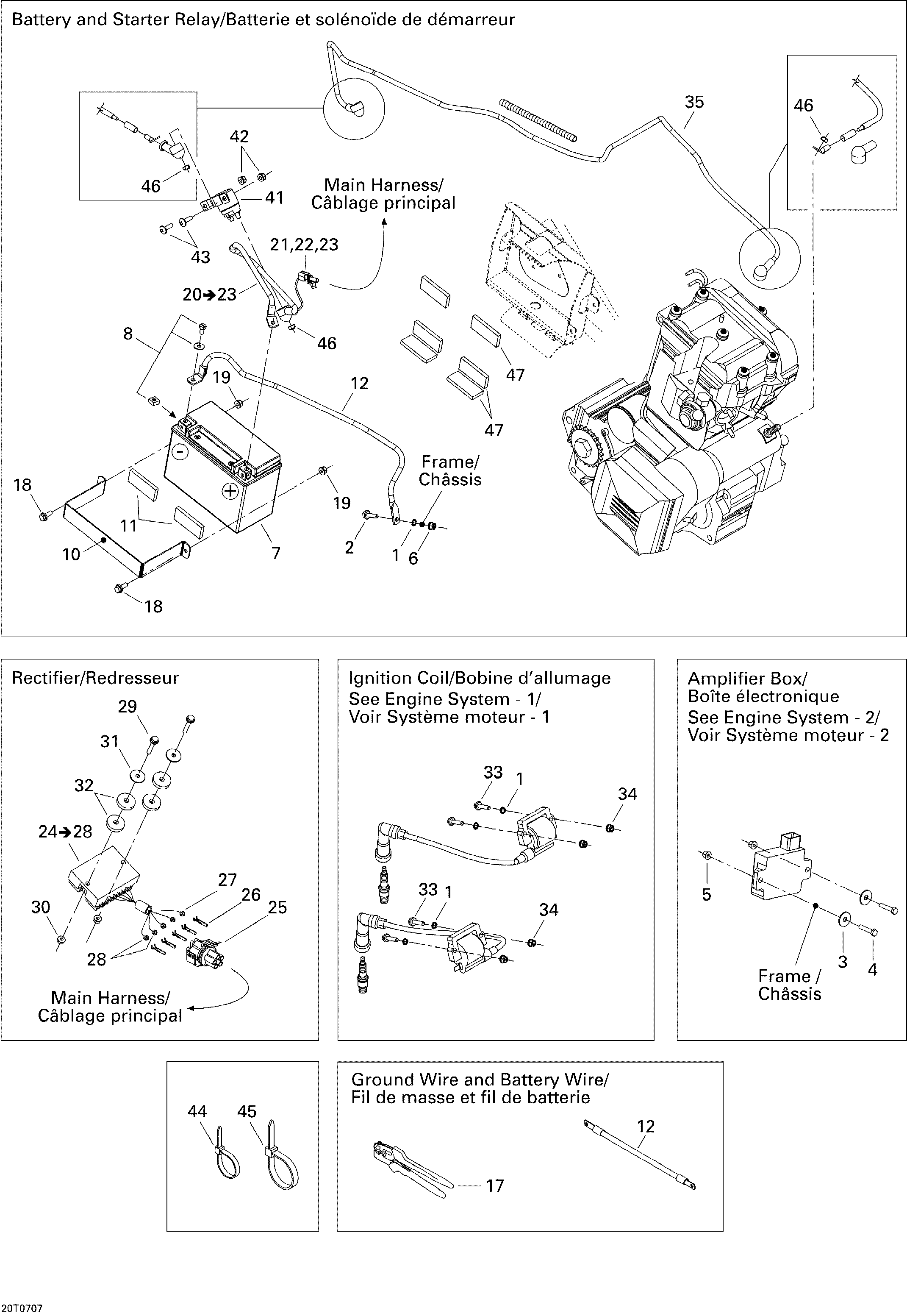

10- Electrical System для BRP DS 650 X - 2007

  • №
    Артикул
    Название
  • 1
    234461608 External Serrated Lock Washer 6 mm
    External Serrated Lock Washer 6 mm
  • 2
    207662044 Hex. Flanged Screw M6 X 20
    Hex. Flanged Screw M6 X 20
  • 3
    224061201 Flat Washer
    Flat Washer
  • 4
    207152544 Hex Screw M5 X 25
    Hex Screw M5 X 25
  • 5
    233251414 Hex Flanged Elastic Nut M5
    Hex Flanged Elastic Nut M5
  • 6
    233261414 Hex Flanged Elastic Nut M6
    Hex Flanged Elastic Nut M6
  • 7
    710000283 Battery, 13 Amperes
    Battery, 13 Amperes
  • 8
    295500849 Battery Fastener Kit
    Battery Fastener Kit
  • 10
    710000087 Rubber Strap, Black
    Rubber Strap, Black
  • 11
    293830083 Protector
    Protector
  • 12
    710000281 Battery Ground Cable
    Battery Ground Cable
  • 17
    529035730 Crimp Plier
    Crimp Plier
  • 18
    207661644 Hex Flanged Screw M6 X 16
    Hex Flanged Screw M6 X 16
  • 19
    233261414 Hex Flanged Elastic Nut M6
    Hex Flanged Elastic Nut M6
  • 20
    710000282 Battery Positive Cable. Includes 20 to 23
    Battery Positive Cable. Includes 20 to 23
  • 21
    278000219 Male Housing, 1 Circuit
    Male Housing, 1 Circuit
  • 22
    409007300 Female Terminal
    Female Terminal
  • 23
    710000048 Wire Seal
    Wire Seal
  • 24
    710000257 Rectifier Ass'y. Includes 24 to 28
    Rectifier Ass'y. Includes 24 to 28
  • 25
    710000106 Female Housing, 5 Circuit
    Female Housing, 5 Circuit
  • 26
    409007300 Female Terminal
    Female Terminal
  • 27
    278000218 Wire Seal
    Wire Seal
  • 28
    710000048 Wire Seal
    Wire Seal
  • 29
    207663544 Hex Flanged Screw M6 X 35
    Hex Flanged Screw M6 X 35
  • 30
    233261414 Hex Flanged Elastic Nut M6
    Hex Flanged Elastic Nut M6
  • 31
    224060251 Washer
    Washer
  • 32
    250200002 Rubber Washer
    Rubber Washer
  • 33
    207662544 Hex Flanged Screw M6 X 25
    Hex Flanged Screw M6 X 25
  • 34
    233261414 Hex Flanged Elastic Nut M6
    Hex Flanged Elastic Nut M6
  • 35
    710000069 Positive Cable. Includes 35 to 37
    Positive Cable. Includes 35 to 37
  • 37
    710000483 Shrink Tubing
    Shrink Tubing
  • 41
    515176011 Starter Relay
    Starter Relay
  • 42
    233261414 Hex Flanged Elastic Nut M6
    Hex Flanged Elastic Nut M6
  • 43
    211000123 Phillips Screw M6 X 20
    Phillips Screw M6 X 20
  • 44
    414115200 Tie-rap 180 mm
    Tie-rap 180 mm
  • 45
    293750008 Tie-Rap 350 mm
    Tie-Rap 350 mm
  • 46
    232561414 Elastic Stop Nut M6
    Elastic Stop Nut M6
  • 47
    293830083 Protector
    Protector
