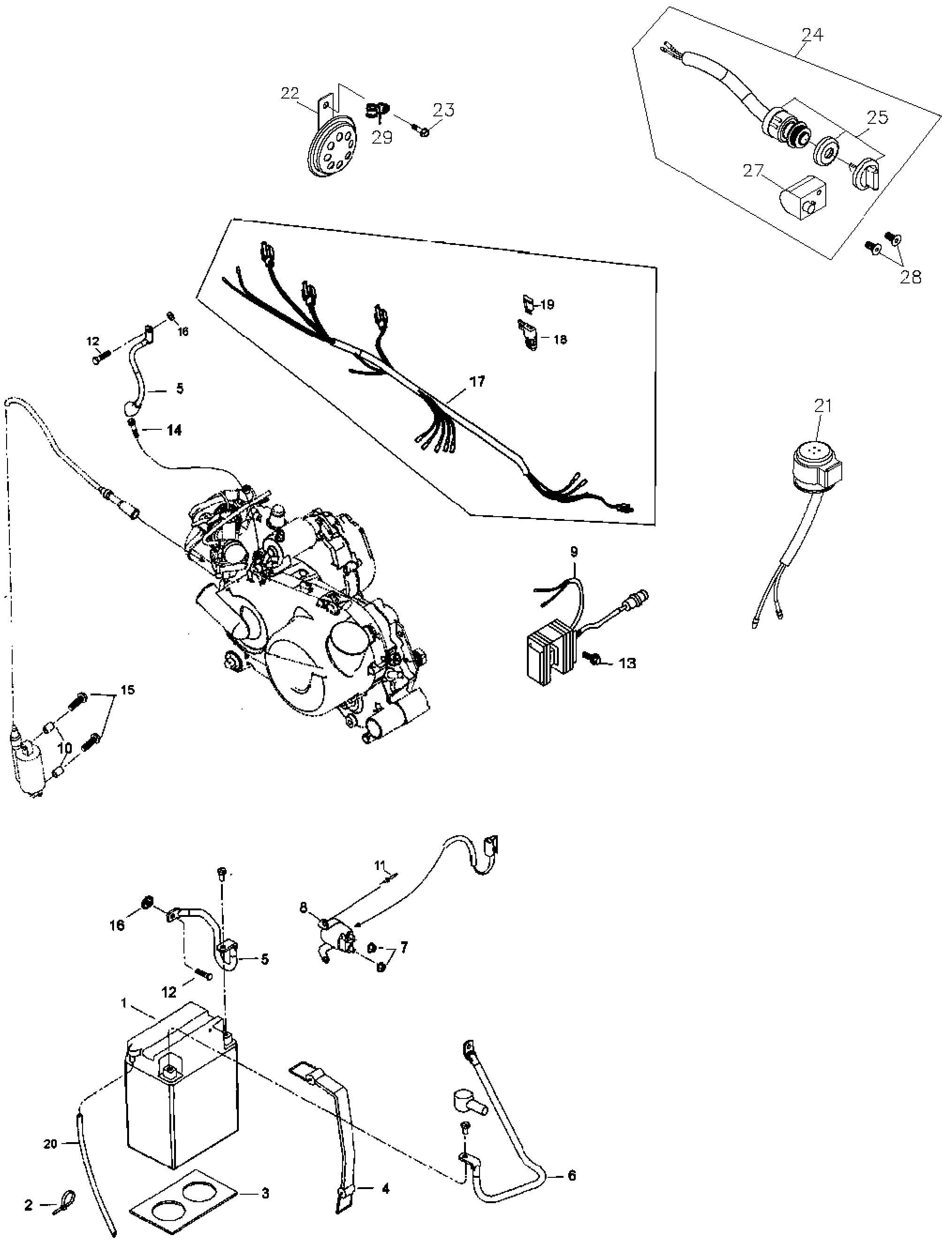

10- Battery And Electrical Accessories EUROPE для BRP Rally 175 - 2006
-
№АртикулНазвание
-
1715000194 Battery, 13 AmperesBattery, 13 Amperes
-
2414115200 Tie-rap 180 mmTie-rap 180 mm
-
3710000241 Rubber ProtectorRubber Protector
-
4515176044 Battery StrapBattery Strap
-
5A32103179000 Ground CableGround Cable
-
6A32101179000 Positive CablePositive Cable
-
7233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
8710000252 Starter RelayStarter Relay
-
9A31600179000 Regulator-voltRegulator-volt
-
10A30512179000 SpacerSpacer
-
11A90662118000 Pop RivetPop Rivet
-
12A9200306015 Socket Screw M6 X 15Socket Screw M6 X 15
-
13210262080 Hex Forming Screw M6 X 20Hex Forming Screw M6 X 20
-
14205062044 Socket Head Screw M6 X 20Socket Head Screw M6 X 20
-
15A9200306035 Socket Screw M6 X 35Socket Screw M6 X 35
-
16A941150611006 Washer-lock SerratedWasher-lock Serrated
-
17A3210017900A Harness Ass'yHarness Ass'y
-
18A98201179000 Holder-fuseHolder-fuse
-
19278000343 Fuse, 15 AmperesFuse, 15 Amperes
-
21A3830110700C RelayRelay
-
22A38110197001 HornHorn
-
23A960000601010G Screw-hex.flangeScrew-hex.flange
-
24A35010179000 Key SetKey Set
-
25A3510017900A Ignition SwitchIgnition Switch
-
27A53600197000 Steering Lock HandlSteering Lock Handl
-
28A9390206012 Flat Head Phillips BoltFlat Head Phillips Bolt
-
29A1135112000A ClamperClamper
