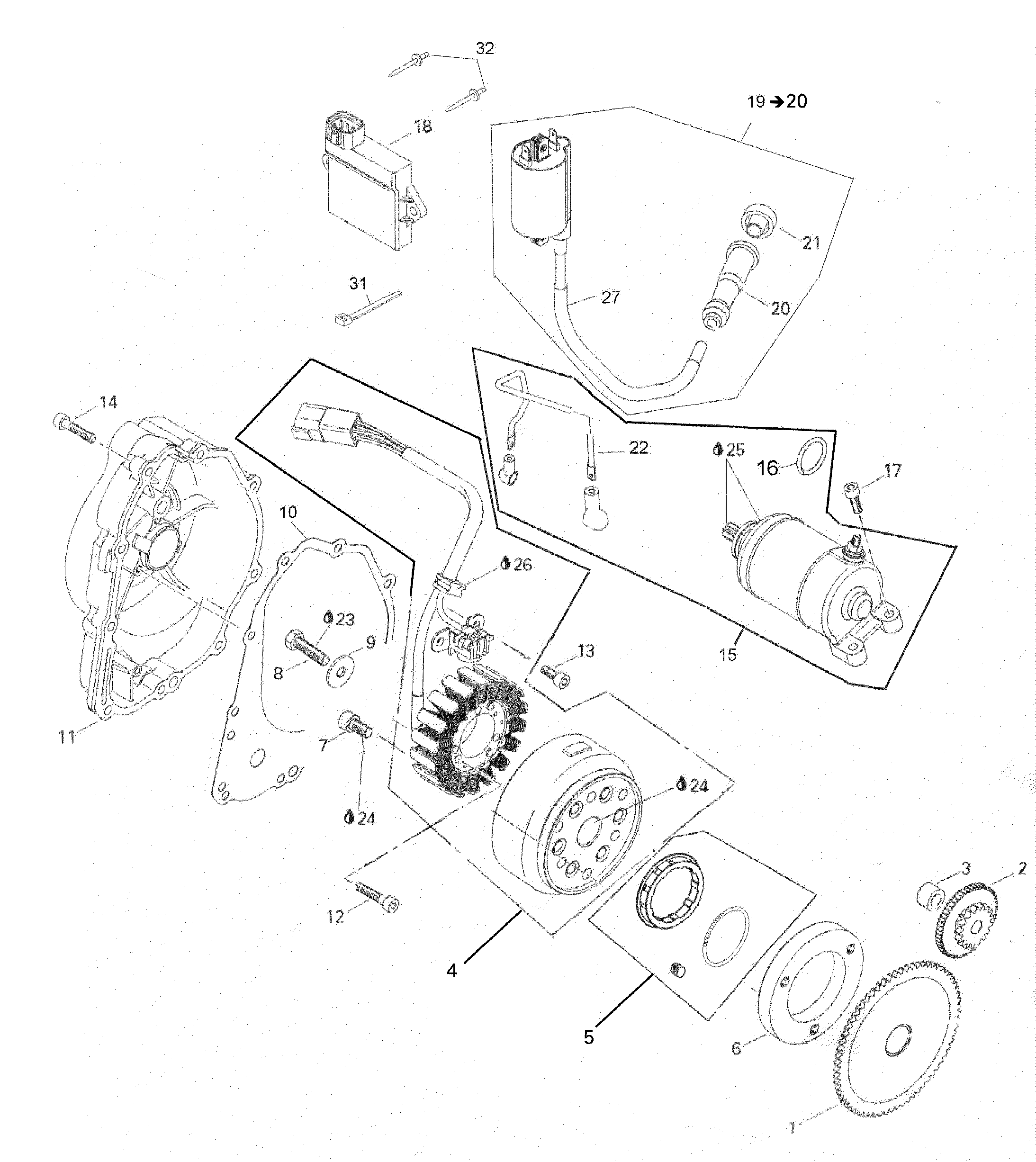

03- Magneto для BRP Rally 175 - 2006
-
№АртикулНазвание
-
1420635150 Free Wheel Gear 67 Ass'yFree Wheel Gear 67 Ass'y
-
2A28422179000 Idle Gear 54/17TIdle Gear 54/17T
-
3A96401101711 Distance SleeveDistance Sleeve
-
4A31100179001 AC GeneratorAC Generator
-
5420259495 Sprag ClutchSprag Clutch
-
6420259480 Sprag Clutch HousingSprag Clutch Housing
-
7A9100008018CL Socket Screw M8x18Socket Screw M8x18
-
8420940485 Screw M8 x 30Screw M8 x 30
-
9A22145179000 WasherWasher
-
10A11393179000 GasketGasket
-
11A11330179000 Ignition CoverIgnition Cover
-
12205063044 Socket Head Screw M6 X 30Socket Head Screw M6 X 30
-
13420241236 Socket Screw M6 x 16Socket Screw M6 x 16
-
14205063044 Socket Head Screw M6 X 30Socket Head Screw M6 X 30
-
15A31200179000 Electric StarterElectric Starter
-
16A91324179000 O-RingO-Ring
-
17205062044 Socket Head Screw M6 X 20Socket Head Screw M6 X 20
-
18A30410179000 Electronic ModuleElectronic Module
-
19A30500179000 Ignition Coil Ass'y. Includes 19 To 20 and 27Ignition Coil Ass'y. Includes 19 To 20 and 27
-
20A30700179000 Spark Plug Connector CapSpark Plug Connector Cap
-
21A30605179000 Rubber GrommetRubber Grommet
-
22710000232 Positive CablePositive Cable
-
23293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
24413711400 Loctite 648, 10 mlLoctite 648, 10 ml
-
25293800070 Loctite 767, Antiseize Lubricant, 8 OzLoctite 767, Antiseize Lubricant, 8 Oz
-
26296000309 Sealant Silicone, ClearSealant Silicone, Clear
-
27A30510179000 Ignition CoilIgnition Coil
-
31A90669179000 Tie RapTie Rap
-
32A90662118000 Pop RivetPop Rivet
