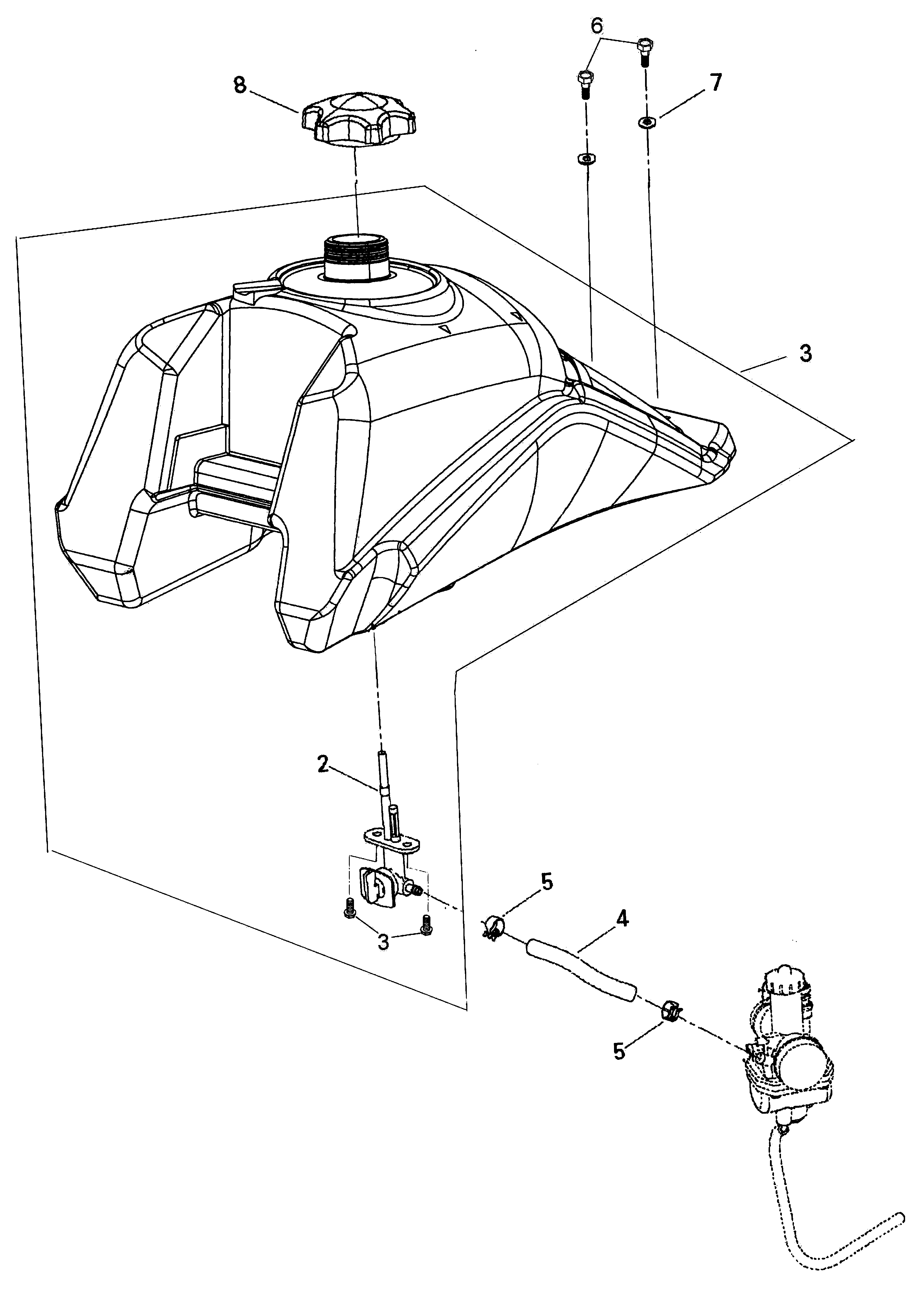

02- Fuel System EUROPE для BRP Rally 175 - 2006
-
№АртикулНазвание
-
1A1750017900A Fuel TankFuel Tank
-
2709000082 Fuel ValveFuel Valve
-
3A960000601408C Screw-hex.flangeScrew-hex.flange
-
4415079800 Hose 1/4''Hose 1/4''
-
5414415200 Universal Spring ClampUniversal Spring Clamp
-
6A9200306020 Hex. Screw M6 X 20Hex. Screw M6 X 20
-
7250200029 Washer M6Washer M6
-
8A17620179000 Cap-fuelCap-fuel
Все узлы модели:
- 01- Cooling System
- 01- Crankcase
- 01- Crankshaft And Pistons
- 01- Crankshaft, Piston And Cylinder
- 01- Engine And Engine Support
- 01- Exhaust System
- 01- Exhaust System Europe
- 02- Air Intake Silencer
- 02- Carburetor
- 02- Fuel System
- • 02- Fuel System EUROPE
- 03- Magneto
- 05- Gear Shift
- 05- Pulley System
- 06- Hydraulic Brake
- 06- Hydraulic Brakes Europe
- 07- Drive System, Front
- 07- Drive System, Front EUROPE
- 07- Front Suspension
- 07- Steering System
- 07- Steering System EUROPE
- 08- Drive System, Rear
- 08- Drive System, Rear EUROPE
- 08- Rear Suspension
- 09- Body And Accessories
- 09- Body And Accessories Europe
- 09- Decals
- 09- Decals EUROPE
- 09- Frame And Luggage Racks
- 09- Frame And Luggage Racks EUROPE
- 09- Seat
- 09- Tools
- 09- Tools EUROPE
- 10- Battery And Electrical Accessories
- 10- Battery And Electrical Accessories EUROPE
- 10- Electrical Accessories
- 10- Electrical Accessories EUROPE
