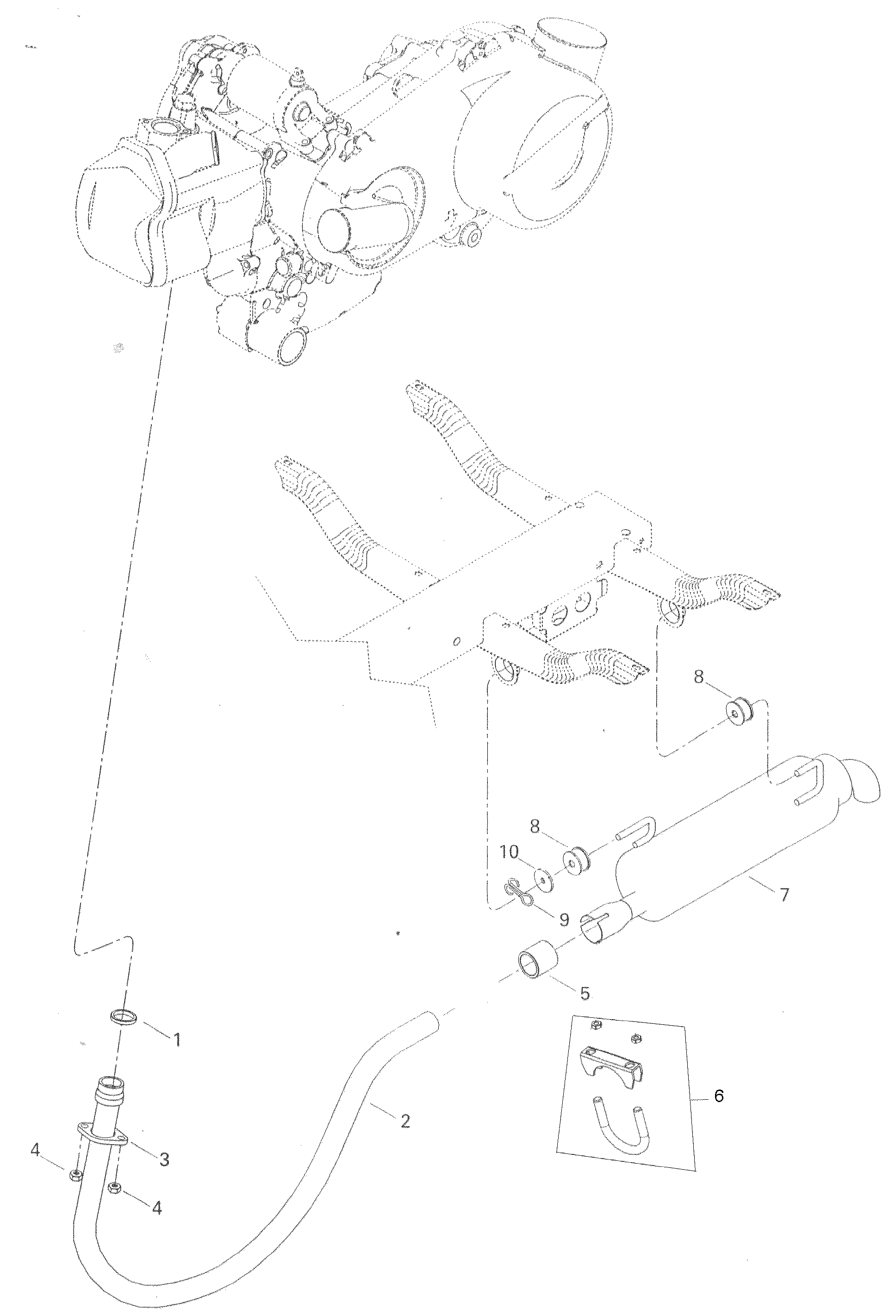

01- Exhaust System для BRP Rally 175 - 2006
-
№АртикулНазвание
-
1A18291179000 Pipe GasketPipe Gasket
-
2A18311179000 Tuned PipeTuned Pipe
-
3A18307179000 Seal RingSeal Ring
-
4A9405008000 Hex Flanged Nut M8Hex Flanged Nut M8
-
5A18308179000 Pipe GasketPipe Gasket
-
6A18302179000 '' U'' Clamp'' U'' Clamp
-
7A18321179000 Tuned Pipe Ass'yTuned Pipe Ass'y
-
8A18305179000 Anti-Vibration RubberAnti-Vibration Rubber
-
9A9420120250 Cotter PinCotter Pin
-
10A941050930012 WasherWasher
