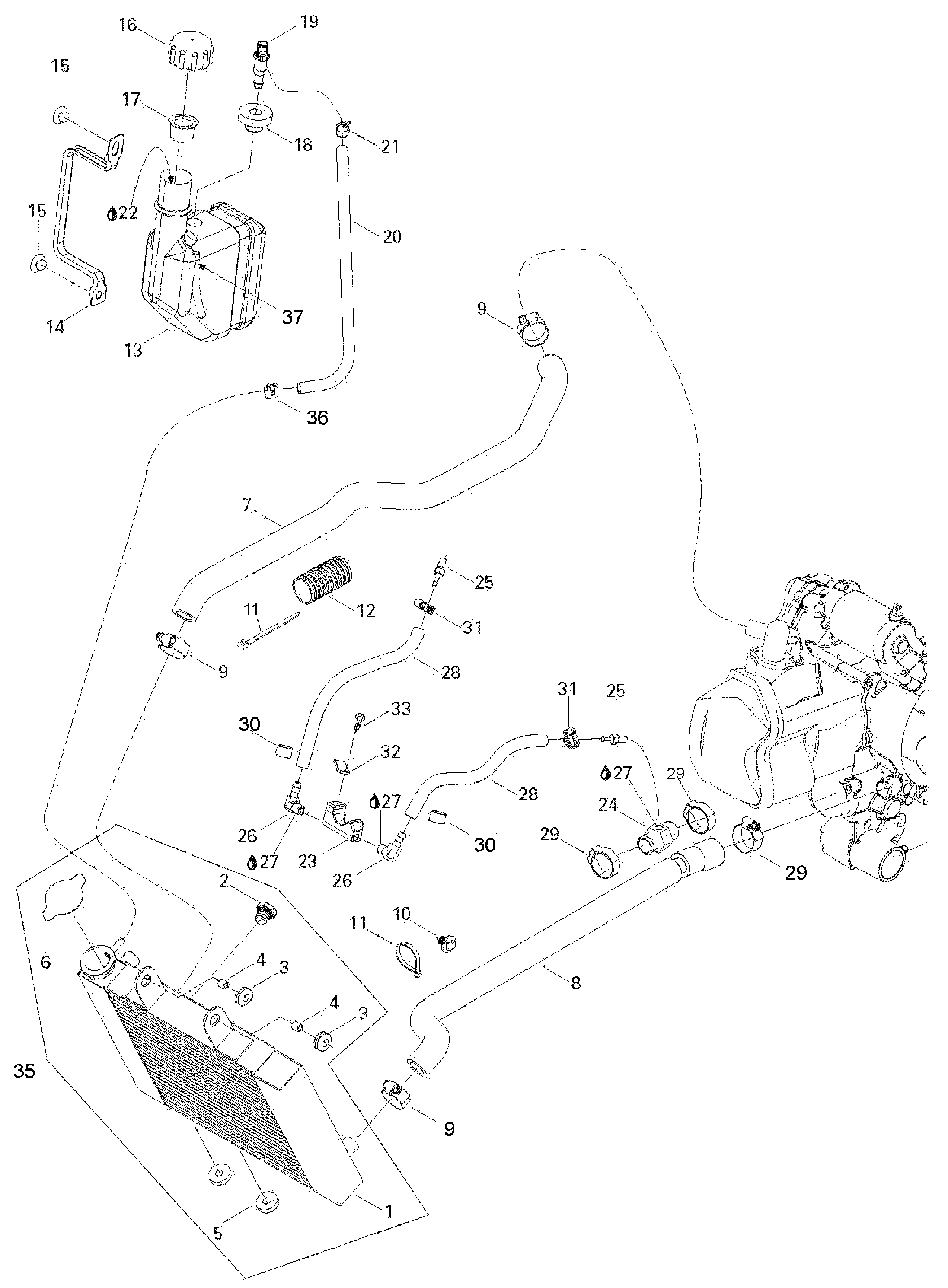

01- Cooling System для BRP Rally 175 - 2006
-
№АртикулНазвание
-
1A19100179000 RadiatorRadiator
-
2250500006 PlugPlug
-
3705005156 Oblong WasherOblong Washer
-
4293900045 BushingBushing
-
5570135100 GrommetGrommet
-
6A19110179000 Pressure CapPressure Cap
-
7709200066 Inlet Radiator HoseInlet Radiator Hose
-
8709200067 Outlet Radiator HoseOutlet Radiator Hose
-
9293650051 Tridon Gear ClampTridon Gear Clamp
-
10293730018 Mount DartMount Dart
-
11414115200 Tie-RapTie-Rap
-
12709200031 Protection ShieldProtection Shield
-
13A19200179000 Coolant TankCoolant Tank
-
14709200080 Radiator AnchorRadiator Anchor
-
15390409600 Pop-rivet 3/16''Pop-rivet 3/16''
-
16A19210179000 Tank CapTank Cap
-
17709200034 Protection CapProtection Cap
-
18570135100 GrommetGrommet
-
19414580600 Elbow Male ConnectorElbow Male Connector
-
20415110000 Polyurethane Hose 5.2 mmPolyurethane Hose 5.2 mm
-
21414554800 Universal Spring ClampUniversal Spring Clamp
-
23709200096 Block HeaterBlock Heater
-
24709200097 AdapterAdapter
-
25293710037 Male ConnectorMale Connector
-
26293700016 Elbow FittingElbow Fitting
-
27293800013 Loctite, Pipe Sealant, 250 mlLoctite, Pipe Sealant, 250 ml
-
28415079800 Hose 1/4''Hose 1/4''
-
29293650141 ClampClamp
-
30293650125 Oetiker ClampOetiker Clamp
-
31293650170 Hose ClampHose Clamp
-
32709200116 LockLock
-
33208640860 Pan Head Phillips Screw M4 X 8Pan Head Phillips Screw M4 X 8
-
36414554800 Universal Spring ClampUniversal Spring Clamp
-
37415110000 Polyurethane Hose 5.2 mmPolyurethane Hose 5.2 mm
-
38A9451430000 Gemi Clamp. Not IllustratedGemi Clamp. Not Illustrated
-
39A9451425000 Gemi Clamp. Not IllustratedGemi Clamp. Not Illustrated
