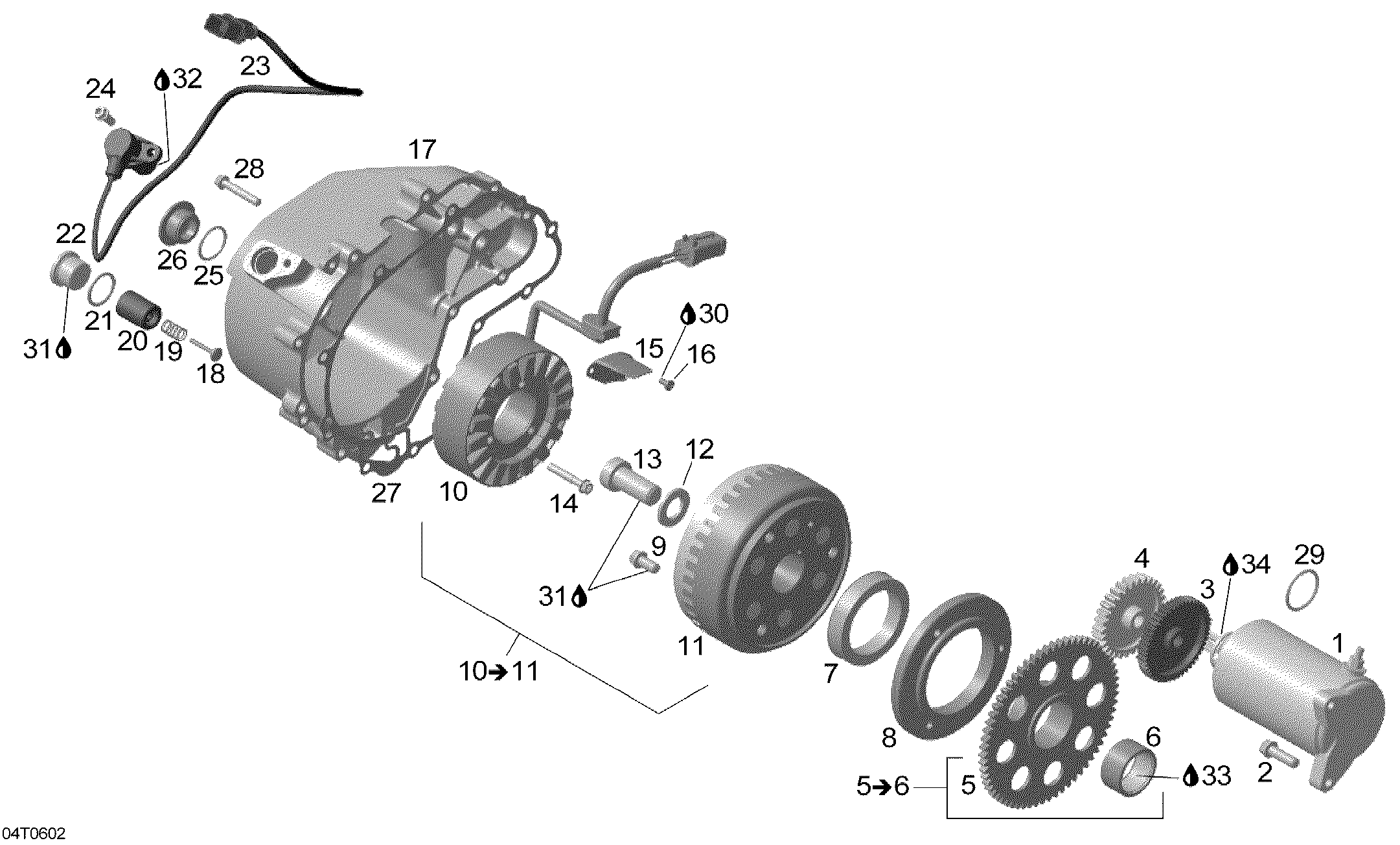

03- Magneto для BRP Outlander MAX 800 STD 4 X 4 - 2006

  • №
    Артикул
    Название
  • 1
    420684560 Starter Ass'y
    Starter Ass'y
  • 2
    420440372 Flanged Torx Screw M8 X 25
    Flanged Torx Screw M8 X 25
  • 3
    420634740 Double Gear
    Double Gear
  • 4
    420634600 Intermediate Gear
    Intermediate Gear
  • 5
    420434235 Free Wheel Gear Ass'y. Includes 5 to 6
    Free Wheel Gear Ass'y. Includes 5 to 6
  • 7
    420659112 Sprag Clutch
    Sprag Clutch
  • 8
    420659260 Sprag Clutch Housing
    Sprag Clutch Housing
  • 9
    420440852 Flanged Torx Screw M8 X 16
    Flanged Torx Screw M8 X 16
  • 10
    420296907 Stator Plate
    Stator Plate
  • 11
    420296905 Flywheel
    Flywheel
  • 12
    420627270 Shim
    Shim
  • 13
    420241545 Socket Head Screw M16 X 35
    Socket Head Screw M16 X 35
  • 14
    420440277 Flanged Torx Screw M6 X 35
    Flanged Torx Screw M6 X 35
  • 15
    420251880 Cable Inner Cover
    Cable Inner Cover
  • 16
    420240195 Tapping Screw M4 X 8
    Tapping Screw M4 X 8
  • 17
    420611130 Cover
    Cover
  • 18
    420656370 Pressure Relief Valve
    Pressure Relief Valve
  • 19
    420939480 Compression Spring
    Compression Spring
  • 20
    420256486 Housing Valve
    Housing Valve
  • 21
    420650465 Gasket Ring
    Gasket Ring
  • 22
    420640270 Screw Plug
    Screw Plug
  • 23
    420966570 Crank Position Trigger
    Crank Position Trigger
  • 24
    420440167 Flanged Torx Screw M6 X 16
    Flanged Torx Screw M6 X 16
  • 25
    420430782 O-ring
    O-ring
  • 26
    420241630 Screw Plug
    Screw Plug
  • 27
    420651200 Gasket
    Gasket
  • 28
    420440277 Flanged Torx Screw M6 X 35
    Flanged Torx Screw M6 X 35
  • 29
    420250140 O-Ring
    O-Ring
  • 30
    293800060 Loctite 243, 10 ml
    Loctite 243, 10 ml
  • 31
    413711400 Loctite 648, 10 ml
    Loctite 648, 10 ml
  • 32
    293550030 Grease, Super Lube
    Grease, Super Lube
  • 33
    293600039 Engine Oil 4 Strokes, 5w40, 12 X 1 Liter
    Engine Oil 4 Strokes, 5w40, 12 X 1 Liter
  • 34
    293800070 Loctite 767, Antiseize Lubricant, 8 Oz
    Loctite 767, Antiseize Lubricant, 8 Oz
