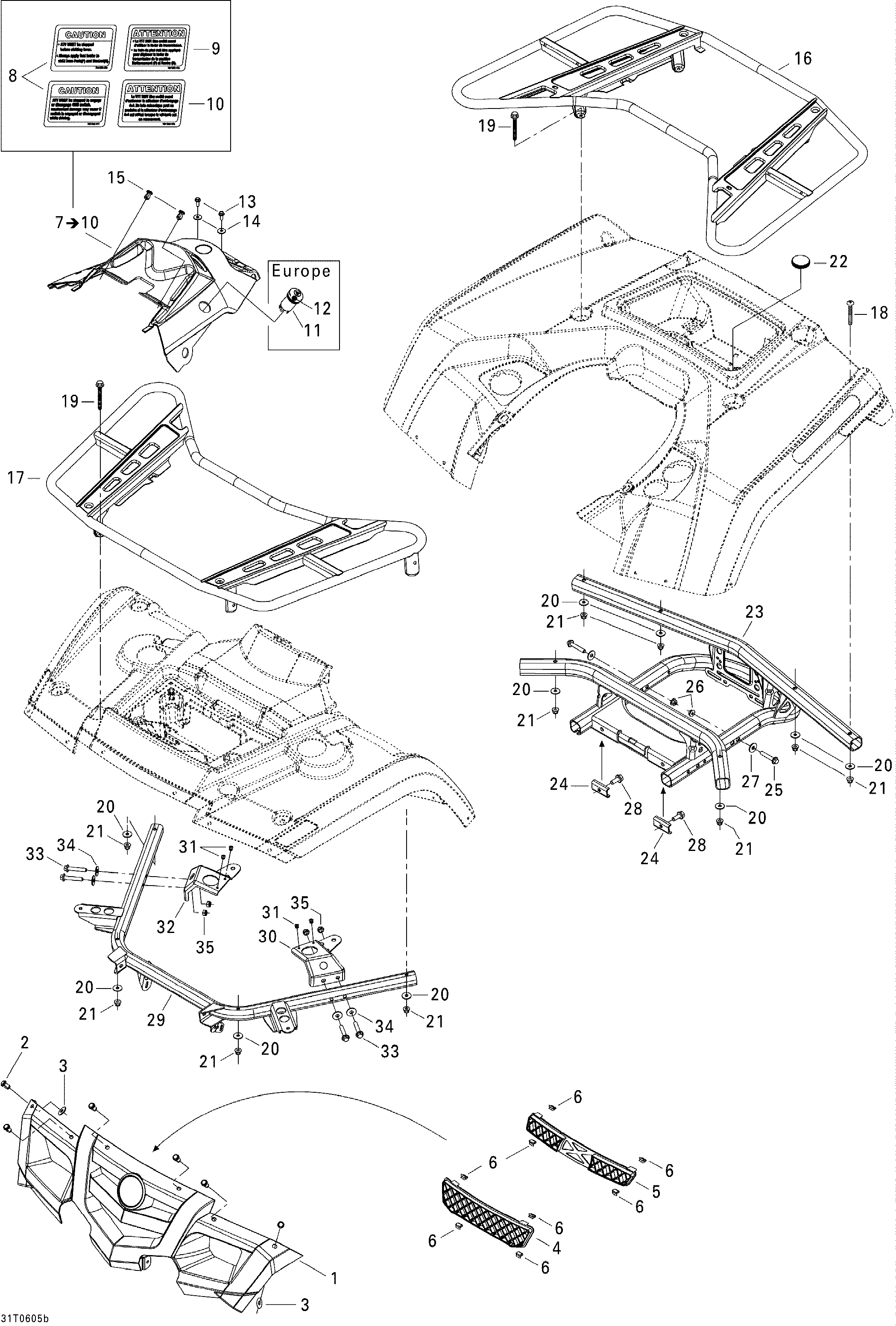

09- Body And Accessories для BRP Outlander 400 XT 4 X 4 - 2006
-
№АртикулНазвание
-
1705001313 Front Fascia Red. RedFront Fascia Red. Red
-
1705001991 Front Fascia Yellow. YellowFront Fascia Yellow. Yellow
-
1705001992 Front Fascia, Laurentian Green. GreenFront Fascia, Laurentian Green. Green
-
1705002012 Front Fascia Camo. CamoFront Fascia Camo. Camo
-
2293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
3234082410 Flat Washer 8 mmFlat Washer 8 mm
-
4705001679 Lower GrillLower Grill
-
5705001901 Upper GrillUpper Grill
-
6517302674 ClipClip
-
7703500266 Console, Viper Red. Red / Includes 7 to 10Console, Viper Red. Red / Includes 7 to 10
-
7703500267 Console, Laurentian Green. Green / Includes 7 to 10Console, Laurentian Green. Green / Includes 7 to 10
-
7703500330 Console, Yellow. Yellow / Includes 7 to 10Console, Yellow. Yellow / Includes 7 to 10
-
7703500669 Dash-board, Camo. Camo / Includes 7 to 10Dash-board, Camo. Camo / Includes 7 to 10
-
8704900434 Warning Label Ass'yWarning Label Ass'y
-
9704900475 Caution Label, Shifting LeverCaution Label, Shifting Lever
-
10704900476 Caution Label, 4wd SwitchCaution Label, 4wd Switch
-
11710000367 Emergency Switch. EuropeEmergency Switch. Europe
-
12710000661 Emergency Switch Light. EuropeEmergency Switch Light. Europe
-
13210261680 Hex Flanged Screw M6 X 16Hex Flanged Screw M6 X 16
-
14391302000 Flat WasherFlat Washer
-
15293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
16705001780 Rear Luggage RackRear Luggage Rack
-
17705001769 Front Luggage RackFront Luggage Rack
-
18250000239 Torx Truss Screw M6 X 50Torx Truss Screw M6 X 50
-
19207665044 Hex Flanged Screw M6 X 50Hex Flanged Screw M6 X 50
-
20224061201 Flat WasherFlat Washer
-
21233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
22414859400 CapCap
-
23705001459 Rear Support. Red / Green / YellowRear Support. Red / Green / Yellow
-
23705002004 Rear Support. CamoRear Support. Camo
-
24705001180 U ReinforcementU Reinforcement
-
25207685044 Hex Flanged Screw M8 X 50Hex Flanged Screw M8 X 50
-
26233281414 Hex Flanged Elastic Nut M8Hex Flanged Elastic Nut M8
-
27234082410 Flat Washer 8 mmFlat Washer 8 mm
-
28207582044 Hex Flanged Screw M8 X 20, Scotch GripHex Flanged Screw M8 X 20, Scotch Grip
-
29705001455 Front SupportFront Support
-
30705000692 LH Anchor PlateLH Anchor Plate
-
31390402300 Pop Rivet 3/16''Pop Rivet 3/16''
-
32705000693 RH Anchor PlateRH Anchor Plate
-
33207684544 Hex Flanged Screw M8 X 45Hex Flanged Screw M8 X 45
-
34234082410 Flat Washer 8 mmFlat Washer 8 mm
-
35232581414 Hex Elastic Nut M8Hex Elastic Nut M8
