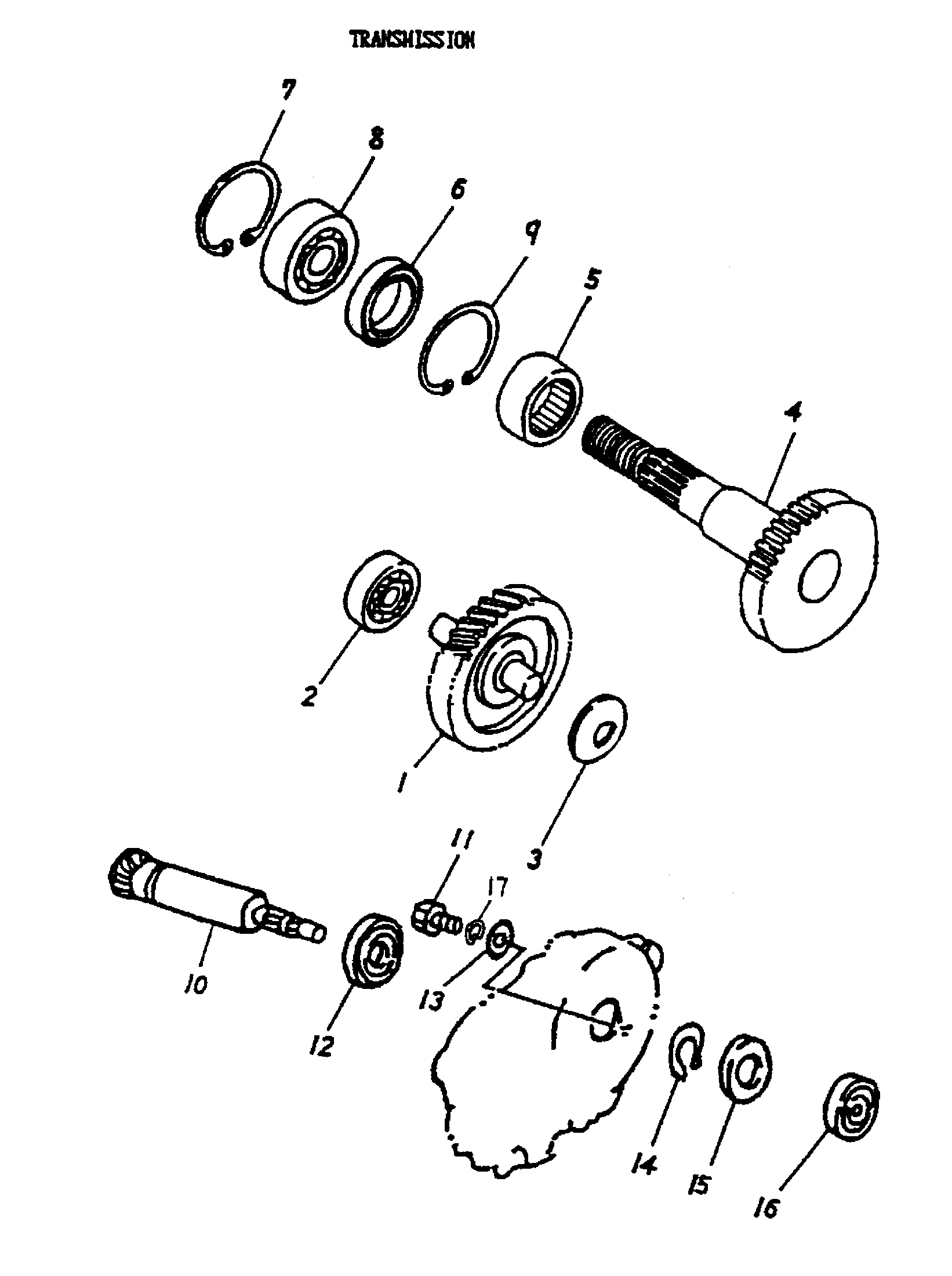

05- Transmission для BRP Mini DS 50 2-strokes - 2006

  • №
    Артикул
    Название
  • 1
    A23420116000 Main Axle Comp
    Main Axle Comp
  • 2
    A9610062010 Radial Ball Bearing (6201)
    Radial Ball Bearing (6201)
  • 3
    A941011229016 Plain Washer (12.2 x 29 x 1.6)
    Plain Washer (12.2 x 29 x 1.6)
  • 4
    A23430116000 Drive Axle (36T)
    Drive Axle (36T)
  • 5
    A96200253315 Needle Bearing (HMK2515)
    Needle Bearing (HMK2515)
  • 6
    A9650025356 Oil Seal (25 x 35 x 6)
    Oil Seal (25 x 35 x 6)
  • 7
    A945124300R Internal Circlip (RTW-43)
    Internal Circlip (RTW-43)
  • 8
    A961006004U Radial Ball Bearing (6004LU)
    Radial Ball Bearing (6004LU)
  • 9
    A945123400R Internal Circlip (RTW-34)
    Internal Circlip (RTW-34)
  • 10
    A23411116000 Primary Drive Gear (13T)
    Primary Drive Gear (13T)
  • 11
    A920000601010 Hex. Bolt M6 x 10
    Hex. Bolt M6 x 10
  • 12
    A9610060030 Radial Ball Bearing (6003)
    Radial Ball Bearing (6003)
  • 13
    A941010620005 Plain Washer (6 x 20 x 0.5)
    Plain Washer (6 x 20 x 0.5)
  • 14
    A945111700S External Circlip
    External Circlip
  • 15
    A9650017285 Oil Seal (17 x 28 x 5.5)
    Oil Seal (17 x 28 x 5.5)
  • 16
    A96100638RD Radial Ball Bearing (638RD)
    Radial Ball Bearing (638RD)
  • 17
    A941110612015 Spring Washer (6 x 12 x 1.5)
    Spring Washer (6 x 12 x 1.5)
