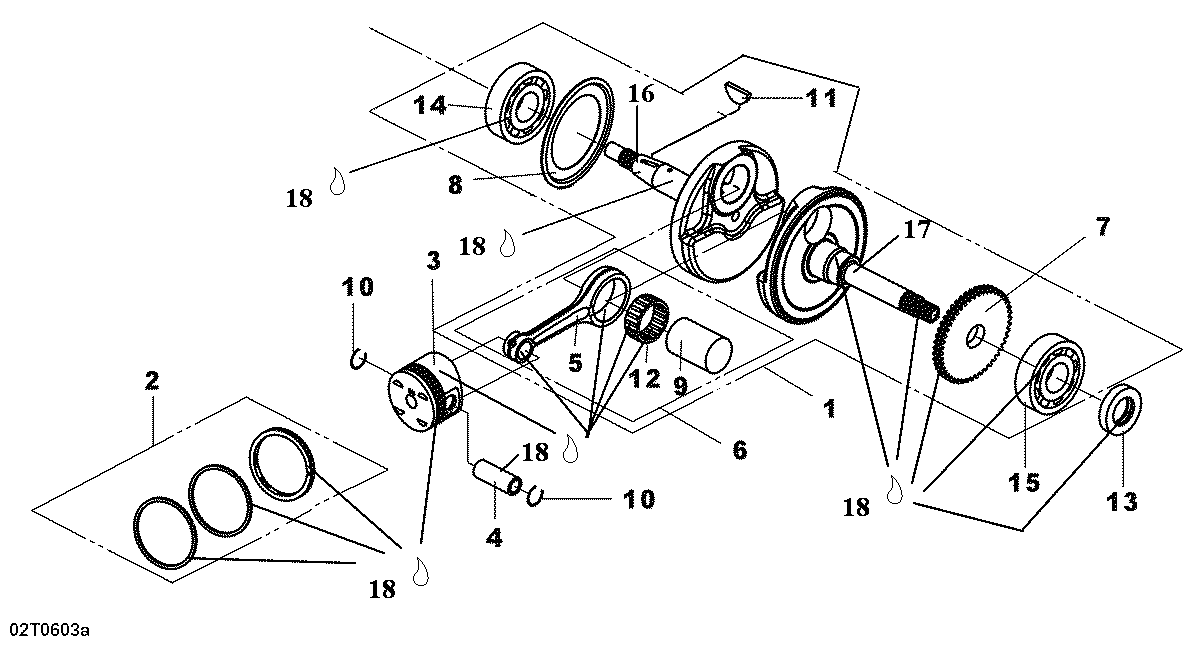

01- Crankshaft And Pistons для BRP DS 250, CE - 2006
-
№АртикулНазвание
-
1S13000RB1000 Crankshaft Ass'yCrankshaft Ass'y
-
2S13010HMA000 Piston Ring SetPiston Ring Set
-
3S13101RB1000 PistonPiston
-
4S13111HMA000 Piston PinPiston Pin
-
10S90601HMA000 Clip Piston PinClip Piston Pin
-
11S90701HB6010 Semicycle KeySemicycle Key
-
12S91004RB1000 BearingBearing
-
13S91201HMA300 Oil SealOil Seal
-
14S961006207010 Ball BearingBall Bearing
-
15S91002RB1000 Radial Ball BearingRadial Ball Bearing
