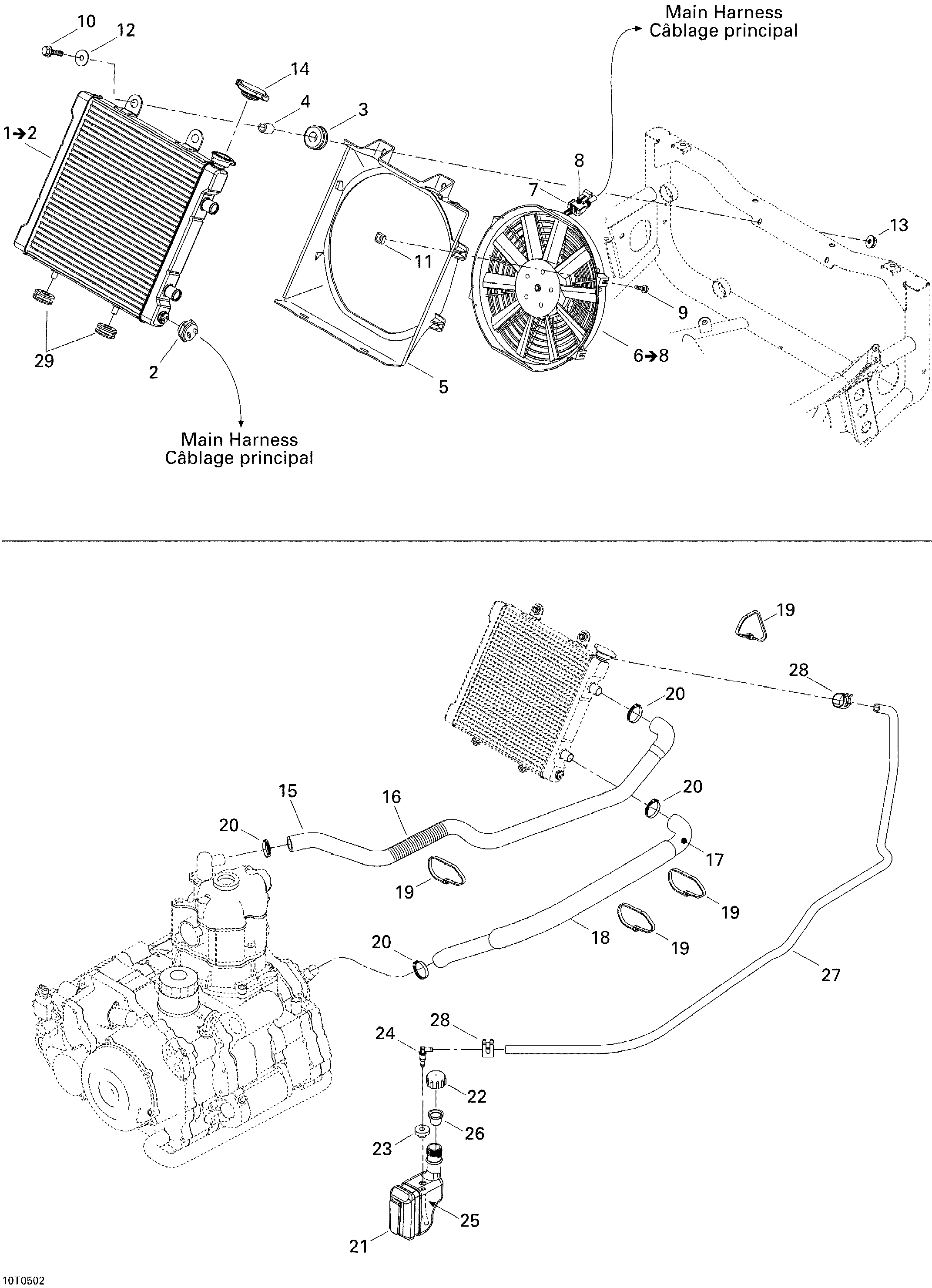

01- Liquid Cooling для BRP Traxter XT - 2005
-
№АртикулНазвание
-
1709200109 Radiator Ass'Y. Includes 1 to 2Radiator Ass'Y. Includes 1 to 2
-
2709200089 Temperature SensorTemperature Sensor
-
3293720053 GrommetGrommet
-
4293900019 BushingBushing
-
5709200111 Outer ShroudOuter Shroud
-
6709200112 Fan Ass'Y. Includes 6 to 8Fan Ass'Y. Includes 6 to 8
-
7278000220 Female Terminal Housing (2 Circuits)Female Terminal Housing (2 Circuits)
-
8409007300 Female TerminalFemale Terminal
-
9207562044 Flanged Screw M6 X 20 (scotch Grip)Flanged Screw M6 X 20 (scotch Grip)
-
10207663044 Hex Flanged Screw M6 X 30Hex Flanged Screw M6 X 30
-
11250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
12391302000 Flat WasherFlat Washer
-
13233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
14709200033 Pressure CapPressure Cap
-
15709200060 Radiator Inlet HoseRadiator Inlet Hose
-
16709200031 Protection ShieldProtection Shield
-
17709200043 Outlet HoseOutlet Hose
-
18709200032 Protection ShieldProtection Shield
-
19414115200 Tie-RapTie-Rap
-
20293650109 Norma Spring ClampNorma Spring Clamp
-
21709200099 Coolant TankCoolant Tank
-
22709200009 Tank CapTank Cap
-
23570135100 GrommetGrommet
-
24414580600 Elbow Male ConnectorElbow Male Connector
-
25415110000 Polyurethane Hose 5.2 mmPolyurethane Hose 5.2 mm
-
26709200034 Protection CapProtection Cap
-
27415110000 Polyurethane Hose 5.2 mmPolyurethane Hose 5.2 mm
-
28414554800 Universal Spring ClampUniversal Spring Clamp
-
29709200115 BushingBushing
