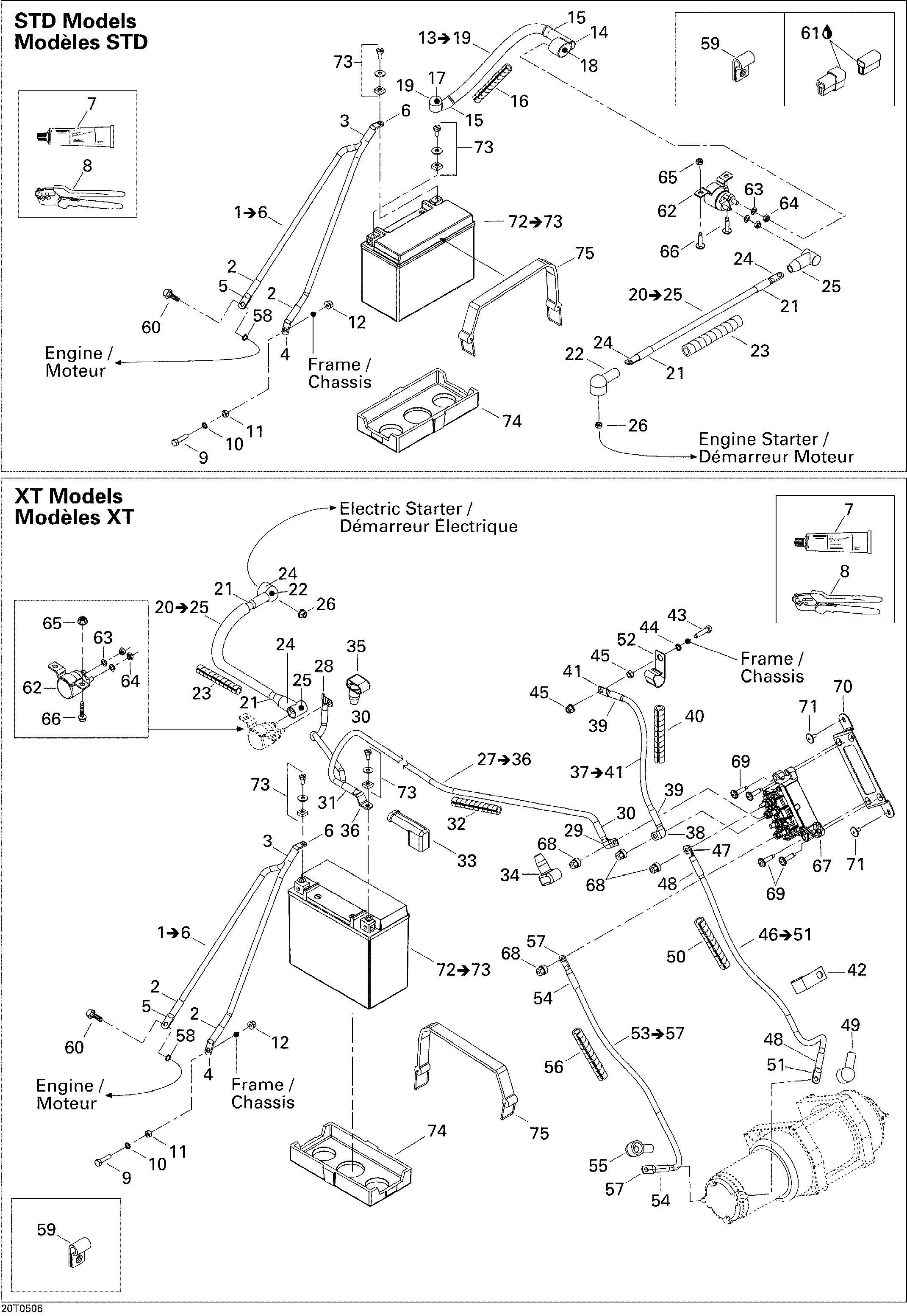

10- Electrical System для BRP Outlander MAX 400 - 2005
-
№АртикулНазвание
-
1710000458 Ground Cable (Frame/Engine). Includes 1 To 6Ground Cable (Frame/Engine). Includes 1 To 6
-
2710000483 Shrink TubingShrink Tubing
-
3275500578 Shrink TubingShrink Tubing
-
4710000540 Open BarrelOpen Barrel
-
5710000530 TerminalTerminal
-
6710000539 Open BarrelOpen Barrel
-
7293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
8529035730 Crimp PlierCrimp Plier
-
9207162544 Hex Screw M6 X 25Hex Screw M6 X 25
-
10234461608 External Serrated Lock Washer 6 mmExternal Serrated Lock Washer 6 mm
-
11232061414 Hex Nut M6Hex Nut M6
-
12233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
13710000520 Positive Cable (Battery/Solenoid). STD , Includes 13 To 19Positive Cable (Battery/Solenoid). STD , Includes 13 To 19
-
14710000475 Open Barel 6.6 mm. STDOpen Barel 6.6 mm. STD
-
15710000483 Shrink Tubing. STDShrink Tubing. STD
-
16710000497 Protector Tube 9 mm. STDProtector Tube 9 mm. STD
-
17710000516 Protector Cap. STDProtector Cap. STD
-
18710000523 Protector Cap. STDProtector Cap. STD
-
19710000518 Open Baril. STDOpen Baril. STD
-
20710000459 Positive Cable. Includes 20 To 25Positive Cable. Includes 20 To 25
-
21710000483 Shrink TubingShrink Tubing
-
22710000496 Protector CapProtector Cap
-
23710000497 Protector Tube 9 mmProtector Tube 9 mm
-
24710000530 TerminalTerminal
-
25710000526 Protector CapProtector Cap
-
26232561600 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
27710000480 Positive Cable. XT , Includes 27 To 36Positive Cable. XT , Includes 27 To 36
-
28710000475 Open Barel 6.6 mm. XTOpen Barel 6.6 mm. XT
-
29710000476 Flat Open Barel 6.6 mm. XTFlat Open Barel 6.6 mm. XT
-
30710000483 Shrink Tubing. XTShrink Tubing. XT
-
31275500578 Shrink Tubing. XTShrink Tubing. XT
-
32710000497 Protector Tube 9 mm. XTProtector Tube 9 mm. XT
-
33710000516 Protector Cap. XTProtector Cap. XT
-
34710000522 Protector Cap. XTProtector Cap. XT
-
35710000523 Protector Cap. XTProtector Cap. XT
-
36710000519 Open Baril. XTOpen Baril. XT
-
37710000455 Negative Cable. XT , Includes 37 To 41Negative Cable. XT , Includes 37 To 41
-
38710000476 Flat Open Barel 6.6 mm. XTFlat Open Barel 6.6 mm. XT
-
39710000483 Shrink Tubing. XTShrink Tubing. XT
-
40710000497 Protector Tube 9 mm. XTProtector Tube 9 mm. XT
-
41710000530 Terminal. XTTerminal. XT
-
42705600311 Clamp. XTClamp. XT
-
43207162044 Hex Cap Screw M6 X 20. XTHex Cap Screw M6 X 20. XT
-
44234461608 External Serrated Lock Washer 6 mm. XTExternal Serrated Lock Washer 6 mm. XT
-
45232061414 Hex Nut M6. XTHex Nut M6. XT
-
46710000451 Winch Positive Cable. XT , Includes 46 To 51Winch Positive Cable. XT , Includes 46 To 51
-
47710000476 Flat Open Barel 6.6 mm. XTFlat Open Barel 6.6 mm. XT
-
48710000483 Shrink Tubing. XTShrink Tubing. XT
-
49710000494 Protector Cap. XTProtector Cap. XT
-
50710000497 Protector Tube 9 mm. XTProtector Tube 9 mm. XT
-
51710000530 Terminal. XTTerminal. XT
-
52705600311 Clamp. XTClamp. XT
-
53710000454 Positive Cable. XT , Includes 53 To 57Positive Cable. XT , Includes 53 To 57
-
54710000483 Shrink Tubing. XTShrink Tubing. XT
-
55710000494 Protector Cap. XTProtector Cap. XT
-
56710000497 Protector Tube 9 mm. XTProtector Tube 9 mm. XT
-
57710000530 Terminal. XTTerminal. XT
-
58234461608 External Serrated Lock Washer 6 mmExternal Serrated Lock Washer 6 mm
-
59414227300 ClipClip
-
60207561644 Hex Flanged Screw M6x16 (scotch Grip)Hex Flanged Screw M6x16 (scotch Grip)
-
61293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
62515176011 Starter RelayStarter Relay
-
63234161601 Lock Washer Helical M6Lock Washer Helical M6
-
63234161601 Lock Washer Helical M6. XTLock Washer Helical M6. XT
-
64232061600 Hexagonal Nut M6Hexagonal Nut M6
-
65233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
66207661644 Hex Flanged Screw M6 X 16Hex Flanged Screw M6 X 16
-
67710000826 Winch Solenoid. XTWinch Solenoid. XT
-
68232561414 Elastic Stop Nut M6. XTElastic Stop Nut M6. XT
-
69250000081 Torx Button Head Screw M6 X 25. XTTorx Button Head Screw M6 X 25. XT
-
70705200773 Winch Relay Bracket. XTWinch Relay Bracket. XT
-
71390406500 Pop Rivet 3/16''. XTPop Rivet 3/16''. XT
-
72410301203 Battery (18 Amperes). Includes 72 To 73Battery (18 Amperes). Includes 72 To 73
-
73295500849 Battery Fastener KitBattery Fastener Kit
-
74710000279 Insulator PadInsulator Pad
-
75293850080 Rubber StrapRubber Strap
