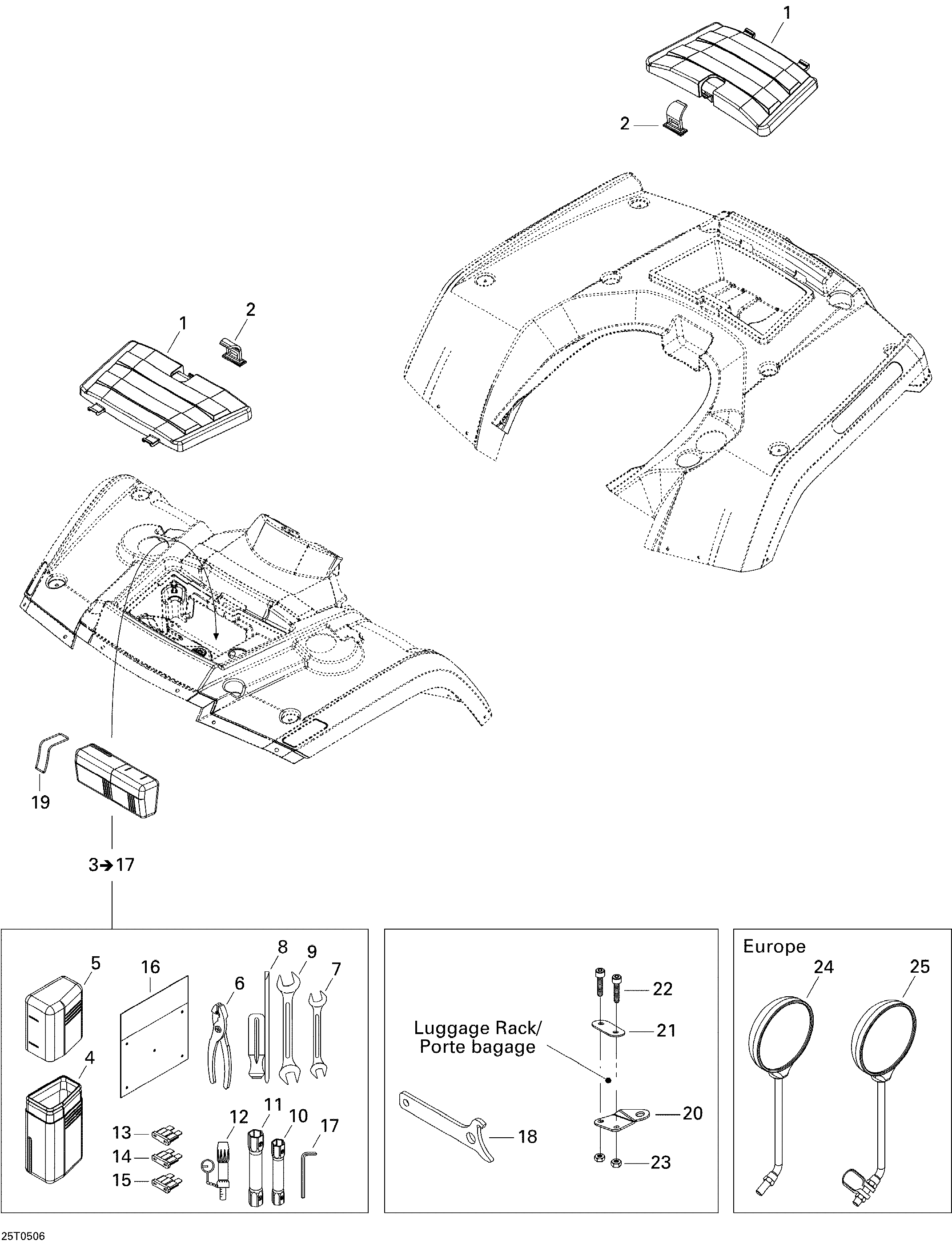

09- Front and Rear Trays для BRP Outlander MAX 400 - 2005
-
№АртикулНазвание
-
1708200050 Storage Cover, BlackStorage Cover, Black
-
2708200003 Cover LatchCover Latch
-
3704700086 Tool Kit. Includes 3 to 17Tool Kit. Includes 3 to 17
-
4708200041 Tool BoxTool Box
-
7529000002 Fork Wrench 10/13 mmFork Wrench 10/13 mm
-
8529000004 Driver ScrewDriver Screw
-
9529000003 Fork Wrench 15/17 mmFork Wrench 15/17 mm
-
10529014900 Socket Wrench 10/13 mmSocket Wrench 10/13 mm
-
11295000175 Socket Wrench 16/18 mmSocket Wrench 16/18 mm
-
12704700003 Pressure GaugePressure Gauge
-
13410917200 Fuse (30 Amperes)Fuse (30 Amperes)
-
14409003900 Fuse (20 Amperes)Fuse (20 Amperes)
-
15278000343 Fuse (15 Amperes)Fuse (15 Amperes)
-
17529035781 Key Allen 3 mmKey Allen 3 mm
-
18529032900 Adjustment WrenchAdjustment Wrench
-
19293300110 O-ringO-ring
-
20705000729 Flag SupportFlag Support
-
21705000730 PlatePlate
-
22205484596 Socket Head Screw M8 X 45Socket Head Screw M8 X 45
-
23232581414 Hex Elastic Nut M8Hex Elastic Nut M8
-
24709400338 Mirror. EuropeMirror. Europe
-
25709400202 Mirror. EuropeMirror. Europe
