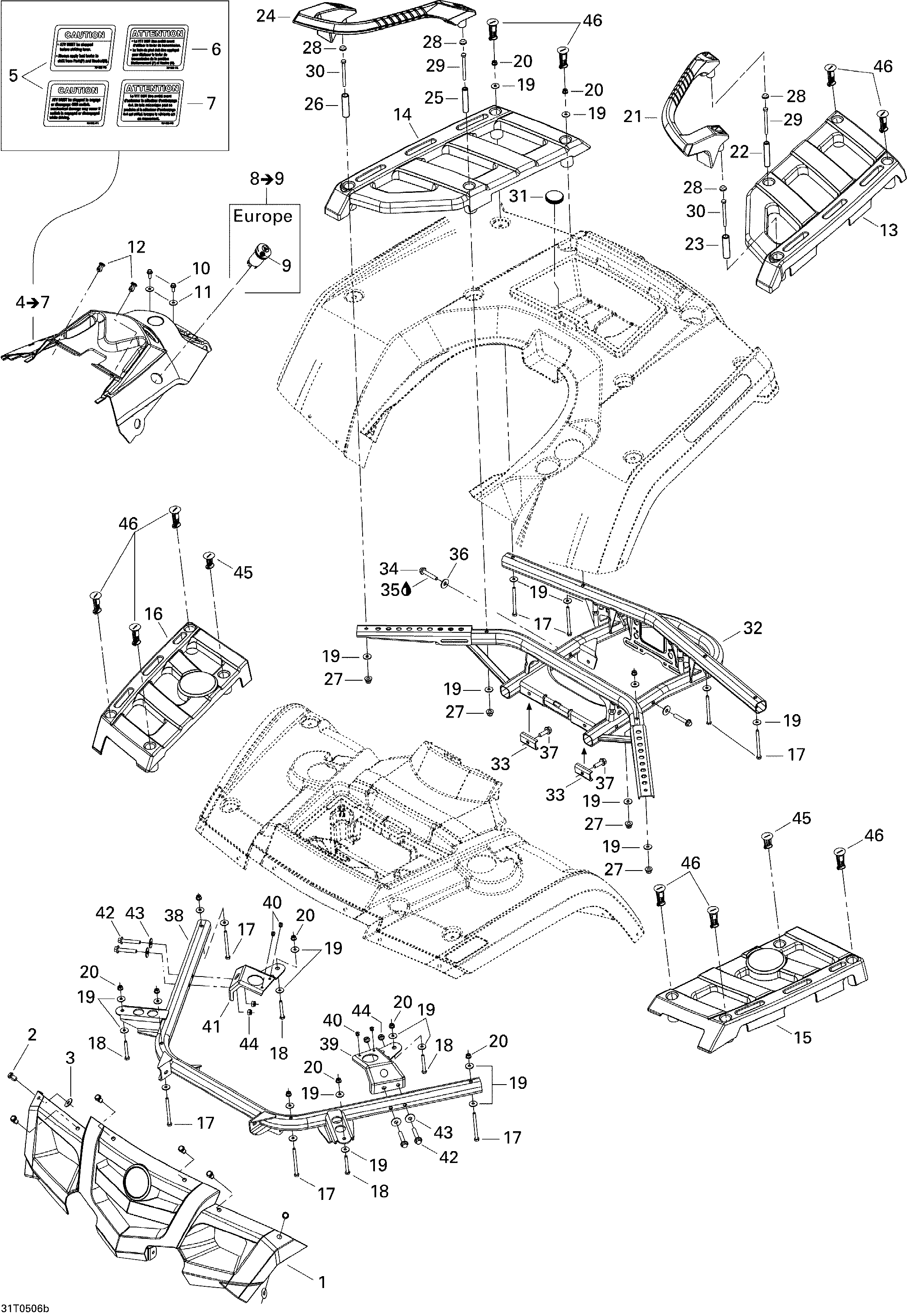

09- Body And Accessories 2 для BRP Outlander MAX 400 - 2005
-
№АртикулНазвание
-
1705000432 Front Fascia, Viper RedFront Fascia, Viper Red
-
1705000734 Front Fascia, Laurentian GreenFront Fascia, Laurentian Green
-
1705000851 Front Fascia, YellowFront Fascia, Yellow
-
2293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
3234082410 Flat Washer 8 mmFlat Washer 8 mm
-
4703500266 Console, Viper Red. Includes 4 to 7Console, Viper Red. Includes 4 to 7
-
4703500267 Console, Laurentian Green. Includes 4 to 7Console, Laurentian Green. Includes 4 to 7
-
4703500330 Console, Yellow. Includes 4 to 7Console, Yellow. Includes 4 to 7
-
5704900434 Warning Label Ass'yWarning Label Ass'y
-
8710000367 Emergency Switch. Includes 8 to 9, EuropeEmergency Switch. Includes 8 to 9, Europe
-
9710000661 Emergency Switch LightEmergency Switch Light
-
10210261680 Hex Flanged Forming Screw M6 X 16Hex Flanged Forming Screw M6 X 16
-
11391302000 Flat WasherFlat Washer
-
12293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
13705001525 LH Rear Luggage RackLH Rear Luggage Rack
-
14705001526 RH Rear Luggage RackRH Rear Luggage Rack
-
15705001527 LH Front Luggage RackLH Front Luggage Rack
-
16705001528 RH Front Luggage RackRH Front Luggage Rack
-
17207168044 Hex Screw M6 X 80Hex Screw M6 X 80
-
18207165044 Hex Screw M6 X 50Hex Screw M6 X 50
-
19224061201 Flat WasherFlat Washer
-
20233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
21705000979 LH HandleLH Handle
-
22705001243 SpacerSpacer
-
23705001244 SpacerSpacer
-
24705000980 RH HandleRH Handle
-
25705001243 SpacerSpacer
-
26705001244 SpacerSpacer
-
27233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
28705001242 Handle CapHandle Cap
-
29230663084 Hex Flanged Screw M6 X 130Hex Flanged Screw M6 X 130
-
30207669584 Hex Flanged Screw M6 X 95Hex Flanged Screw M6 X 95
-
31570041600 Rubber CoverRubber Cover
-
32705001684 Rear SupportRear Support
-
33705001180 U ReinforcementU Reinforcement
-
34207684544 Hex Flanged Screw M8 X 45Hex Flanged Screw M8 X 45
-
35293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
36234082410 Flat Washer 8 mmFlat Washer 8 mm
-
37207582544 Hex Flanged Screw M8 X 25, Scotch GripHex Flanged Screw M8 X 25, Scotch Grip
-
38705000895 Front SupportFront Support
-
39705000692 LH Anchor PlateLH Anchor Plate
-
40390402000 Pop Rivet 3/16''Pop Rivet 3/16''
-
41705000693 RH Anchor PlateRH Anchor Plate
-
42207684544 Hex Flanged Screw M8 X 45Hex Flanged Screw M8 X 45
-
43234082410 Flat Washer 8 mmFlat Washer 8 mm
-
44232581414 Hex Elastic Nut M8Hex Elastic Nut M8
-
45705001689 PlugPlug
-
46705001690 PlugPlug
