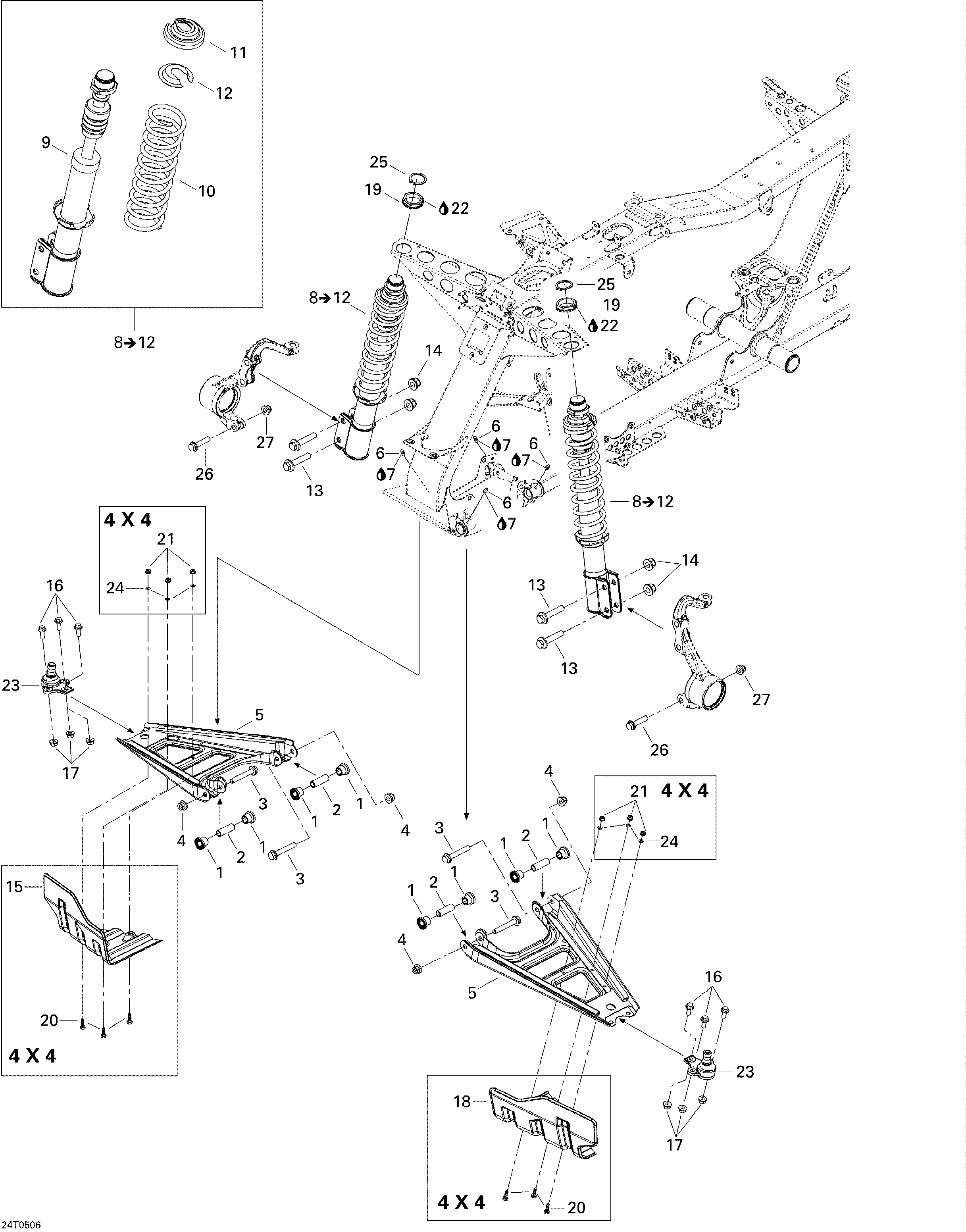

07- Front Suspension для BRP Outlander MAX 400 - 2005
-
№АртикулНазвание
-
1706200181 CushionCushion
-
2706200182 Inner BushingInner Bushing
-
3207606546 Hex Flanged Screw M10 X 65Hex Flanged Screw M10 X 65
-
4233201416 Hex Flanged Elastic Nut M10Hex Flanged Elastic Nut M10
-
5706200229 Suspension ArmSuspension Arm
-
6408200700 Grease FittingGrease Fitting
-
7293550010 Synthetic Grease, 400 GSynthetic Grease, 400 G
-
9706200431 Front ShockFront Shock
-
10706200353 Front Spring (full Moon)Front Spring (full Moon)
-
11706200218 Spring StopperSpring Stopper
-
12706200219 CapCap
-
13207626046 Hex Flanged Screw M12 X 60Hex Flanged Screw M12 X 60
-
14233221414 Hex Flanged Elastic Nut M12Hex Flanged Elastic Nut M12
-
15706200214 RH Protector. 4X4RH Protector. 4X4
-
16207682544 Hex Flanged Screw M8 X 25Hex Flanged Screw M8 X 25
-
17233281414 Hex Flanged Elastic Nut M8Hex Flanged Elastic Nut M8
-
18706200213 LH Protector. 4X4LH Protector. 4X4
-
19706200443 NutNut
-
20207151644 Hex Screw M5 X 16. 4X4Hex Screw M5 X 16. 4X4
-
21233251414 Hex Flanged Elastic Nut M5. 4X4Hex Flanged Elastic Nut M5. 4X4
-
22293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
23706200231 Joint AttachJoint Attach
-
24391301700 Washer. 4X4Washer. 4X4
-
25293370009 Circlip 32 mmCirclip 32 mm
-
26207604544 Hex Flanged Screw M10 X 45Hex Flanged Screw M10 X 45
-
27233201414 Hex Flanged Elastic Nut M10Hex Flanged Elastic Nut M10
