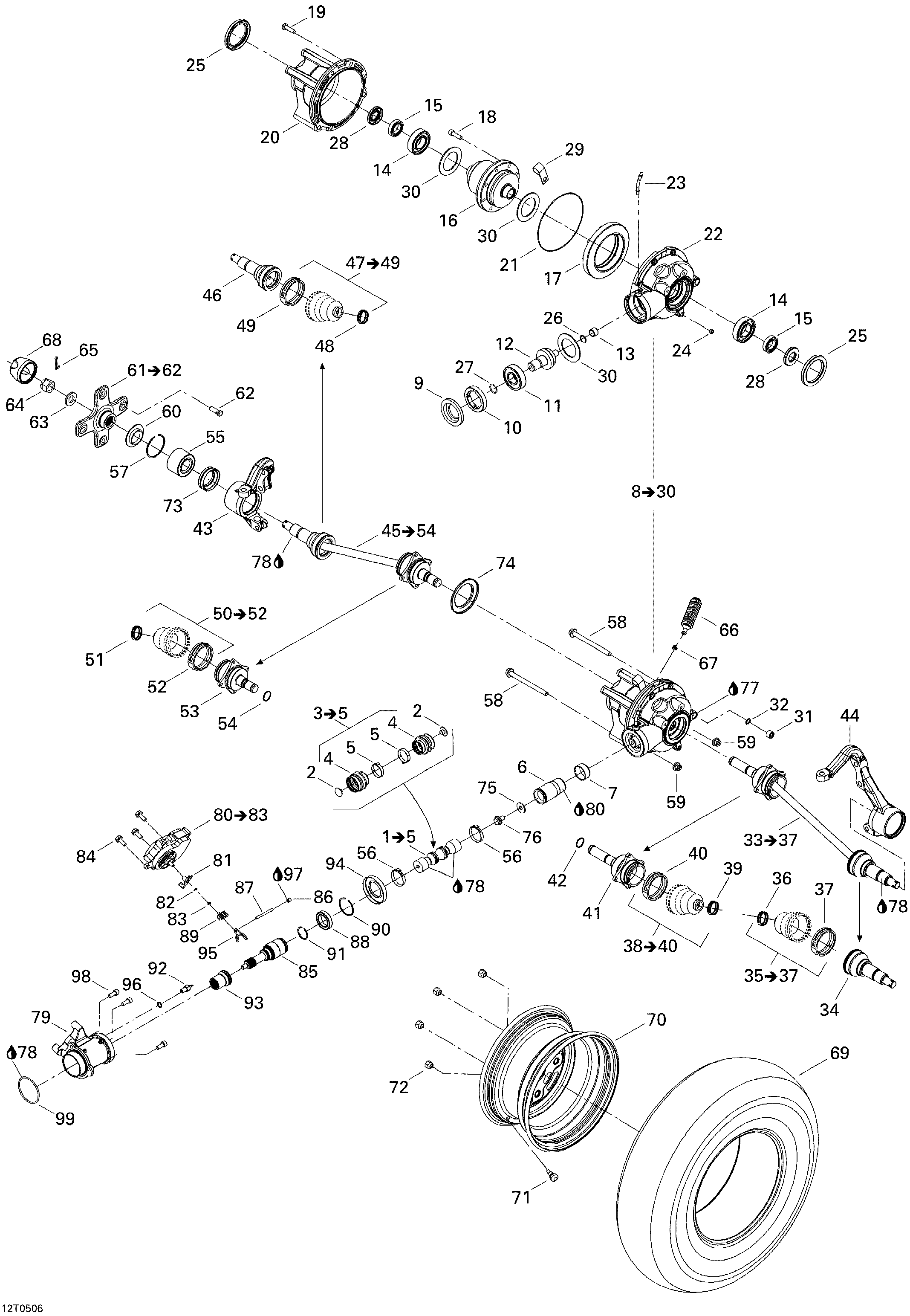

07- Drive System, Front для BRP Outlander MAX 400 - 2005
-
№АртикулНазвание
-
1705400337 Front Drive Axle Ass'y. Includes 1 to 5Front Drive Axle Ass'y. Includes 1 to 5
-
3703500255 Rubber Boot Kit. Includes 3 to 5Rubber Boot Kit. Includes 3 to 5
-
4705400148 CollarCollar
-
5293650138 Oetiker ClampOetiker Clamp
-
6705400149 Coupling SleeveCoupling Sleeve
-
7705400036 Wear RingWear Ring
-
8705400260 Front Differential Ass'Y. Includes 8 to 30Front Differential Ass'Y. Includes 8 to 30
-
9705400027 Oil SealOil Seal
-
10705500266 NutNut
-
11705500260 Ball BearingBall Bearing
-
12705500268 Gear, 10 TeethGear, 10 Teeth
-
13705500261 Needle BearingNeedle Bearing
-
14705500259 Ball BearingBall Bearing
-
15293350044 Ball BearingBall Bearing
-
16705400212 DifferentialDifferential
-
17705400192 Gear, 36 TeethGear, 36 Teeth
-
18705400101 Ring Gear ScrewRing Gear Screw
-
19705500264 ScrewScrew
-
20705400133 Differential CapDifferential Cap
-
21705500265 SealSeal
-
22705400261 Differential CarrierDifferential Carrier
-
23705500262 Vent ValveVent Valve
-
24705500245 Drain PlugDrain Plug
-
25293250137 Oil SealOil Seal
-
26705500269 Retaining RingRetaining Ring
-
27705500267 O-RingO-Ring
-
28705500255 Oil SealOil Seal
-
29705600311 ClampClamp
-
30703500288 Differential Shim KitDifferential Shim Kit
-
31705500504 Fill Level PlugFill Level Plug
-
32705500506 Copper WasherCopper Washer
-
33705400349 RH Cv Joint. Includes 33 to 37RH Cv Joint. Includes 33 to 37
-
34705400154 Cv JointCv Joint
-
35705400127 Boot Wheel Kit. Includes 35 to 37Boot Wheel Kit. Includes 35 to 37
-
36705400064 ClampClamp
-
37705400180 ClampClamp
-
38705400126 Boot Differential Kit. Includes 38 to 40Boot Differential Kit. Includes 38 to 40
-
39705400064 ClampClamp
-
40705400181 ClampClamp
-
41705400156 RH Plunging JointRH Plunging Joint
-
42705400042 CirclipCirclip
-
43709400132 LH KnuckleLH Knuckle
-
44709400133 RH KnuckleRH Knuckle
-
45705400350 LH Cv Joint. Includes 45 to 54LH Cv Joint. Includes 45 to 54
-
46705400154 Cv JointCv Joint
-
47705400127 Boot Wheel Kit. Includes 47 to 49Boot Wheel Kit. Includes 47 to 49
-
48705400064 ClampClamp
-
49705400180 ClampClamp
-
50705400126 Boot Differential Kit. Includes 50 to 52Boot Differential Kit. Includes 50 to 52
-
51705400064 ClampClamp
-
52705400181 ClampClamp
-
53705400155 Plunging JointPlunging Joint
-
54705400042 CirclipCirclip
-
55293350040 Cone BearingCone Bearing
-
56293650138 Oetiker ClampOetiker Clamp
-
57293370019 CirclipCirclip
-
58230602546 Hex Flanged Screw M10 X 125Hex Flanged Screw M10 X 125
-
59233201416 Hex Flanged Elastic Nut M10Hex Flanged Elastic Nut M10
-
60705500564 Wear SleeveWear Sleeve
-
61705500596 Wheel Hub Ass'Y. Includes 61 to 62Wheel Hub Ass'Y. Includes 61 to 62
-
62250300020 Wheel StudWheel Stud
-
63250200049 Spring WasherSpring Washer
-
64250100047 Hex Castellated NutHex Castellated Nut
-
65250400016 Cotter PinCotter Pin
-
66705400066 Rubber BellowRubber Bellow
-
67293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
68705400012 Wheel CapWheel Cap
-
69705400213 Front Tire. STDFront Tire. STD
-
69705400326 Front Tire. XTFront Tire. XT
-
70705400355 Front Rim. STDFront Rim. STD
-
70705400355 Front Rim. XTFront Rim. XT
-
71705400193 Rim Valve. STDRim Valve. STD
-
71705400193 Rim Valve. XTRim Valve. XT
-
72250100042 Wheel NutWheel Nut
-
73293250090 Oil SealOil Seal
-
74705400179 Wear SleeveWear Sleeve
-
75250200014 Flat WasherFlat Washer
-
76250000060 Flanged Screw M10 X 16 (scotch Grip)Flanged Screw M10 X 16 (scotch Grip)
-
77293600011 Pump Oil, 75w90, 12 X 6 OzPump Oil, 75w90, 12 X 6 Oz
-
78293550010 Synthetic Grease, 400 GSynthetic Grease, 400 G
-
79705400169 HousingHousing
-
80705400252 Actuator. Includes 80 to 83Actuator. Includes 80 to 83
-
81705400274 ForkFork
-
82293370042 CirclipCirclip
-
83293300108 O-RingO-Ring
-
84250000137 Hex Flanged Screw M8 X 20 (scotch Grip)Hex Flanged Screw M8 X 20 (scotch Grip)
-
85705400172 Union ShaftUnion Shaft
-
86206580890 Pressure Screw M8 X 8Pressure Screw M8 X 8
-
87250400025 Dowell PinDowell Pin
-
88705400249 Ball BearingBall Bearing
-
89705400175 SliderSlider
-
90293370029 CirclipCirclip
-
91293370030 CirclipCirclip
-
92710000324 SwitchSwitch
-
93705400389 Coupling SleeveCoupling Sleeve
-
94293250138 Oil SealOil Seal
-
95705400387 Shifter PlateShifter Plate
-
96705600310 Copper WasherCopper Washer
-
97293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
98250000136 Socket Screw M8 X 20, Scotch GripSocket Screw M8 X 20, Scotch Grip
-
99293300091 O-RingO-Ring
