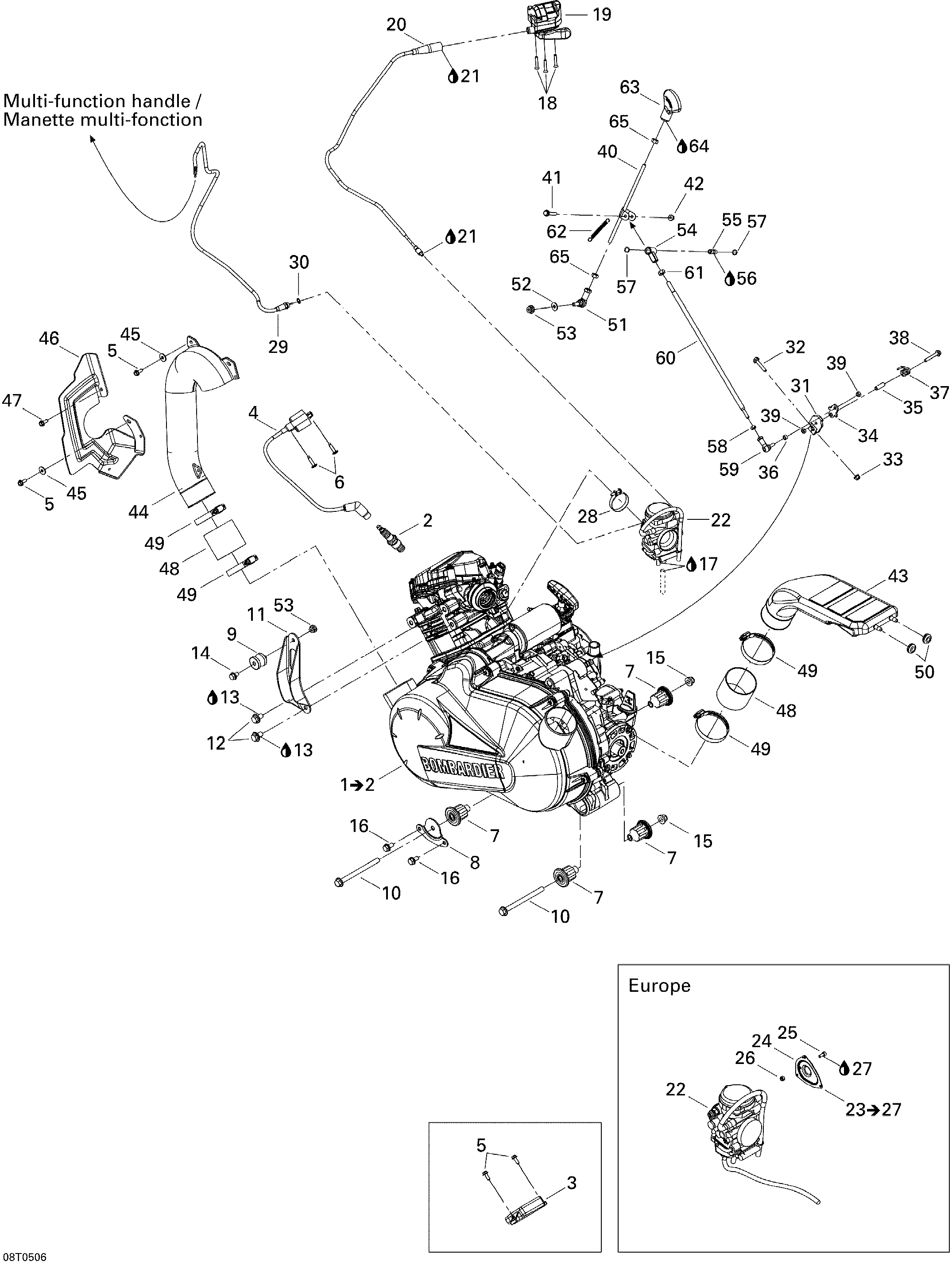

01- Engine And Engine Support для BRP Outlander MAX 400 - 2005
-
№АртикулНазвание
-
1707000376 Engine Rotax 4 Strokes. Includes 1 to 2Engine Rotax 4 Strokes. Includes 1 to 2
-
2707000246 Spark PlugSpark Plug
-
3420664285 Amplifier BoxAmplifier Box
-
4420265358 Ignition CoilIgnition Coil
-
5210261680 Hex Flanged Forming Screw M6 X 16Hex Flanged Forming Screw M6 X 16
-
6210262080 Hex Forming ScrewHex Forming Screw
-
7707000218 Anti-Vibration MountAnti-Vibration Mount
-
8707000220 LH Front Engine BracketLH Front Engine Bracket
-
9274000839 Rubber IsolatorRubber Isolator
-
10230602546 Hex Flanged Screw M10 X 125Hex Flanged Screw M10 X 125
-
11707000224 Upper Engine BracketUpper Engine Bracket
-
12207602544 Hex Flanged Screw M10 X 25Hex Flanged Screw M10 X 25
-
13293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
14207581244 Hex Flanged Screw M8x12 (scotch Grip)Hex Flanged Screw M8x12 (scotch Grip)
-
15233201416 Hex Flanged Elastic Nut M10Hex Flanged Elastic Nut M10
-
16207581244 Hex Flanged Screw M8x12 (scotch Grip)Hex Flanged Screw M8x12 (scotch Grip)
-
17413708300 Glue Tube, Loctite 454, 20 GGlue Tube, Loctite 454, 20 G
-
18205052588 Socket Screw M5 X 25Socket Screw M5 X 25
-
19707000369 Throttle Handle. 4X4Throttle Handle. 4X4
-
19707000370 Throttle Handle. 2X4Throttle Handle. 2X4
-
20707000226 Throttle CableThrottle Cable
-
21293600041 Cable Lubricant, 400 GCable Lubricant, 400 G
-
22707000402 Carburator Ce (mikuni Bsr33-67). EuropeCarburator Ce (mikuni Bsr33-67). Europe
-
22707200190 Carburator (mikuni Bsr33-49)Carburator (mikuni Bsr33-49)
-
23707000406 Calibrated Cover Ass'y. Europe, Includes 23 to 27Calibrated Cover Ass'y. Europe, Includes 23 to 27
-
25205041044 Socket Head Screw M4 X 10. EuropeSocket Head Screw M4 X 10. Europe
-
26232541414 Hex Flanged Elastic Nut M4. EuropeHex Flanged Elastic Nut M4. Europe
-
27413711400 Loctite 648, 10 ml. EuropeLoctite 648, 10 ml. Europe
-
28293650164 Gemi ClampGemi Clamp
-
29707000228 Choke CableChoke Cable
-
30293300075 O-RingO-Ring
-
31707000295 Pre-Selective LeverPre-Selective Lever
-
32207663044 Hex Flanged Screw M6 X 30Hex Flanged Screw M6 X 30
-
33233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
34707000309 Pivot PlatePivot Plate
-
35293900050 BushingBushing
-
36293900029 BushingBushing
-
37707000310 SpringSpring
-
38207664044 Hex Flanged Screw M6 X 40Hex Flanged Screw M6 X 40
-
39232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
40707000258 Lever ArmLever Arm
-
41207664044 Hex Flanged Screw M6 X 40Hex Flanged Screw M6 X 40
-
42233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
43707000361 Air OutletAir Outlet
-
44707000261 Air IntakeAir Intake
-
45391302000 Flat WasherFlat Washer
-
46707000304 C.V.T. Water DeflectorC.V.T. Water Deflector
-
47414745900 Tuflock Phillips Plastic ScrewTuflock Phillips Plastic Screw
-
48707000154 Flexible AdaptorFlexible Adaptor
-
49293650064 Tridon ClampTridon Clamp
-
50293720053 GrommetGrommet
-
51707000278 RH Ball JointRH Ball Joint
-
52234081410 Flat Washer 8 mmFlat Washer 8 mm
-
53232581414 Hex Elastic Nut M8Hex Elastic Nut M8
-
54707000279 PivotPivot
-
55293900047 BushingBushing
-
56293550010 Synthetic Grease, 400 GSynthetic Grease, 400 G
-
57414583300 O-RingO-Ring
-
58232066414 LH Hex Nut M6LH Hex Nut M6
-
59707000143 LH Ball JointLH Ball Joint
-
60707000280 Threaded RodThreaded Rod
-
61232081414 Hex Nut M8Hex Nut M8
-
62707000281 SpringSpring
-
63707000284 Lever HandleLever Handle
-
64293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
65232081414 Hex Nut M8Hex Nut M8
