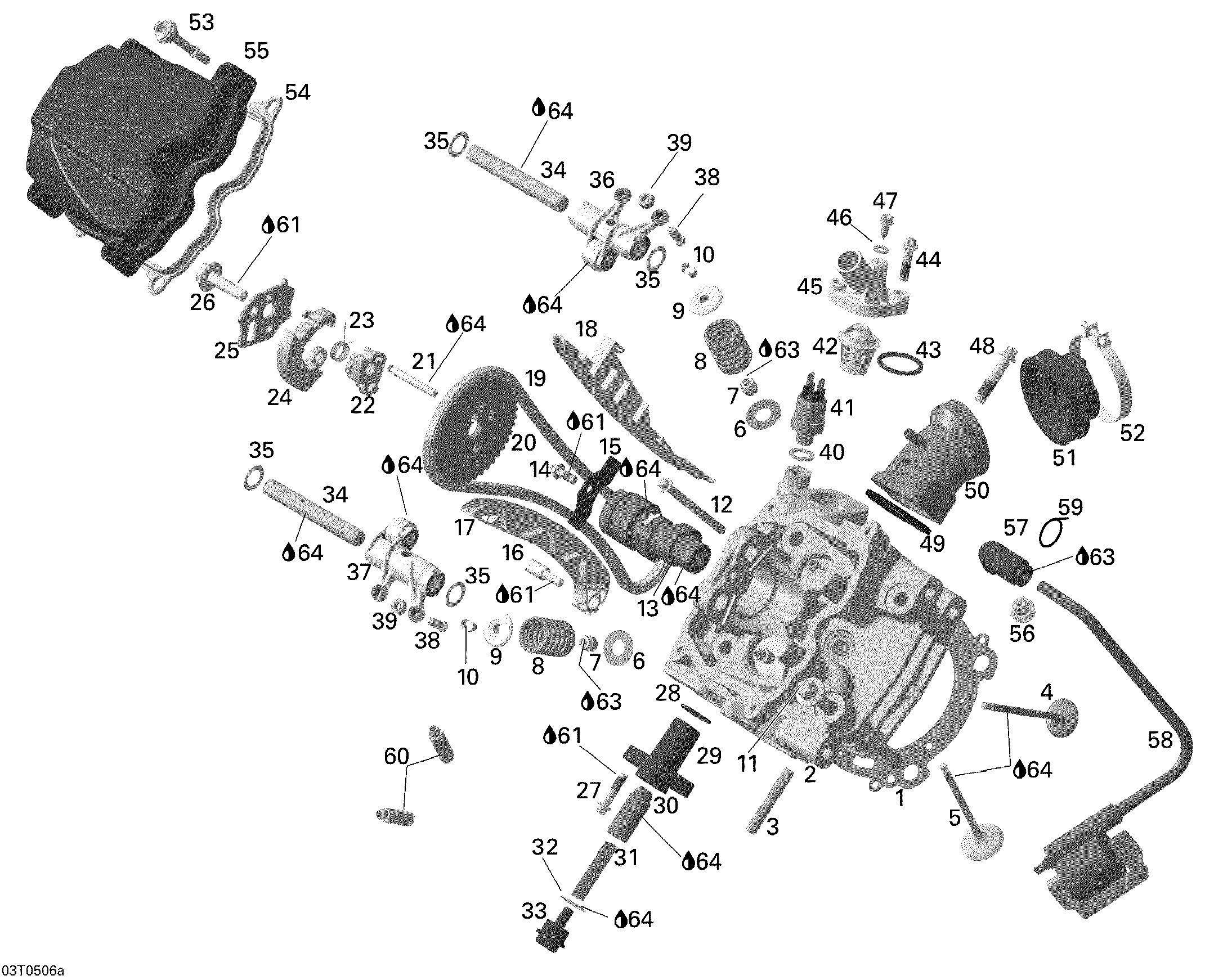

01- Cylinder Head для BRP Outlander MAX 400 - 2005
-
№АртикулНазвание
-
1420630195 Cylinder Head GasketCylinder Head Gasket
-
2420613526 Cylinder Head Ass'Y. Includes 2 to 3Cylinder Head Ass'Y. Includes 2 to 3
-
3420941013 Stud M8 X 26Stud M8 X 26
-
4420254350 Intake Valve 31 mmIntake Valve 31 mm
-
5420254360 Exhaust Valve 27 mmExhaust Valve 27 mm
-
6420627770 Thrust WasherThrust Washer
-
7420230515 Valve Stem SealValve Stem Seal
-
8420239295 Valve SpringValve Spring
-
9420254132 Valve Spring RetainerValve Spring Retainer
-
10420254120 Cotter ValveCotter Valve
-
11420641550 Torx Screw M10 X 140Torx Screw M10 X 140
-
12420440342 Flanged Torx Screw M8 X 65Flanged Torx Screw M8 X 65
-
13420620010 CamshaftCamshaft
-
14420440162 Flanged Torx Screw M8 X 16Flanged Torx Screw M8 X 16
-
15420627740 Holding StripHolding Strip
-
16420240942 Bearing Screw M6Bearing Screw M6
-
17420236570 Chain Tension GuideChain Tension Guide
-
18420236580 Chain GuideChain Guide
-
19420297060 Silent ChainSilent Chain
-
20420254432 Steering Wheel 42 TeethSteering Wheel 42 Teeth
-
21420620120 Deko ShaftDeko Shaft
-
22420231080 SpacerSpacer
-
23420238270 Deko Torsion SpringDeko Torsion Spring
-
24420231070 Centrifugal WeightCentrifugal Weight
-
25420231090 Deko WasherDeko Washer
-
26420641820 Hex Collar Screw M8 X 32Hex Collar Screw M8 X 32
-
27420240031 Hex Screw M6 X 25Hex Screw M6 X 25
-
28420430370 O-RingO-Ring
-
29420236510 Chain Tensioner HousingChain Tensioner Housing
-
30420236520 Chain Tensioner PlungerChain Tensioner Plunger
-
31420238120 SpringSpring
-
32420250890 O-RingO-Ring
-
33420641150 Plug ScrewPlug Screw
-
34420229711 Pin # 12 Small M6 X 90Pin # 12 Small M6 X 90
-
35420944382 Shim 12.1/18.5/0.5Shim 12.1/18.5/0.5
-
36420254405 Rocker Arm InletRocker Arm Inlet
-
37420254415 Rocker Arm ExhaustRocker Arm Exhaust
-
38420241335 Adjustment Screw M6 X 0,75''Adjustment Screw M6 X 0,75''
-
39420242910 Hex Nut M6Hex Nut M6
-
40420250640 GasketGasket
-
41420897938 Temperature SwitchTemperature Switch
-
42420222493 Thermostat 65° With Gasket. Includes 42 to 43Thermostat 65° With Gasket. Includes 42 to 43
-
43420650300 Thermostat GasketThermostat Gasket
-
44420440232 Flanged Torx Screw M6 X 25Flanged Torx Screw M6 X 25
-
45420222690 Thermostat CoverThermostat Cover
-
46420650250 Gasket RingGasket Ring
-
47420941950 Screw M5.5 X 13Screw M5.5 X 13
-
48420440482 Allen Screw M8 X 40Allen Screw M8 X 40
-
49420630640 GasketGasket
-
50420267386 Intake Flange AssemblyIntake Flange Assembly
-
51420267340 Intake NeckIntake Neck
-
52420251480 Hose ClampHose Clamp
-
53420440307 Hex Distance Screw M6 X 30.5Hex Distance Screw M6 X 30.5
-
54420630260 GasketGasket
-
55420610390 Valve CoverValve Cover
-
56707000246 Spark PlugSpark Plug
-
57420265358 Ignition Coil. Includes 57 to 58Ignition Coil. Includes 57 to 58
-
57420265240 Spark Plug ConnectorSpark Plug Connector
-
60420254370 Valve GuideValve Guide
-
61293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
62413711400 Loctite 648, 10 mlLoctite 648, 10 ml
-
63293550030 Grease, Super LubeGrease, Super Lube
-
64293600039 Engine Oil 4 Strokes, 5w40, 12 X 1 LiterEngine Oil 4 Strokes, 5w40, 12 X 1 Liter
