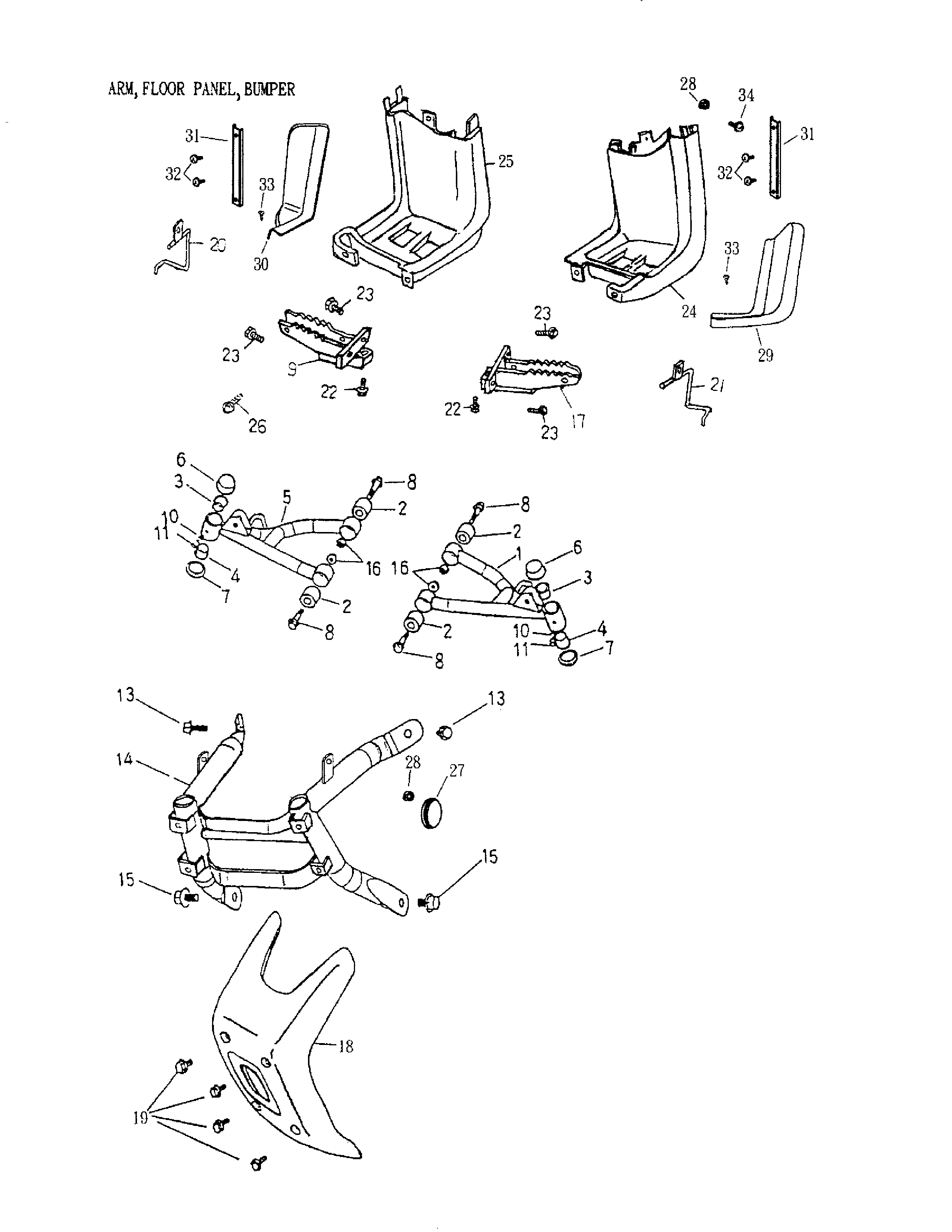

09- Arm, Foot Rest, Bumper для BRP Mini DS 90 4-strokes - 2005
-
№АртикулНазвание
-
1A51300145001 Left Suspension ArmLeft Suspension Arm
-
2A96400102829 Rubber Bushing (10 x 28 x 29)Rubber Bushing (10 x 28 x 29)
-
3A51201145000 BushBush
-
4A51202145000 BushBush
-
5A51200145001 Right Suspension ArmRight Suspension Arm
-
6A5120314500A Waterproof CoverWaterproof Cover
-
7A51204145001 Dustproof CoverDustproof Cover
-
8A960001004814G Hex. Washer Face Bolt M10 x 48Hex. Washer Face Bolt M10 x 48
-
9A50717152000 Right Step BarRight Step Bar
-
10A9650106000 Grease ValveGrease Valve
-
11A9650206000 Grease Valve CapGrease Valve Cap
-
12A960001002014G Hex. Washer Face Bolt M10 x 20Hex. Washer Face Bolt M10 x 20
-
13A960000601210G Hex. Washer Face Bolt M6 x 12Hex. Washer Face Bolt M6 x 12
-
14A50104166000 BumperBumper
-
15A960000801512G Hex. Washer Face Bolt M8 x 15Hex. Washer Face Bolt M8 x 15
-
16A9035010000G Nylon Nut (10 mm x 1.25)Nylon Nut (10 mm x 1.25)
-
17A50718152000 Left Step BarLeft Step Bar
-
18A50107155000BK Bumper CoverBumper Cover
-
19A960000601210G Hex. Washer Face Bolt M6 x 12Hex. Washer Face Bolt M6 x 12
-
20A64314152000 R.H. Fixed PoleR.H. Fixed Pole
-
21A64315152000 L.H. Fixed PoleL.H. Fixed Pole
-
22A960000801512G Hex. Washer Face Bolt M8 x 15Hex. Washer Face Bolt M8 x 15
-
23A960000802012G Hex. Washer Face Bolt M8 x 20Hex. Washer Face Bolt M8 x 20
-
24A80115172000 L.H. Rear FenderL.H. Rear Fender
-
25A80116172000 L.H. Rear FenderL.H. Rear Fender
-
26A9370106015S Pan Flat Head Phillips Bolt M6 x 15Pan Flat Head Phillips Bolt M6 x 15
-
27A33741145000L Front ReflectorFront Reflector
-
28233261414 Hex. Flanged Nut With Serration M6Hex. Flanged Nut With Serration M6
-
29A64331172000 L.H. Floor Panel Protect CoverL.H. Floor Panel Protect Cover
-
30A64332172000 R.H. Floor Panel Protect CoverR.H. Floor Panel Protect Cover
-
31A64333166000 Floor Protect Cover BracketFloor Protect Cover Bracket
-
32A9370106012G Pan Flat Head Phillips Bolt M6 x 12Pan Flat Head Phillips Bolt M6 x 12
-
33A9390305012 Tapping Screw Truss Head Phillips M5 x 12Tapping Screw Truss Head Phillips M5 x 12
-
34A9370106015G Pan Flat Head Phillips Bolt M6 x 15Pan Flat Head Phillips Bolt M6 x 15
