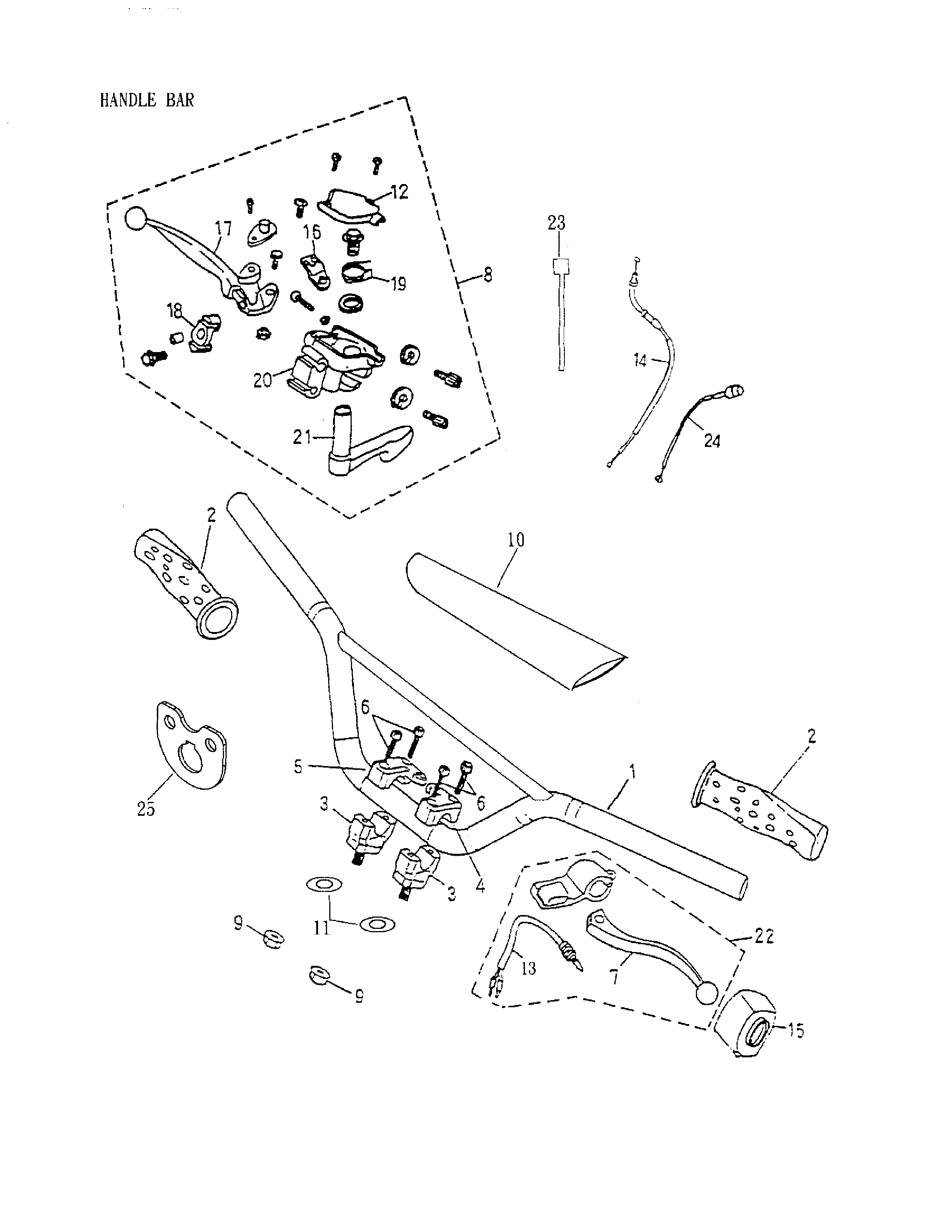

07- Handlebar для BRP Mini DS 90 4-strokes - 2005
-
№АртикулНазвание
-
1A5310014500C Handle BarHandle Bar
-
2A53166101000 Handle GripHandle Grip
-
3A5310114500A Handle Bar Bottom ClampHandle Bar Bottom Clamp
-
4A5310214500A L.H. Handle Bar ClampL.H. Handle Bar Clamp
-
5A5310314500A R.H. Handle Bar ClampR.H. Handle Bar Clamp
-
6A9100006025 Hex. Socket Bolt (M6 x 25)Hex. Socket Bolt (M6 x 25)
-
7A53178145000 L.H. LeverL.H. Lever
-
8A5317014500A Right Lever Ass'yRight Lever Ass'y
-
9A9035010000G Nylon Nut (10 mm x 1.25)Nylon Nut (10 mm x 1.25)
-
10A53132166000RD Cross Bar SpongeCross Bar Sponge
-
11A941051022025G Plain WasherPlain Washer
-
12A5317114500A Lever Body CoverLever Body Cover
-
13A35345145000 L.H. Brake Switch WireL.H. Brake Switch Wire
-
14A17910152001 Throttle CableThrottle Cable
-
15A3520014500A L.H. Handle Switch Ass'yL.H. Handle Switch Ass'y
-
16A53174145000 Throttle Cable BracketThrottle Cable Bracket
-
17A53175145000 R.H. LeverR.H. Lever
-
18A53173145000 Cable BracketCable Bracket
-
19A53184145000 Throttle Lever SpringThrottle Lever Spring
-
20A53172145000 Lever BracketLever Bracket
-
21A53180145000 Throttle LeverThrottle Lever
-
22A53179155000 L.H.Lever Ass'yL.H.Lever Ass'y
-
23A9066910100A Tie RapTie Rap
-
24A17950152000 Choke CableChoke Cable
-
25A37212152000 Indicator Light PlateIndicator Light Plate
