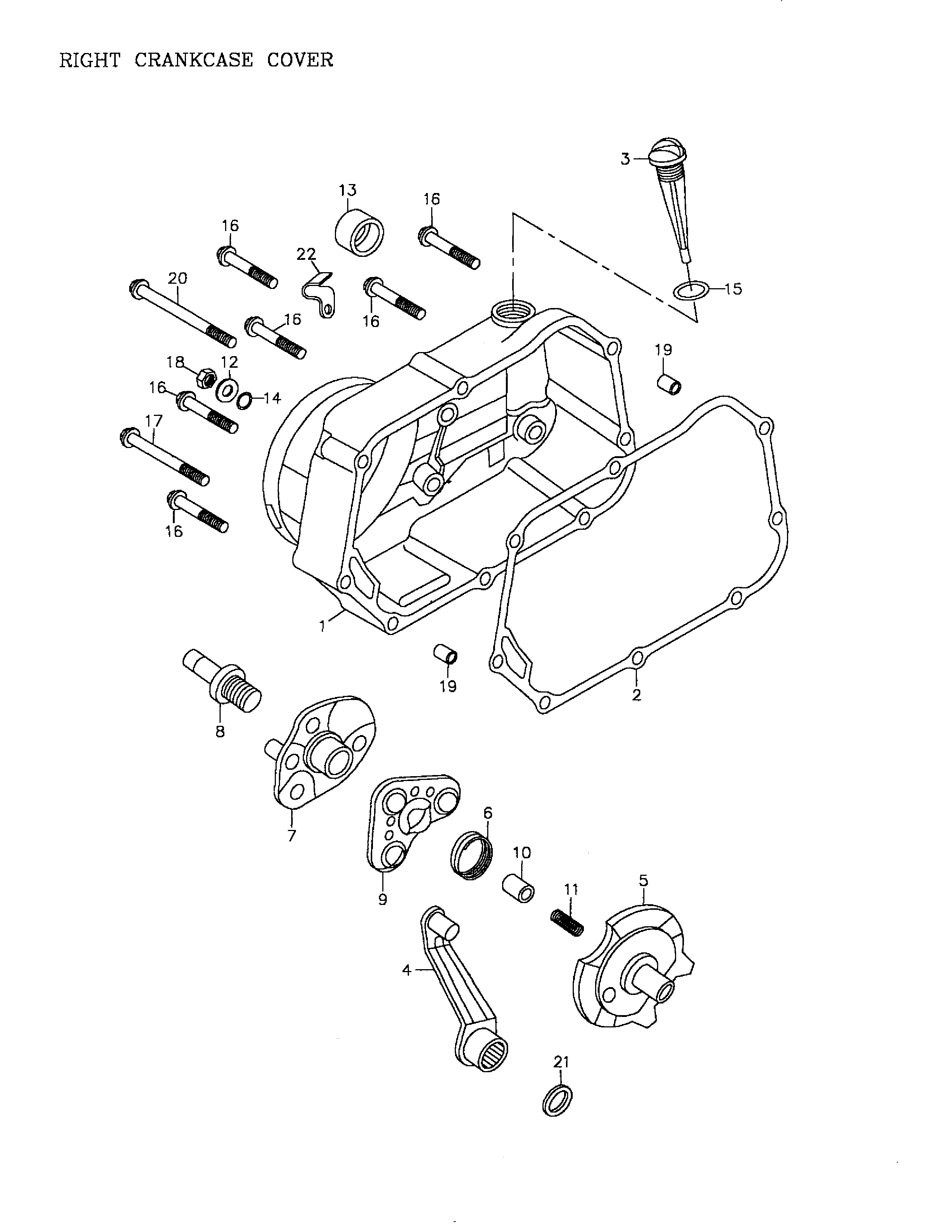

01- Right Crankcase Cover для BRP Mini DS 90 4-strokes - 2005
-
№АртикулНазвание
-
1A11330152000 R.H. Crankcase Cover CompR.H. Crankcase Cover Comp
-
2A11393152000 R.H. Crankcase Cover GasketR.H. Crankcase Cover Gasket
-
3A15651152000 Oil Level GaugeOil Level Gauge
-
4A22711152000 Clutch LeverClutch Lever
-
5A22820152000 Clutch Cam Plate CompClutch Cam Plate Comp
-
6A22825152000 Cam Plate Side SpringCam Plate Side Spring
-
7A22850152000 Clutch Lifter PlateClutch Lifter Plate
-
8A22846152000 Clutch Adjusting BoltClutch Adjusting Bolt
-
9A22860152000 Clutch Ball RetainerClutch Ball Retainer
-
10A15441152000 Oil Through PipeOil Through Pipe
-
11A15446152000 Oil Through SpringOil Through Spring
-
12A941030815010 Copper Plain WasherCopper Plain Washer
-
13A9650014245 Oil Seal (13.7 x 24 x 5)Oil Seal (13.7 x 24 x 5)
-
14A91307101000 Oil RingOil Ring
-
15A91318108000 Oil RingOil Ring
-
16A9100006040 Pan Head Phillips Bolt M6 x 40Pan Head Phillips Bolt M6 x 40
-
17A9100006070 Pan Head Phillips Bolt M6 x 70Pan Head Phillips Bolt M6 x 70
-
18A9400108000 Hex. Nut M8Hex. Nut M8
-
19A9430108120 Dowel Pin (8 x 12)Dowel Pin (8 x 12)
-
20A9100006113 Pan Head Phillips Bolt. M6 x 113Pan Head Phillips Bolt. M6 x 113
-
21A941011013010 Plain WasherPlain Washer
-
22A1135112000A ClamperClamper
