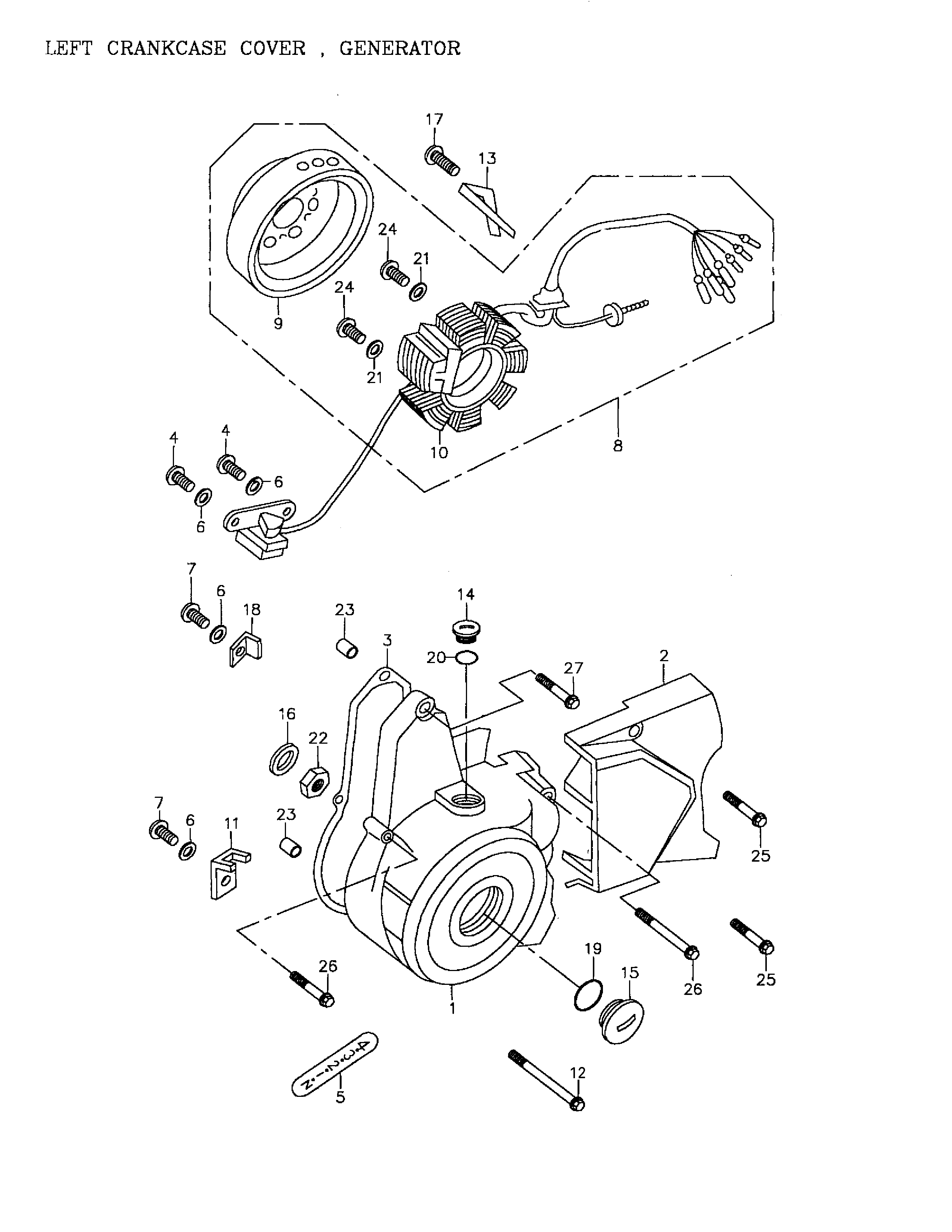

01- Left Crankcase Cover, Generator для BRP Mini DS 90 4-strokes - 2005

№

Артикул

Название
1

A11341152000 L.H. Crankcase Cover

L.H. Crankcase Cover

11 080 ₽
2

A11361152000 L.H. Crankcase Rear Cover

L.H. Crankcase Rear Cover

3 310 ₽
3

A11359152000 L.H. Cover Gasket

L.H. Cover Gasket

1 330 ₽
4

A9350005010 Pan Head Phillips Bolt M5 x 10

Pan Head Phillips Bolt M5 x 10

310 ₽
5

A87710152000 Shaft Sticker

Shaft Sticker

470 ₽
6

A941110508010 Spring Washer (5 x 8 x 1)

Spring Washer (5 x 8 x 1)

310 ₽
7

A9350005008 Pan Head Phillips Bolt M5 x 8

Pan Head Phillips Bolt M5 x 8

310 ₽
8

A31100152000 A.C. Generator Ass'y

A.C. Generator Ass'y

23 350 ₽
9

A31110152000 Fly Wheel Comp

Fly Wheel Comp

13 000 ₽
10

A31120152000 Startor Comp

Startor Comp

17 980 ₽
11

A32963152000 Wire Bracket 2

Wire Bracket 2

950 ₽
12

A9100006070 Hex. Socket Bolt M6 x 70

Hex. Socket Bolt M6 x 70

970 ₽
13

A32961152000 A.C. Generator Cord Clamper

A.C. Generator Cord Clamper

950 ₽
14

A90084108000 A.C. Generator Cap (14 mm)

A.C. Generator Cap (14 mm)

1 150 ₽
15

A90087108000 A.C. Generator Cap (30 mm)

A.C. Generator Cap (30 mm)

1 490 ₽
16

A941051225023 Plain Washer

Plain Washer

0 ₽
17

A9350006012 Pan Head Phillips Bolt M6 x 12

Pan Head Phillips Bolt M6 x 12

310 ₽
18

A32962152000 Wire Bracket 1

Wire Bracket 1

630 ₽
19

A91327120000 Oil-Ring

Oil-Ring

660 ₽
20

A91313108000 Oil Ring

Oil Ring

660 ₽
21

A941110610015 Spring Washer (6 x 10 x 1.5)

Spring Washer (6 x 10 x 1.5)

310 ₽
22

A9405010000 Hex. Flanged Nut With Serration M10

Hex. Flanged Nut With Serration M10

330 ₽
23

A9430108120 Dowel Pin (8 x 12)

Dowel Pin (8 x 12)

380 ₽
24

A9350006016 Pan Head Phillips Bolt M6 x 16

Pan Head Phillips Bolt M6 x 16

310 ₽
25

A9100006028 Hex. Socket Bolt M6 x 28

Hex. Socket Bolt M6 x 28

530 ₽
26

A9100006050 Hex. Socket Bolt M6 x 50

Hex. Socket Bolt M6 x 50

610 ₽
27

A9100006032 Hex. Socket Bolt M6 x 32

Hex. Socket Bolt M6 x 32

610 ₽
