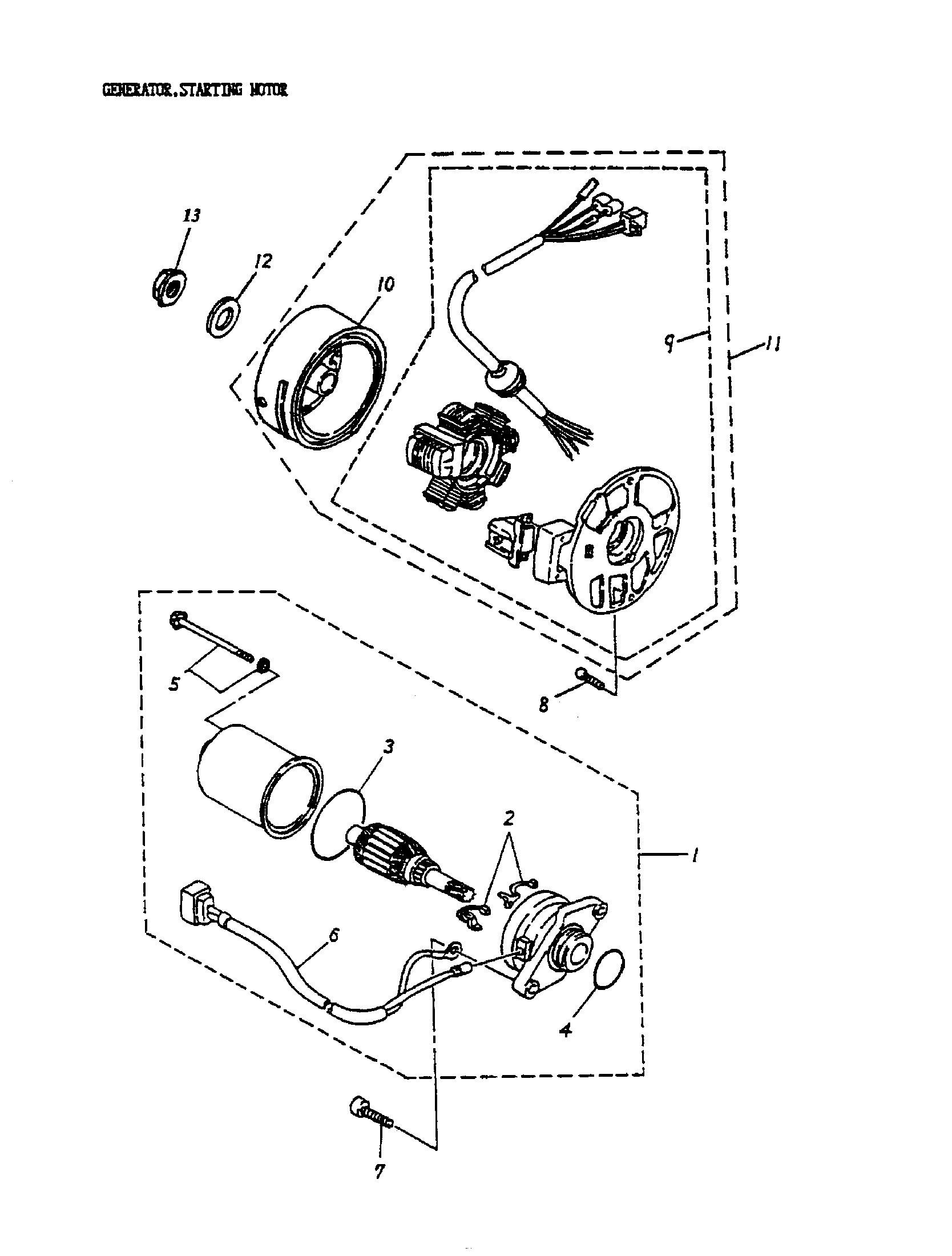

04- Generator, Starting Motor для BRP Mini DS 50 2-strokes - 2005
-
№АртикулНазвание
-
1A31200116000 Starting Motor Ass'yStarting Motor Ass'y
-
2A31201104000 Brush SetBrush Set
-
3A91342104000 Oil RingOil Ring
-
4A91323104000 Oil RingOil Ring
-
5A90115104000 Bolt SetBolt Set
-
6A31202116000 Cord CompCord Comp
-
7A9100006020 Hex. Socket Bolt M6 x 20Hex. Socket Bolt M6 x 20
-
8A9100006015 Hex. Socket Bolt M6 x 15Hex. Socket Bolt M6 x 15
-
9A31120116000 Stator CompStator Comp
-
10A31110116000 Generator FlywheelGenerator Flywheel
-
11A31100116000 Generator Ass'yGenerator Ass'y
-
12A941011022020 Plain Washer (10 x 22 x 2)Plain Washer (10 x 22 x 2)
-
13A9405010000 Hex. Flanged Nut With Serration M10Hex. Flanged Nut With Serration M10
