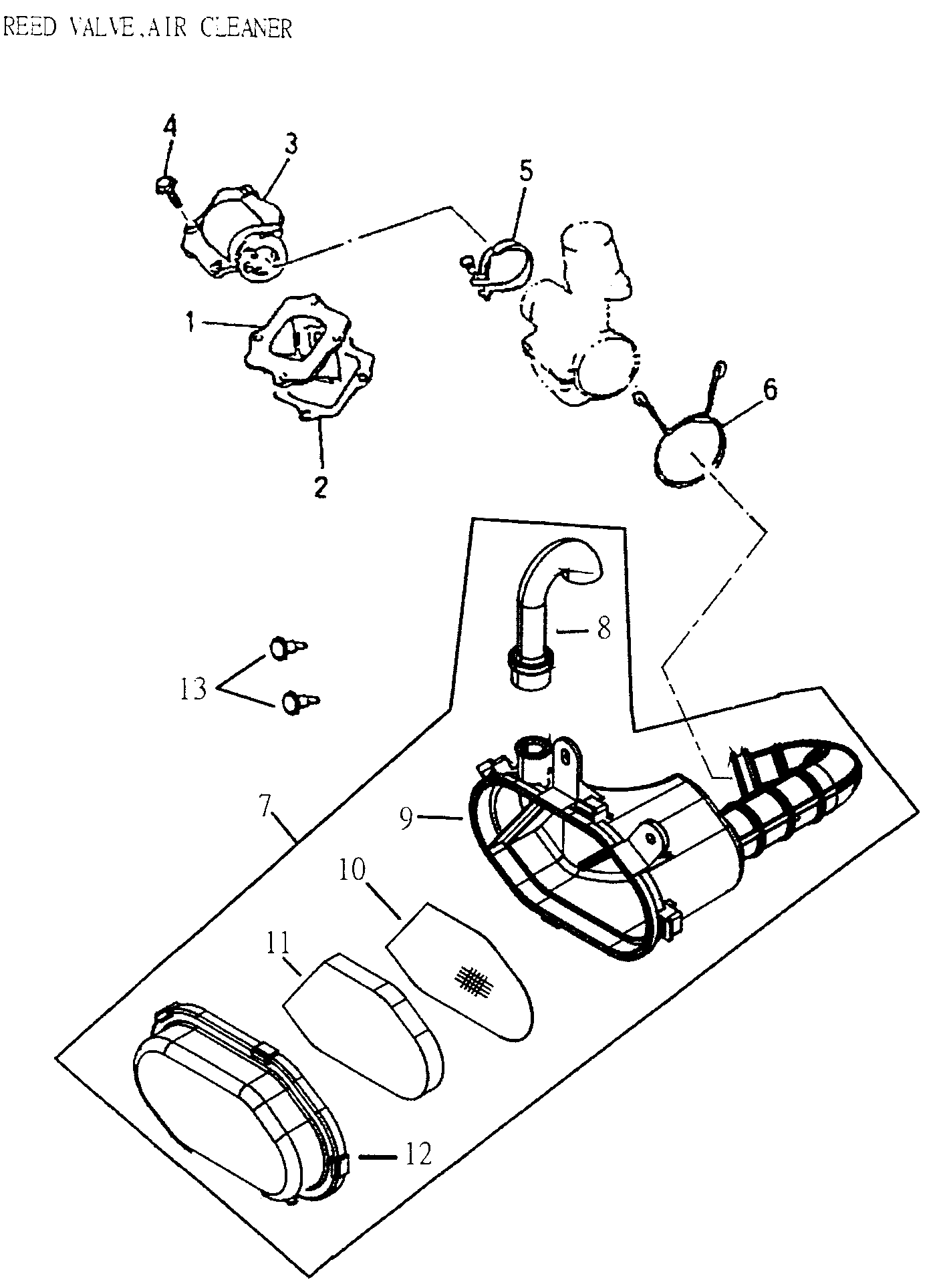

01- Reed Valve, Air Cleaner для BRP Mini DS 50 2-strokes - 2005
-
№АртикулНазвание
-
1A14100116000 Reed Valve Ass'yReed Valve Ass'y
-
2A17111116000 Reed Valve GasketReed Valve Gasket
-
3A17100116000 Intake ManifoldIntake Manifold
-
4A960000601808 Hex. Washer Face Bolt M6 x 18Hex. Washer Face Bolt M6 x 18
-
5A14110104000 Intake Manifold Hose ClampIntake Manifold Hose Clamp
-
6A9451040000 ClipClip
-
7A17200166000 Air Cleaner Ass'yAir Cleaner Ass'y
-
9A17206166000 Air Cleaner BaseAir Cleaner Base
-
10A17210166000 Air Cleaner Net FilterAir Cleaner Net Filter
-
11A17205166000 Air Cleaner ElementAir Cleaner Element
-
12A17207166000 Air Cleaner CoverAir Cleaner Cover
-
13A901110601218C Ladder BoltLadder Bolt
