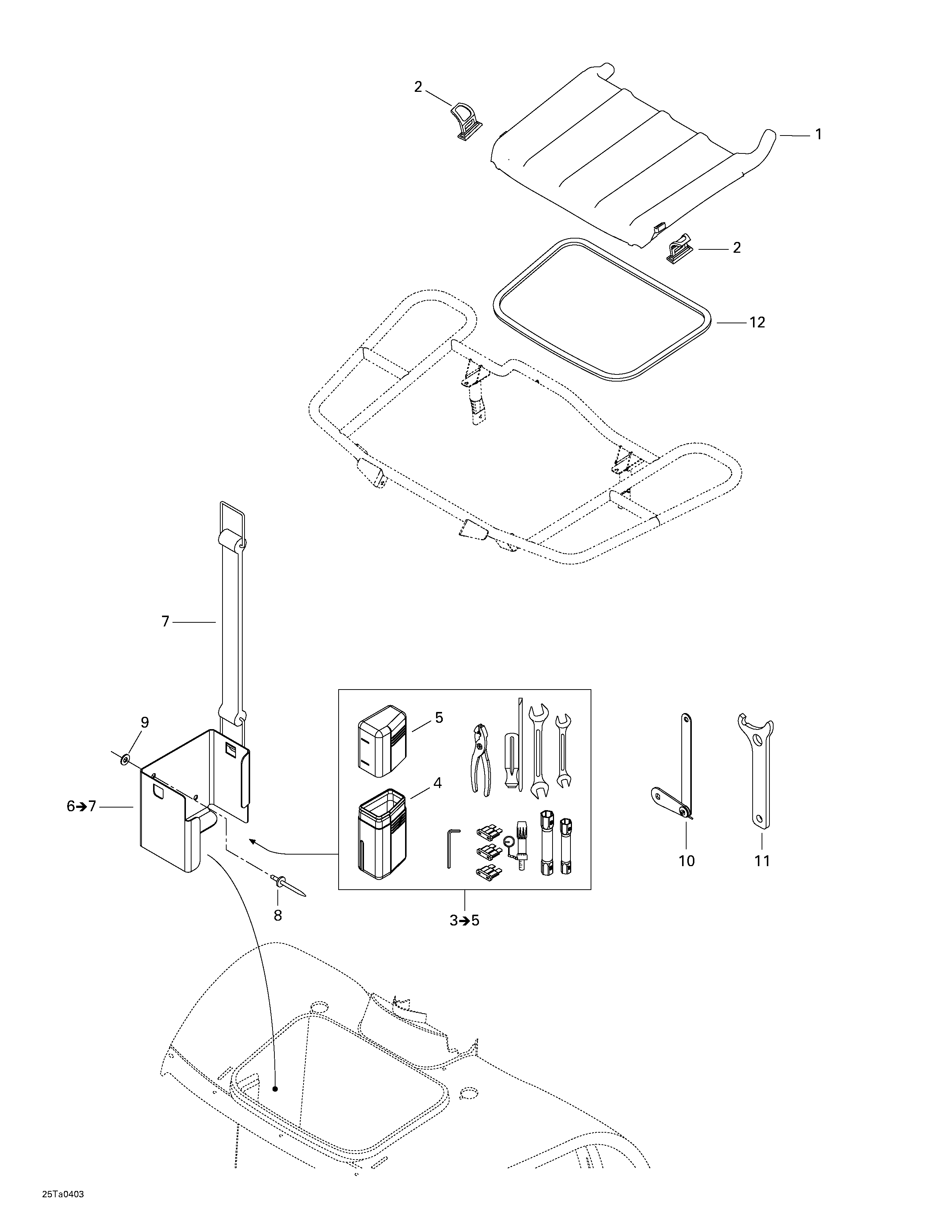

09- Front Tray для BRP Traxter XL - 2004
-
№АртикулНазвание
-
1708200033 Storage CoverStorage Cover
-
2708200003 Storage Cover LatchStorage Cover Latch
-
3704700084 Tool Kit. Includes 3 - 5.Tool Kit. Includes 3 - 5.
-
4708200041 Tool BoxTool Box
-
6708200007 Tray Support Ass'y. Includes 6 - 7.Tray Support Ass'y. Includes 6 - 7.
-
7293850080 Rubber StrapRubber Strap
-
8390402300 Pop Rivet 3/16''Pop Rivet 3/16''
-
9391301600 WasherWasher
-
10529035599 Wrench (Transmission)Wrench (Transmission)
-
11529032900 Wrench (Shock)Wrench (Shock)
-
12293200017 Neoprene SealNeoprene Seal
