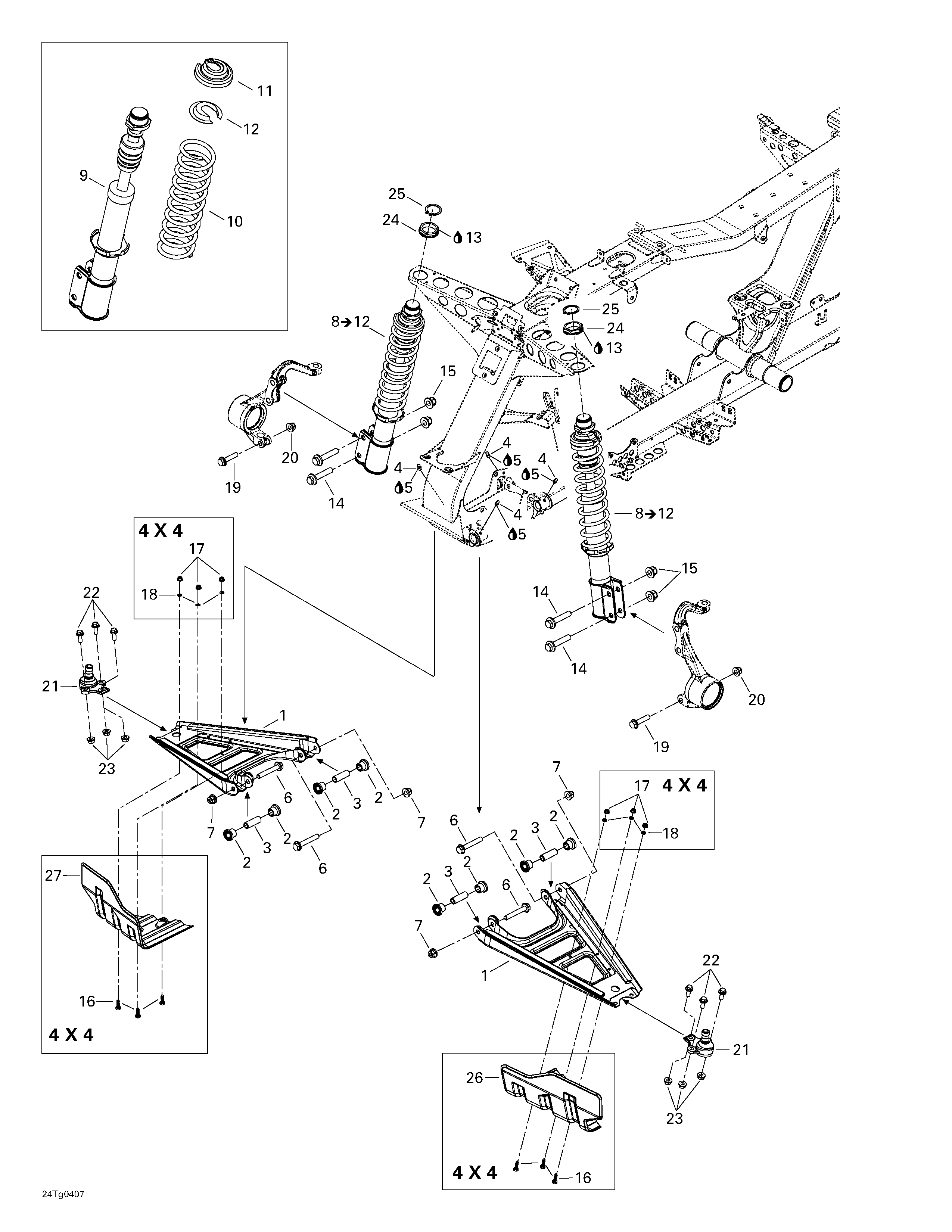

07- Front Suspension для BRP Outlander 400 XT 4 X 4 - 2004

  • №
    Артикул
    Название
  • 1
    706200229 Suspension arm
    Suspension arm
  • 2
    706200181 Cushion
    Cushion
  • 3
    706200182 Inner bushing
    Inner bushing
  • 4
    408200700 Grease fitting
    Grease fitting
  • 5
    293550010 Synthetic grease, 400 g
    Synthetic grease, 400 g
  • 6
    207606546 Hex flanged screw M10 x 65
    Hex flanged screw M10 x 65
  • 7
    233201416 Hex flanged elastic nut M10
    Hex flanged elastic nut M10
  • 9
    706200215 Front shock
    Front shock
  • 10
    706200216 Front spring. STD 2 x 4, COLOR STD 4 x 4, XT 4 x 4
    Front spring. STD 2 x 4, COLOR STD 4 x 4, XT 4 x 4
  • 706200355 Front spring. CAMO STD 4 x 4, XT 4 x 4
    Front spring. CAMO STD 4 x 4, XT 4 x 4
  • 11
    706200218 Spring stopper
    Spring stopper
  • 12
    706200219 Cap
    Cap
  • 13
    293800060 Loctite 243, 10 ml
    Loctite 243, 10 ml
  • 14
    207626046 Hex flanged screw M12 x 60
    Hex flanged screw M12 x 60
  • 15
    233221414 Hex flanged elastic nut M12
    Hex flanged elastic nut M12
  • 16
    207151644 Hex screw M5 x 16. STD 4 x 4, XT 4 x 4
    Hex screw M5 x 16. STD 4 x 4, XT 4 x 4
  • 17
    233251414 Hex flanged elastic nut M5. STD 4 x 4, XT 4 x 4
    Hex flanged elastic nut M5. STD 4 x 4, XT 4 x 4
  • 18
    391301700 Washer. STD 4 x 4, XT 4 x 4
    Washer. STD 4 x 4, XT 4 x 4
  • 19
    207604544 Hex flanged screw M10 x 45
    Hex flanged screw M10 x 45
  • 20
    233201414 Hex flanged elastic nut M10
    Hex flanged elastic nut M10
  • 21
    706200231 Joint attach
    Joint attach
  • 22
    207682544 Hex flanged screw M8 x 25
    Hex flanged screw M8 x 25
  • 23
    233281414 Hex flanged elastic nut M8
    Hex flanged elastic nut M8
  • 24
    706200210 Nut
    Nut
  • 25
    293370009 Circlip 32 mm
    Circlip 32 mm
  • 26
    706200213 L.h. protector. STD 4 x 4, XT 4 x 4
    L.h. protector. STD 4 x 4, XT 4 x 4
  • 27
    706200214 R.h. protector. STD 4 x 4, XT 4 x 4
    R.h. protector. STD 4 x 4, XT 4 x 4
