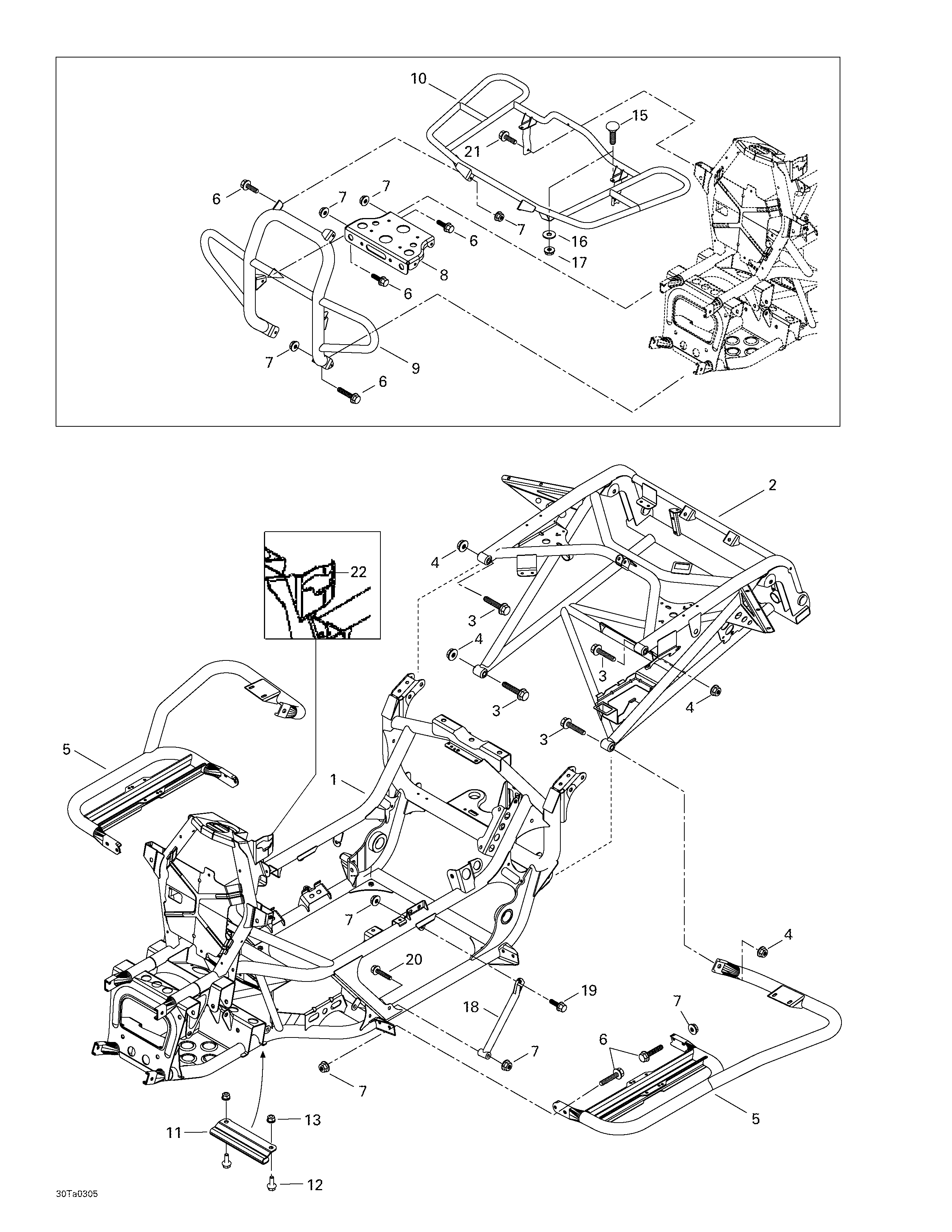

09- Frame And Luggage Racks для BRP Traxter XL, 7571 - 2003

  • №
    Артикул
    Название
  • 1
    705200545 Frame (Black)
    Frame (Black)
  • 2
    705200567 Frame Extention (Black)
    Frame Extention (Black)
  • 3
    207606044 Screw Hex. Flanged M10 x 60
    Screw Hex. Flanged M10 x 60
  • 4
    233201414 Elastic Flanged Nut M10
    Elastic Flanged Nut M10
  • 5
    705200329 Footrest LH (Grey)
    Footrest LH (Grey)
  • 705200331 Footrest RH (Grey)
    Footrest RH (Grey)
  • 6
    207682044 Hex. Flanged Screw M8 x 20
    Hex. Flanged Screw M8 x 20
  • 7
    233281414 Elastic Flanged Nut M8
    Elastic Flanged Nut M8
  • 8
    705200196 Winch Latch (Black)
    Winch Latch (Black)
  • 9
    705000001 Front Bumper (Grey)
    Front Bumper (Grey)
  • 10
    703500264 Front Luggage Rack
    Front Luggage Rack
  • 11
    705200575 Bracket
    Bracket
  • 12
    207661644 Hex. Flanged Screw M6 x 16
    Hex. Flanged Screw M6 x 16
  • 13
    233261414 Elastic Flanged Nut M6
    Elastic Flanged Nut M6
  • 14
    250000065 Screw Hex. Flanged M10 x 60
    Screw Hex. Flanged M10 x 60
  • 15
    250000035 Carriage Bolt M6 x 25
    Carriage Bolt M6 x 25
  • 16
    224060201 Flat Washer
    Flat Washer
  • 17
    233261414 Elastic Flanged Nut M6
    Elastic Flanged Nut M6
  • 18
    705200143 Removable Brace
    Removable Brace
  • 19
    207682544 Screw Hex. Flanged M8 x 20
    Screw Hex. Flanged M8 x 20
  • 20
    207685044 Screw Hex. Flanged M8 x 50
    Screw Hex. Flanged M8 x 50
  • 21
    207582044 Screw Hex. Flanged M8 x 20 (Scotch Grip)
    Screw Hex. Flanged M8 x 20 (Scotch Grip)
  • 22
    705200351 Shift Patern
    Shift Patern
