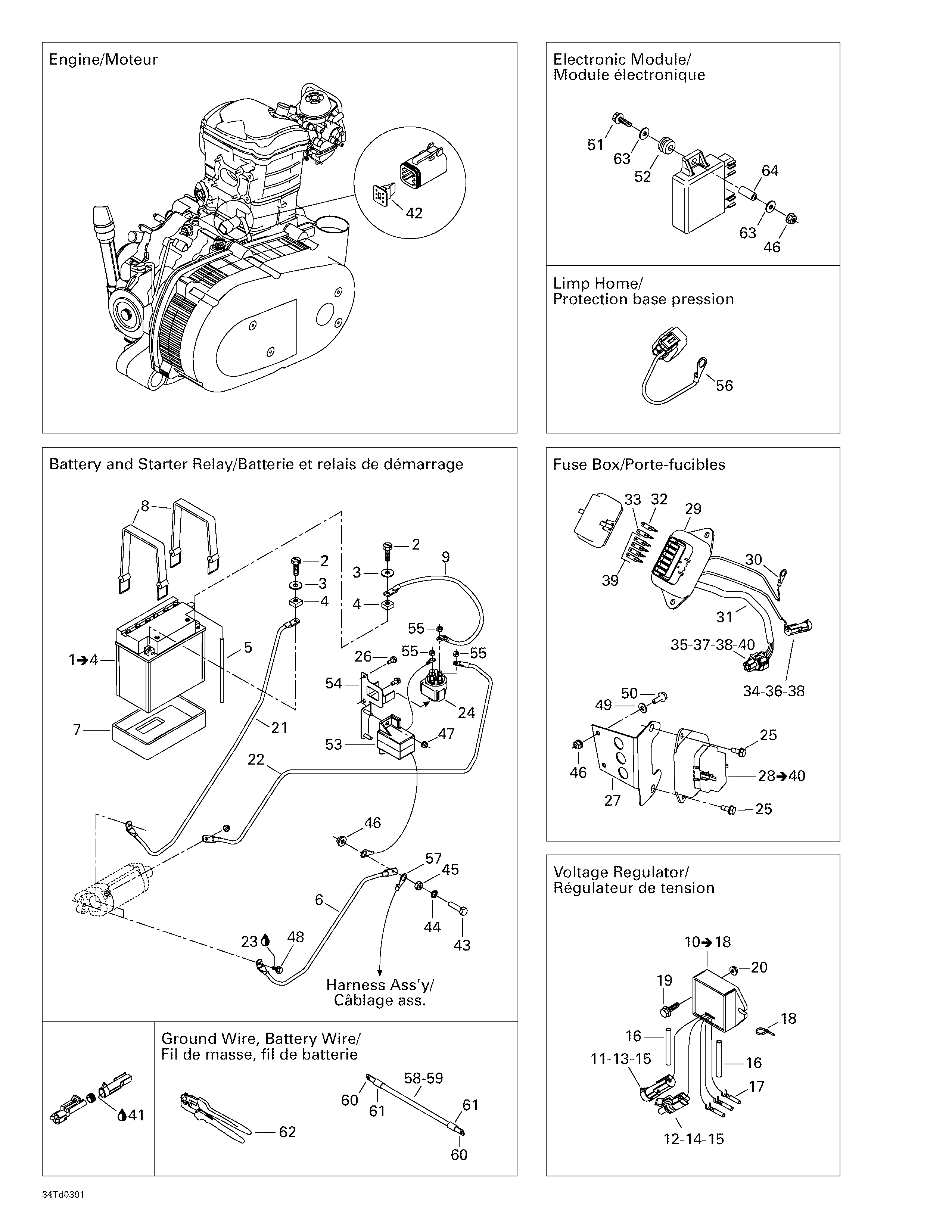

10- Battery And Electrical Accessories для BRP Quest 650 - 2003

№

Артикул

Название
1

278001756 Battery. Includes 1 - 4.

Battery. Includes 1 - 4.
2

211000045 Hex. Screw

Hex. Screw
3

211200018 Flat Washer 6 mm

Flat Washer 6 mm
4

211100022 Nut M6

Nut M6
5

415110000 Polyurethane Hose 5.2 mm

Polyurethane Hose 5.2 mm
7

278001746 Battery Lower Pad

Battery Lower Pad
8

293850021 Rubber Strap

Rubber Strap
10

710000169 Voltage Regulator. Includes 10 - 18.

Voltage Regulator. Includes 10 - 18.
11

278000222 Male Terminal

Male Terminal
12

278000223 Female Terminal

Female Terminal
13

278000161 Male Terminal Housing (1 Circuit)

Male Terminal Housing (1 Circuit)
14

278000219 Female Terminal Housing (1 Circuit)

Female Terminal Housing (1 Circuit)
15

278000218 Wire Seal

Wire Seal
16

409901300 Vinyl Temp (meter)

Vinyl Temp (meter)
17

710000034 Female Terminal

Female Terminal
18

293750001 Tie Rap 94 mm

Tie Rap 94 mm
19

207662044 Hex. Flanged Screw M6 x 20

Hex. Flanged Screw M6 x 20
20

233261414 Elastic Flanged Nut M6. Quest STD 500. Quest STD 650.

Elastic Flanged Nut M6. Quest STD 500. Quest STD 650.
21

710000211 Ground Cable

Ground Cable
23

293800060 Loctite 243, 10 ml

Loctite 243, 10 ml
24

710000344 Starter Relay

Starter Relay
25

210261680 Hex. Forming Screw M6 x 16

Hex. Forming Screw M6 x 16
26

250000061 Hex. Screw M6.3 x 19

Hex. Screw M6.3 x 19
27

710000138 Module Bracket

Module Bracket
28

710000212 Fuse Hoder. Includes 28 - 40.

Fuse Hoder. Includes 28 - 40.
29

710000213 Fuse Box

Fuse Box
30

278001392 Open Barrel

Open Barrel
31

515175442 Housing (Foot)

Housing (Foot)
32

410917200 Fuse (30 Amperes)

Fuse (30 Amperes)
33

278001143 Fuse (20 Amperes)

Fuse (20 Amperes)
34

409004300 Male Terminal

Male Terminal
35

409007300 Female Terminal (14 auge)

Female Terminal (14 auge)
36

278000161 Male Terminal Housing (1 Circuit)

Male Terminal Housing (1 Circuit)
37

278000218 Wire Seal

Wire Seal
38

710000048 Wire Seal

Wire Seal
39

278000343 Fuse (15 Amperes)

Fuse (15 Amperes)
40

710000106 Female Terminal Housing (5 Circuit)

Female Terminal Housing (5 Circuit)
41

293550004 Dielectric Grease, 150 g

Dielectric Grease, 150 g
42

278000737 (Female) Secondary Lock (6 Circuits) (Deutsch)

(Female) Secondary Lock (6 Circuits) (Deutsch)
43

207162544 Hex. Screw M6 x 25

Hex. Screw M6 x 25
44

234461608 Serrated Lock Washer M6

Serrated Lock Washer M6
45

232061414 Hex. Nut M6

Hex. Nut M6
46

233261414 Elastic Flanged Nut M6

Elastic Flanged Nut M6
47

233251414 Elastic Flanged Nut M5

Elastic Flanged Nut M5
48

207661644 Hex. Flanged Screw M6 x 16

Hex. Flanged Screw M6 x 16
49

391301700 Washer

Washer
50

207152044 Hex. Screw M5 x 20

Hex. Screw M5 x 20
51

207663044 Hex. Flanged Screw M6 x 25

Hex. Flanged Screw M6 x 25
52

293720053 Grommet

Grommet
53

710000317 Coil External

Coil External
54

710000318 Support

Support
55

232561600 Elastic Stop Nut M6

Elastic Stop Nut M6
56

710000293 Open Barrel

Open Barrel
57

409012600 Open Barrel

Open Barrel
58

278001680 Ground Cable Battery (no. 6) (Meter)

Ground Cable Battery (no. 6) (Meter)
59

278001690 Red Cable Battery (no. 6) (Meter)

Red Cable Battery (no. 6) (Meter)
60

278001682 Flat Terminal (Small Hole)

Flat Terminal (Small Hole)
278001683 Terminal 45 Deg. (Small Hole)

Terminal 45 Deg. (Small Hole)
278001684 Terminal 90 Deg. (Small Hole)

Terminal 90 Deg. (Small Hole)
278001685 Flat Terminal (Big Hole)

Flat Terminal (Big Hole)
278001686 Terminal 45 Deg. (Big Hole)

Terminal 45 Deg. (Big Hole)
278001687 Terminal 90 Deg. (Big Hole)

Terminal 90 Deg. (Big Hole)
278001688 Flat Terminal

Flat Terminal
278001776 Terminal 30 Deg. (2 holes)

Terminal 30 Deg. (2 holes)
61

278001692 Heat Shrink

Heat Shrink
62

529035730 Crimp Plier

Crimp Plier
63

224060201 Flat washer

Flat washer
64

293900045 Bushing

Bushing
