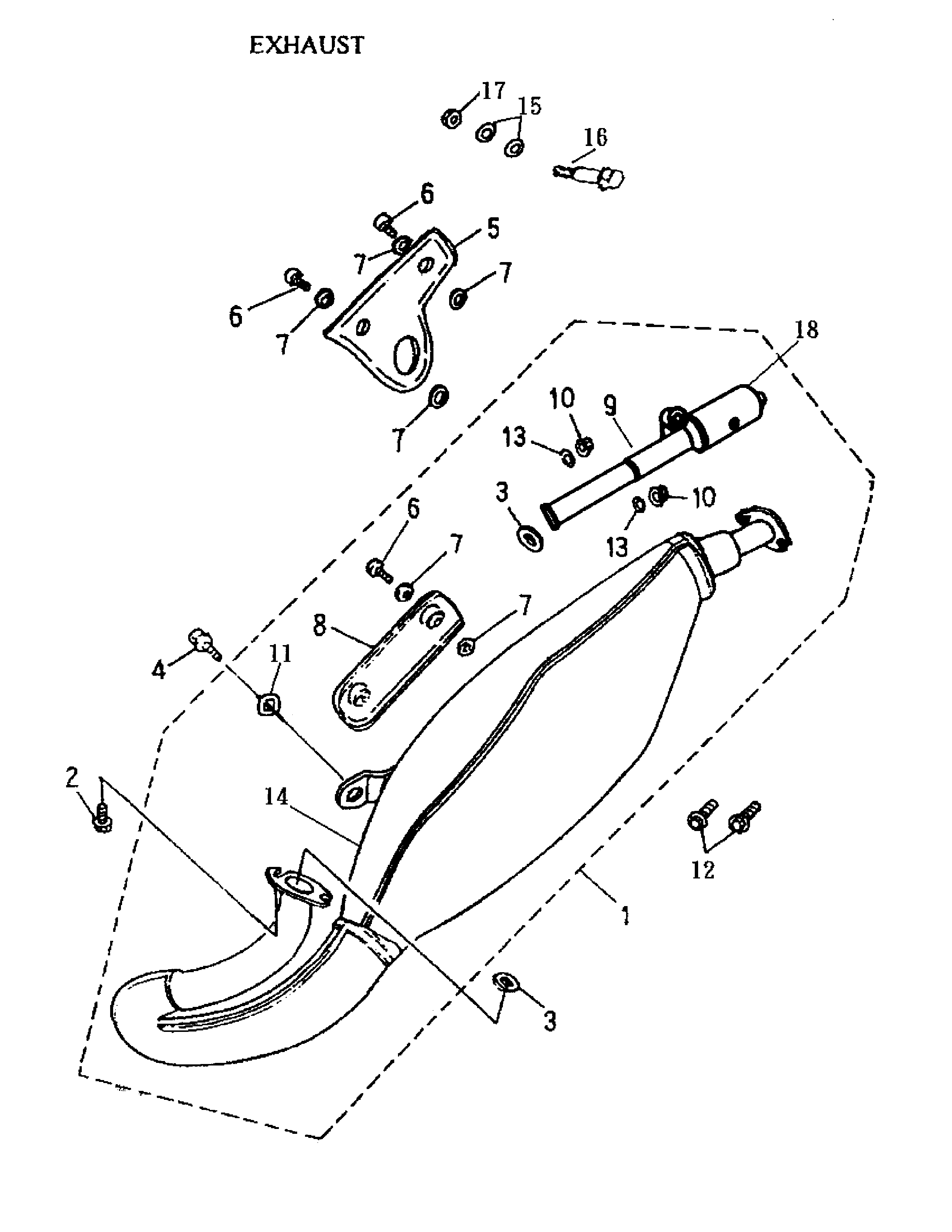

01- Exhaust 170a-07 для BRP Mini DS 90 2-strokes - 2003
-
№АртикулНазвание
-
1A1830014600D Exhaust Pipe Ass'yExhaust Pipe Ass'y
-
2A920010601810 Hex. Head Phillips Bolt M6 x 18Hex. Head Phillips Bolt M6 x 18
-
3A18291101000 Exhaust Pipe GasketExhaust Pipe Gasket
-
4A960000802512 Hex. Washer Face Bolt M8 x 25Hex. Washer Face Bolt M8 x 25
-
5A18301145000 InsolatorInsolator
-
6A960000601208 Hex. Washer Face Bolt M6 x 12Hex. Washer Face Bolt M6 x 12
-
7A18292104000 Muffler Shroud PackingMuffler Shroud Packing
-
8A18318145000 Muffler ShroudMuffler Shroud
-
9A1832114500C Tail of MufflerTail of Muffler
-
10233261414 Hex. Flanged Nut With Serration M6Hex. Flanged Nut With Serration M6
-
11A941110814520 Spring WasherSpring Washer
-
12A960000602510 Hex. Washer Face Bolt M6 x 25Hex. Washer Face Bolt M6 x 25
-
13A941010614020 Plain Washer (6 x 14 x 2)Plain Washer (6 x 14 x 2)
-
14A1831114600A Front Exhaust PipeFront Exhaust Pipe
-
15A941051022025G Plain WasherPlain Washer
-
16A960001004814G Hex. Washer Face Bolt M10 x 48Hex. Washer Face Bolt M10 x 48
-
17A9035010000G Nylon Nut M10Nylon Nut M10
-
18A18330145000 Spark ArresterSpark Arrester
