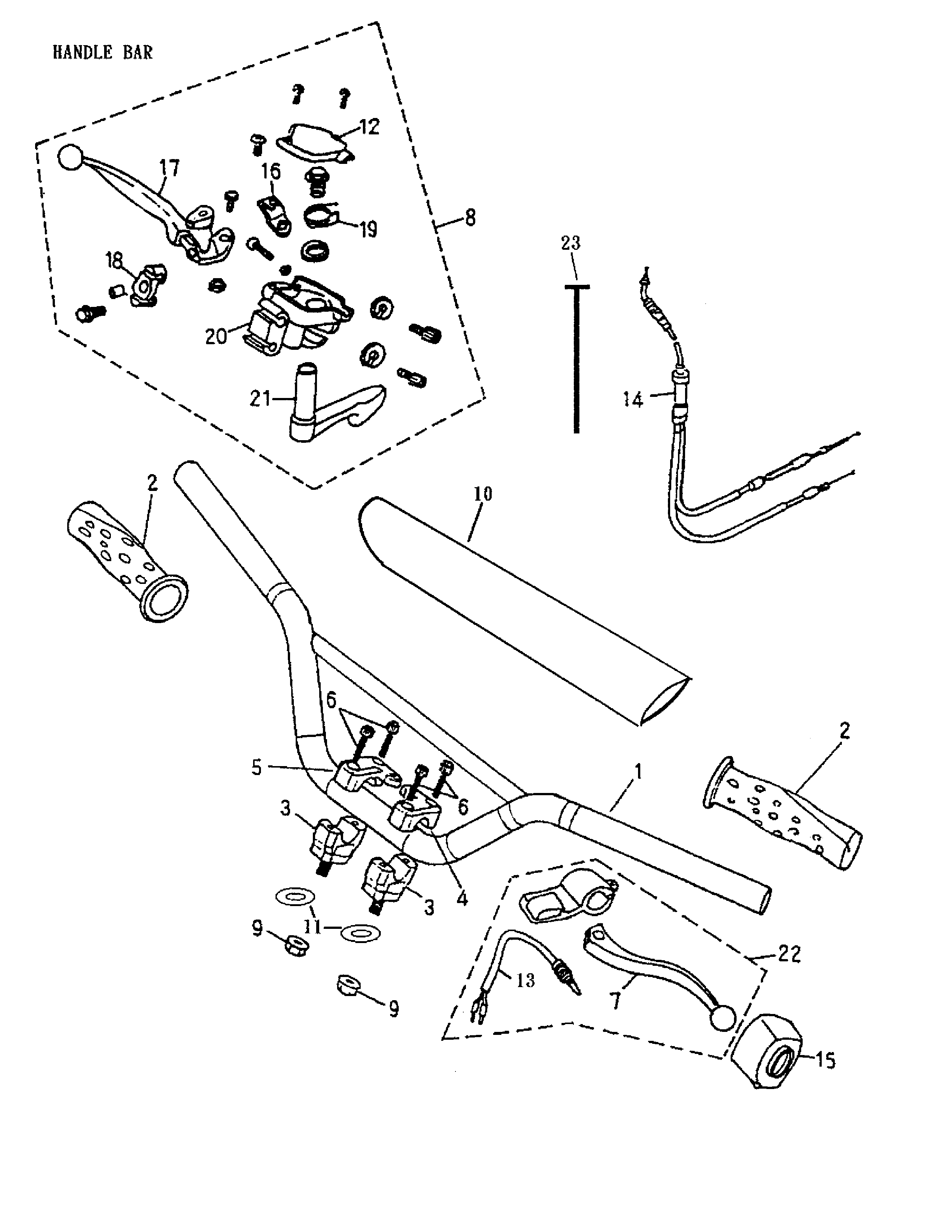

07- Handlebar 166a-21 для BRP Mini DS 50 2-strokes - 2003
-
№АртикулНазвание
-
1A5310014500C Handle BarHandle Bar
-
2A53166101000 Handle GripHandle Grip
-
3A5310114500A Handle Bar Bottom ClampHandle Bar Bottom Clamp
-
4A5310214500A Left Handle Bar ClampLeft Handle Bar Clamp
-
5A5310314500A Right Handle Bar ClampRight Handle Bar Clamp
-
6A9100006025 Hex. Socket Bolt (M6 x 25)Hex. Socket Bolt (M6 x 25)
-
7A53178145000 Left LeverLeft Lever
-
8A5317014500A Right Lever Ass'yRight Lever Ass'y
-
9A9035010000G Nylon Nut (M10)Nylon Nut (M10)
-
10A53132166000 Cross Bar Sponge. DS 50 2-Stroke.Cross Bar Sponge. DS 50 2-Stroke.
-
A53132166000DA Cross Bar Sponge (Grey). Quest 50 2-STroke.Cross Bar Sponge (Grey). Quest 50 2-STroke.
-
11A941051022025G Plain WasherPlain Washer
-
12A5317114500A Lever Body CoverLever Body Cover
-
13A35345145000 LH Brake Switch WireLH Brake Switch Wire
-
14A17910145001 Throttle CableThrottle Cable
-
15A3520014500A LH Handle Switch Ass'yLH Handle Switch Ass'y
-
16A53174145000 Throttle Cable BracketThrottle Cable Bracket
-
17A53175145000 Right LeverRight Lever
-
18A53173145000 Cable BracketCable Bracket
-
19A53184145000 Throtte Lever SpringThrotte Lever Spring
-
20A53172145000 Lever BracketLever Bracket
-
21A53180145000 Throttle LeverThrottle Lever
-
22A53179155000 Left Lever Ass'yLeft Lever Ass'y
-
23A9066910100A Tie RapTie Rap
