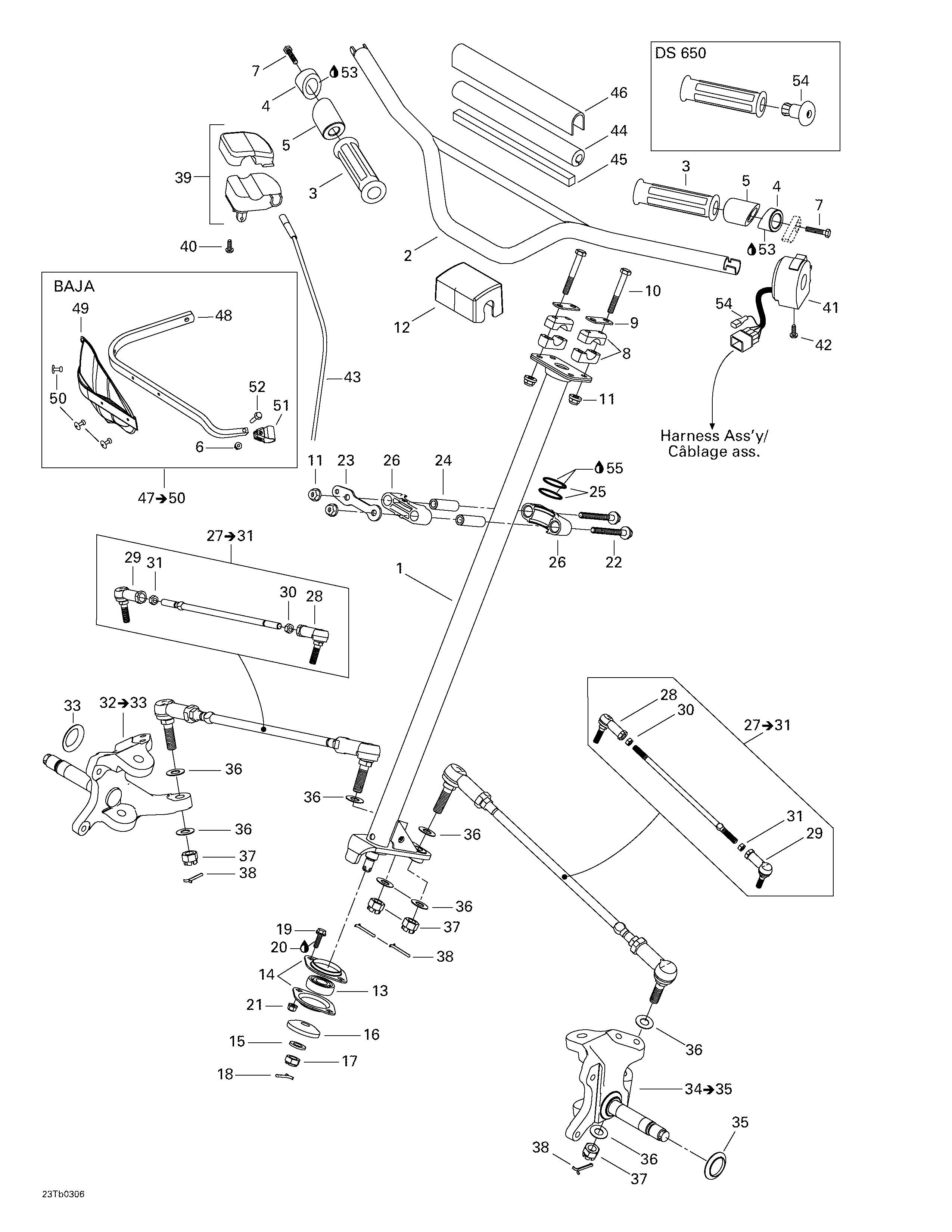

07- Steering System для BRP DS 650 Baja - 2003

  • №
    Артикул
    Название
  • 1
    709400067 Main Tube
    Main Tube
  • 2
    709400153 Handle Bar
    Handle Bar
  • 3
    709400157 Handle Grip, Black
    Handle Grip, Black
  • 4
    709400161 Bracket. DS 650 Baja.
    Bracket. DS 650 Baja.
  • 5
    709400162 Bracket. DS 650 Baja.
    Bracket. DS 650 Baja.
  • 6
    233261414 Elastic Flanged Nut. DS 650 Baja.
    Elastic Flanged Nut. DS 650 Baja.
  • 7
    205384044 Socket Head Screw. DS 650 Baja.
    Socket Head Screw. DS 650 Baja.
  • 8
    506151622 Steering Support
    Steering Support
  • 9
    506151196 Reinforcement
    Reinforcement
  • 10
    207086044 Hex. Screw M8 x 60
    Hex. Screw M8 x 60
  • 11
    233281414 Elastic Flanged Nut M8
    Elastic Flanged Nut M8
  • 12
    705000371 Cover
    Cover
  • 13
    709400151 Thrust Bearing
    Thrust Bearing
  • 14
    709400152 Thrust Washer
    Thrust Washer
  • 15
    234021410 Flat Washer 12 mm
    Flat Washer 12 mm
  • 16
    250200017 Washer
    Washer
  • 17
    232220413 Hex. Castellated Nut M12
    Hex. Castellated Nut M12
  • 18
    211400017 Cotter Pin
    Cotter Pin
  • 19
    207662044 Hex. Flanged Screw M6 x 20
    Hex. Flanged Screw M6 x 20
  • 20
    293800060 Loctite 243, 10 ml
    Loctite 243, 10 ml
  • 21
    233261414 Elastic Flanged Stop Nut M6
    Elastic Flanged Stop Nut M6
  • 22
    207687544 Hex. Flanged Screw M8 x 75
    Hex. Flanged Screw M8 x 75
  • 23
    709400053 Stopper Plate
    Stopper Plate
  • 24
    709400072 Bushing
    Bushing
  • 25
    293300068 O-Ring
    O-Ring
  • 26
    709400052 Half Bushing
    Half Bushing
  • 27
    709400064 Tie Rod Ass'y. Includes 27 - 31.
    Tie Rod Ass'y. Includes 27 - 31.
  • 28
    709400065 R.H. Ball Joint
    R.H. Ball Joint
  • 29
    709400066 L.H. Ball Joint
    L.H. Ball Joint
  • 30
    732610019 R.H. Jam Nut M12
    R.H. Jam Nut M12
  • 31
    732610020 L.H. Jam Nut M12
    L.H. Jam Nut M12
  • 32
    709400043 R.H. Knuckle. Includes 32 - 33.
    R.H. Knuckle. Includes 32 - 33.
  • 33
    705400056 Wear Ring
    Wear Ring
  • 34
    709400044 L.H. Knuckle. Includes 34 - 35.
    L.H. Knuckle. Includes 34 - 35.
  • 35
    705400056 Wear Ring
    Wear Ring
  • 36
    706200281 Hardened Washer
    Hardened Washer
  • 37
    232221414 Hex. Castellated Nut M12
    Hex. Castellated Nut M12
  • 38
    211400013 Cotter Pin
    Cotter Pin
  • 39
    709400016 Throttle Handle
    Throttle Handle
  • 40
    205353060 Screw M5 x 30
    Screw M5 x 30
  • 41
    710000072 Multi function Switch
    Multi function Switch
  • 42
    205453046 Screw M5 x 30
    Screw M5 x 30
  • 43
    709400048 Throttle Cable
    Throttle Cable
  • 44
    709400087 Steering Cover Foam
    Steering Cover Foam
  • 45
    709400094 Foam Insert
    Foam Insert
  • 46
    709400158 Steering Cover. DS 650 Baja.
    Steering Cover. DS 650 Baja.
  • 709400198 Steering Cover. DS 650.
    Steering Cover. DS 650.
  • 47
    709400177 R.H. Protector Ass'y. Includes 47 - 50. DS 650 Baja.
    R.H. Protector Ass'y. Includes 47 - 50. DS 650 Baja.
  • 709400179 L.H. Protector Ass'y. DS 650 Baja.
    L.H. Protector Ass'y. DS 650 Baja.
  • 48
    709400159 R.H. Handle Protector. DS 650 Baja.
    R.H. Handle Protector. DS 650 Baja.
  • 709400160 L.H. Handle Protector. DS 650 Baja.
    L.H. Handle Protector. DS 650 Baja.
  • 49
    705000461 Protector Plate. DS 650 Baja.
    Protector Plate. DS 650 Baja.
  • 50
    293150103 Pop Rivet. DS 650 Baja.
    Pop Rivet. DS 650 Baja.
  • 51
    709400174 Handle Bracket. DS 650 Baja.
    Handle Bracket. DS 650 Baja.
  • 52
    207663044 Hex. Flanged Screw. DS 650 Baja.
    Hex. Flanged Screw. DS 650 Baja.
  • 53
    293800100 Loctite 406
    Loctite 406
  • 54
    709400189 End Piece. DS 650.
    End Piece. DS 650.
  • 55
    293600042 Synthetic Grease, 400 g
    Synthetic Grease, 400 g
