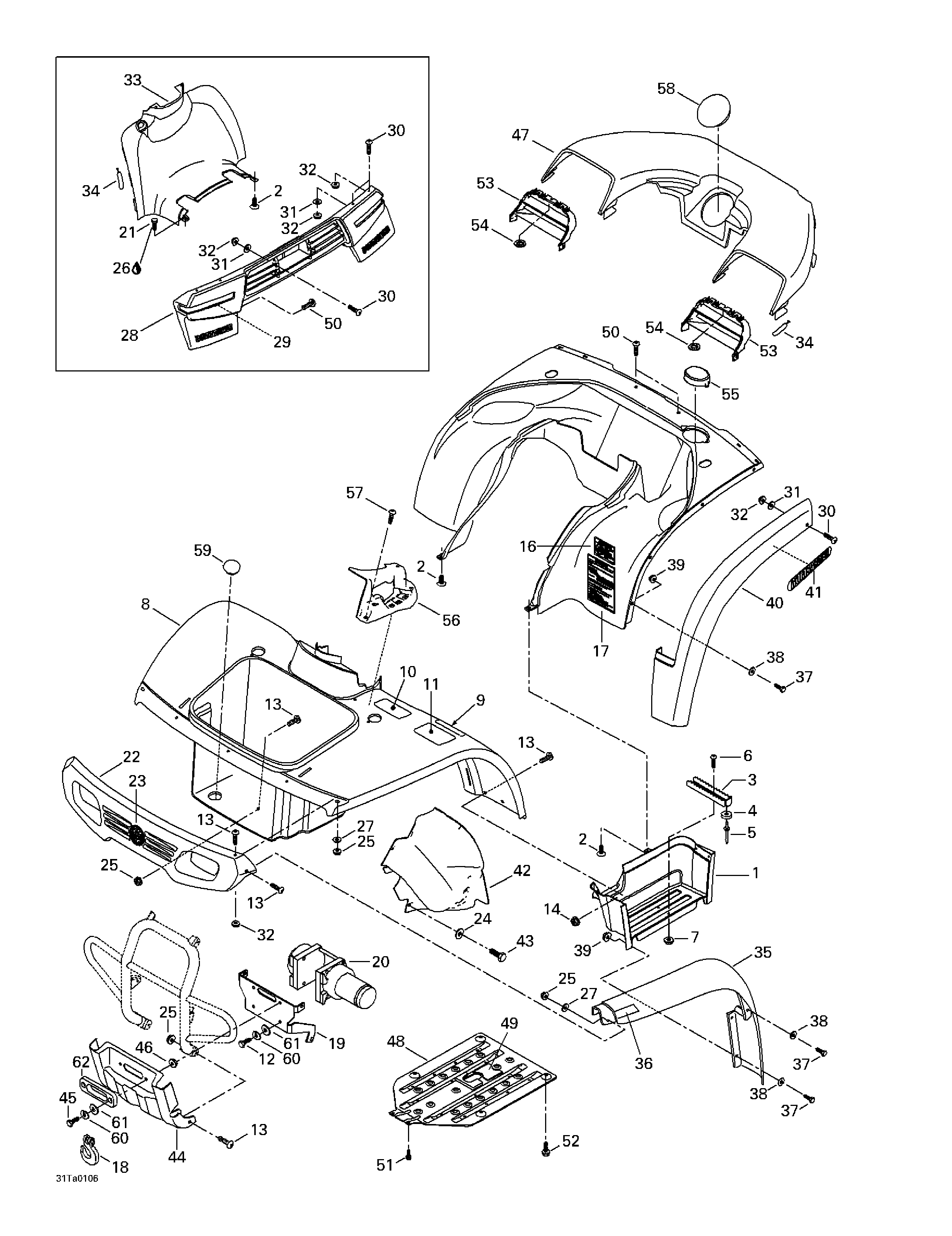

09- Body And Accessories для BRP Traxter, 7459/7460/7465/7466 - 2001

  • №
    Артикул
    Название
  • 1
    705000017 Foot Well RH
    Foot Well RH
  • 705000018 Foot Well LH
    Foot Well LH
  • 2
    293730011 Dart
    Dart
  • 3
    705000279 Foot Peg. (7459-7460-7467-7468-7472-7481)
    Foot Peg. (7459-7460-7467-7468-7472-7481)
  • 705000228 Foot Peg. (7465 - 7466) Traxter.
    Foot Peg. (7465 - 7466) Traxter.
  • 4
    415018100 Rubber Stopper. (7465 - 7466) Traxter.
    Rubber Stopper. (7465 - 7466) Traxter.
  • 5
    390400700 Pop Rivet - Black. (7465 - 7466) Traxter.
    Pop Rivet - Black. (7465 - 7466) Traxter.
  • 6
    211000123 Screw Phillips M6 x 20
    Screw Phillips M6 x 20
  • 7
    233261414 Flanged Elastic Nut M6
    Flanged Elastic Nut M6
  • 8
    703500136 Front Fender Kit. Includes 8 - 11. (Red 7459 - 7465) Traxter.
    Front Fender Kit. Includes 8 - 11. (Red 7459 - 7465) Traxter.
  • 703500138 Front Fender Kit. (Green 7460 - 7466) Traxter.
    Front Fender Kit. (Green 7460 - 7466) Traxter.
  • 703500142 Front Fender Kit. (XT Green 7467 - 7481) Traxter XT.
    Front Fender Kit. (XT Green 7467 - 7481) Traxter XT.
  • 703500140 Front Fender Kit. (XT Yellow 7468 - 7472) Traxter XT.
    Front Fender Kit. (XT Yellow 7468 - 7472) Traxter XT.
  • 9
    704900034 Warning Label (Front Left Side). Includes 9 - 10.
    Warning Label (Front Left Side). Includes 9 - 10.
  • 11
    704900007 Warning Label. (Drive Select Lever)
    Warning Label. (Drive Select Lever)
  • 12
    250000041 Socket Screw. Traxter XT.
    Socket Screw. Traxter XT.
  • 13
    211000123 Screw Phillips M6 x 20
    Screw Phillips M6 x 20
  • 14
    233261414 Flanged Elastic Nut M6
    Flanged Elastic Nut M6
  • 15
    703500113 Rear Fender Kit. Includes 15 - 19. (Red 7459 - 7465) Traxter.
    Rear Fender Kit. Includes 15 - 19. (Red 7459 - 7465) Traxter.
  • 703500114 Rear Fender Kit. (Green 7460 - 7466)
    Rear Fender Kit. (Green 7460 - 7466)
  • 703500139 Rear Fender Kit. (XT Yellow 7468 - 7472) Traxter XT.
    Rear Fender Kit. (XT Yellow 7468 - 7472) Traxter XT.
  • 703500141 Rear Fender Kit. (XT Yellow 7467 - 7481) Traxter XT.
    Rear Fender Kit. (XT Yellow 7467 - 7481) Traxter XT.
  • 16
    704900116 Warning Label (Rear Left Side). Includes 16 - 17.
    Warning Label (Rear Left Side). Includes 16 - 17.
  • 704900119 Warning Label (Rear Left Side). Traxter XT.
    Warning Label (Rear Left Side). Traxter XT.
  • 18
    705000195 Winch Hook. Traxter XT.
    Winch Hook. Traxter XT.
  • 19
    705000184 Winch Plate. Traxter XT.
    Winch Plate. Traxter XT.
  • 20
    705000185 Winch. Traxter XT.
    Winch. Traxter XT.
  • 21
    207661244 Screw Hex. Flanged M6 x 12
    Screw Hex. Flanged M6 x 12
  • 22
    703500011 Front Fascia Kit. Includes 22 - 23.
    Front Fascia Kit. Includes 22 - 23.
  • 23
    704900130 Bombardier Logo
    Bombardier Logo
  • 24
    224060201 Flat Washer
    Flat Washer
  • 25
    233261414 Flanged Elastic Nut M6
    Flanged Elastic Nut M6
  • 26
    293800060 Loctite 243, 10 ml
    Loctite 243, 10 ml
  • 27
    224060201 Washer Flat
    Washer Flat
  • 28
    703500012 Rear Fascia Kit. Includes 28 - 29.
    Rear Fascia Kit. Includes 28 - 29.
  • 29
    704900085 Rear Reflector Band RH
    Rear Reflector Band RH
  • 704900086 Rear Reflector Band L.H
    Rear Reflector Band L.H
  • 30
    211000123 Screw Phillips M6 x 20
    Screw Phillips M6 x 20
  • 31
    224060201 Washer Flat
    Washer Flat
  • 32
    233261414 Flanged Elastic Nut M6
    Flanged Elastic Nut M6
  • 33
    705000010 Tank Cover
    Tank Cover
  • 34
    570023800 Latch
    Latch
  • 35
    703500014 L.H. Front Mudguard Kit. Includes 35 - 36.
    L.H. Front Mudguard Kit. Includes 35 - 36.
  • 703500015 R.H. Front Mudguard Kit
    R.H. Front Mudguard Kit
  • 36
    705000083 L.H. Reflector Front (Orange)
    L.H. Reflector Front (Orange)
  • 705000026 R.H. Reflector Front (Orange)
    R.H. Reflector Front (Orange)
  • 37
    207162044 Screw Hex. M6 x 20
    Screw Hex. M6 x 20
  • 38
    224060201 Washer Flat
    Washer Flat
  • 39
    233261414 Flanged Elastic Nut M6
    Flanged Elastic Nut M6
  • 40
    703500016 L.H. Rear Mudguard Kit. Includes 40 - 41.
    L.H. Rear Mudguard Kit. Includes 40 - 41.
  • 703500017 R.H. Rear Mudguard Kit
    R.H. Rear Mudguard Kit
  • 41
    704900026 Bombardier Label
    Bombardier Label
  • 42
    705000133 Protector L.H
    Protector L.H
  • 705000134 Protector R.H
    Protector R.H
  • 43
    250000061 Screw Hex. M6.3 x 19
    Screw Hex. M6.3 x 19
  • 44
    705000135 Protection Plate
    Protection Plate
  • 45
    207602544 Screw Hex. Flanged M10 x 25. Traxter.
    Screw Hex. Flanged M10 x 25. Traxter.
  • 250000042 Socket Screw. Traxter XT.
    Socket Screw. Traxter XT.
  • 46
    233201414 Elastic Flanged Nut M10. Traxter.
    Elastic Flanged Nut M10. Traxter.
  • 47
    705000192 Fender Cover. (Red 7459 - 7465) Traxter.
    Fender Cover. (Red 7459 - 7465) Traxter.
  • 705000193 Fender Cover. (Green 7460 - 7466 - 7467 - 7481)
    Fender Cover. (Green 7460 - 7466 - 7467 - 7481)
  • 705000179 Fender Cover. (XT Yellow 7468 - 7472) Traxter XT.
    Fender Cover. (XT Yellow 7468 - 7472) Traxter XT.
  • 48
    705000196 Plate Ass'y. Includes 48 - 49.
    Plate Ass'y. Includes 48 - 49.
  • 49
    293830084 Rubber Protector
    Rubber Protector
  • 50
    732600009 Screw Phillips M6 x 18
    Screw Phillips M6 x 18
  • 51
    207561644 Screw Hex. Flanged M6 x 16. (Scotch Grip)
    Screw Hex. Flanged M6 x 16. (Scotch Grip)
  • 52
    207582044 Screw Hex. Flanged M8 x 20. (Scotch Grip)
    Screw Hex. Flanged M8 x 20. (Scotch Grip)
  • 53
    705000180 Grill L.H. - Black
    Grill L.H. - Black
  • 705000181 Grill R.H. Black
    Grill R.H. Black
  • 54
    250100000 Push Nut
    Push Nut
  • 55
    705000132 Cap Cover
    Cap Cover
  • 56
    705000081 Indicator
    Indicator
  • 57
    414745900 Screw Phillips
    Screw Phillips
  • 58
    705000207 Cap. Traxter.
    Cap. Traxter.
  • 59
    570041600 Rubber Cover
    Rubber Cover
  • 60
    234181401 Lock Washer. Traxter XT.
    Lock Washer. Traxter XT.
  • 61
    234081410 Spring Washer. Traxter XT.
    Spring Washer. Traxter XT.
  • 62
    705000194 Cable Guide. Traxter XT.
    Cable Guide. Traxter XT.
