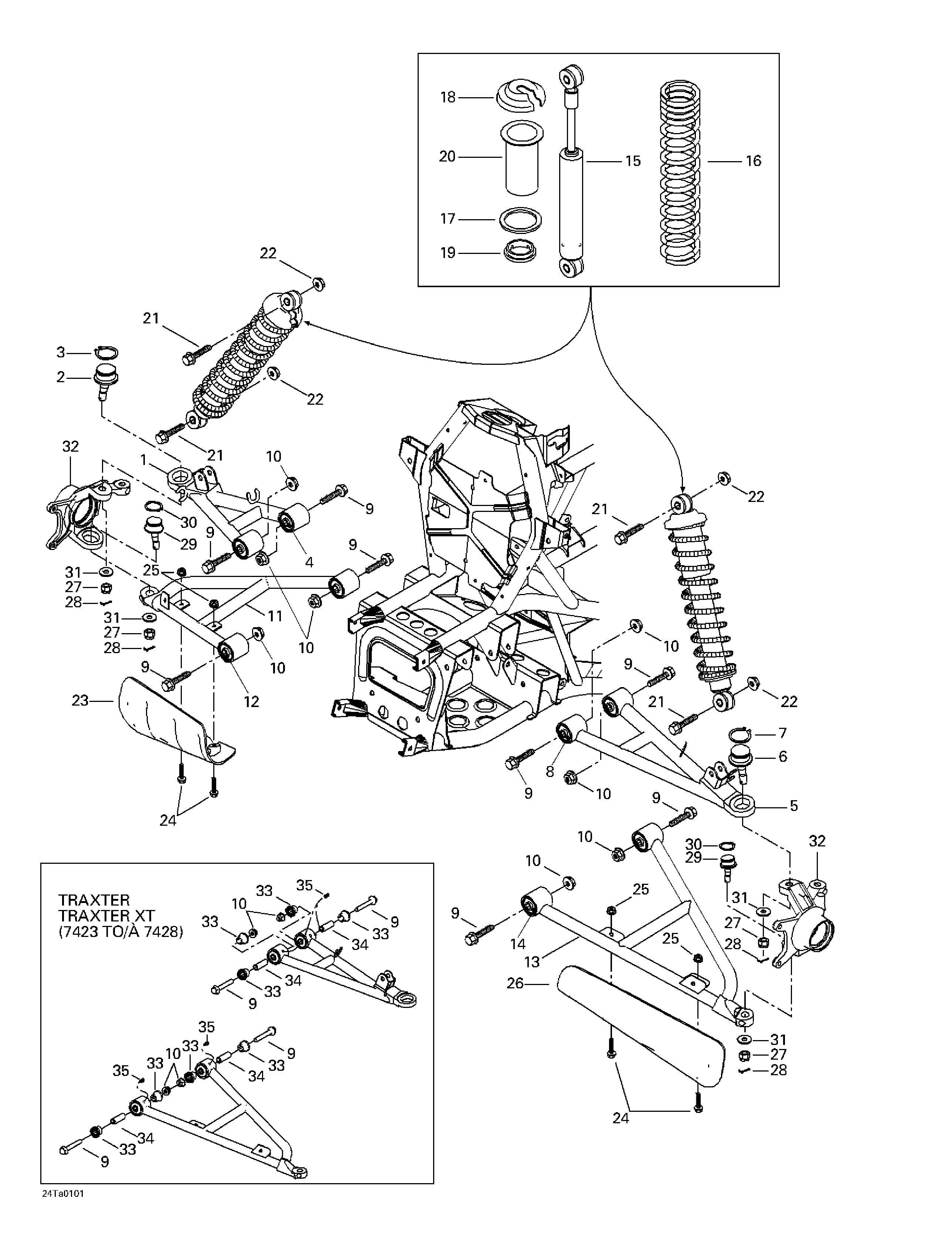

07- Front Suspension для BRP Traxter, 7423/7424 (yellow/jaune) - 2001

  • №
    Артикул
    Название
  • 1
    703500061 R.H. Upper Arm (7419 to 7422). Includes 1 - 3. 7421/7422/7427/7428 (Green/Vert). 7419/7420/7425/7426 (Red/Rouge).
    R.H. Upper Arm (7419 to 7422). Includes 1 - 3. 7421/7422/7427/7428 (Green/Vert). 7419/7420/7425/7426 (Red/Rouge).
  • 706200152 R.H. Upper Arm (7423 to 7428)
    R.H. Upper Arm (7423 to 7428)
  • 2
    706200091 Ball Joint
    Ball Joint
  • 3
    293370009 Circlip
    Circlip
  • 4
    706200025 Cushion. 7421/7422/7427/7428 (Green/Vert). 7419/7420/7425/7426 (Red/Rouge).
    Cushion. 7421/7422/7427/7428 (Green/Vert). 7419/7420/7425/7426 (Red/Rouge).
  • 5
    703500062 LH Upper Arm (7419 to 7422). Includes 5 - 7. 7421/7422/7427/7428 (Green/Vert). 7419/7420/7425/7426 (Red/Rouge).
    LH Upper Arm (7419 to 7422). Includes 5 - 7. 7421/7422/7427/7428 (Green/Vert). 7419/7420/7425/7426 (Red/Rouge).
  • 5
    706200155 LH Upper Arm (7423 to 7428). Includes 5 - 8.
    LH Upper Arm (7423 to 7428). Includes 5 - 8.
  • 6
    706200091 Ball Joint
    Ball Joint
  • 7
    293370009 Circlip
    Circlip
  • 8
    706200025 Cushion
    Cushion
  • 9
    207607046 Hex. Flanged Screw M10 x 70
    Hex. Flanged Screw M10 x 70
  • 10
    233201416 Elastic Flanged Stop Nut M10
    Elastic Flanged Stop Nut M10
  • 11
    706200159 R.H. Lower Arm (7423 to 7428)
    R.H. Lower Arm (7423 to 7428)
  • 11
    706200104 R.H. Lower Arm (7419 to 7422). Includes 11 - 12. 7421/7422/7427/7428 (Green/Vert). 7419/7420/7425/7426 (Red/Rouge).
    R.H. Lower Arm (7419 to 7422). Includes 11 - 12. 7421/7422/7427/7428 (Green/Vert). 7419/7420/7425/7426 (Red/Rouge).
  • 12
    706200025 Cushion
    Cushion
  • 13
    706200161 LH Lower Arm (7423 to 7428)
    LH Lower Arm (7423 to 7428)
  • 13
    706200107 LH Lower Arm (7419 to 7422). Includes 13 - 14. 7421/7422/7427/7428 (Green/Vert). 7419/7420/7425/7426 (Red/Rouge).
    LH Lower Arm (7419 to 7422). Includes 13 - 14. 7421/7422/7427/7428 (Green/Vert). 7419/7420/7425/7426 (Red/Rouge).
  • 14
    706200025 Cushion
    Cushion
  • 15
    706200137 Front Shock
    Front Shock
  • 16
    706200006 Front Spring
    Front Spring
  • 17
    706000028 Ring Holder
    Ring Holder
  • 18
    503140600 Spring Stopper
    Spring Stopper
  • 19
    706000007 Spring Seat
    Spring Seat
  • 20
    503139800 Protector
    Protector
  • 21
    207604544 Hex. Flanged Screw M10 x 45
    Hex. Flanged Screw M10 x 45
  • 22
    233201414 Elastic Flanged Stop Nut M10
    Elastic Flanged Stop Nut M10
  • 23
    706200007 Arm Protector R.H
    Arm Protector R.H
  • 24
    207661644 Hex. Flanged Screw M6 x 16
    Hex. Flanged Screw M6 x 16
  • 25
    233261414 Elastic Flanged Stop Nut M6
    Elastic Flanged Stop Nut M6
  • 26
    706200009 Arm Protector L.H
    Arm Protector L.H
  • 27
    232221414 Hex. Castellated Nut M12
    Hex. Castellated Nut M12
  • 28
    211400017 Cotter Pin
    Cotter Pin
  • 29
    706200091 Ball Joint
    Ball Joint
  • 30
    293370009 Circlip
    Circlip
  • 31
    503175400 Hardened Washer
    Hardened Washer
  • 32
    703500063 Knuckle RH (See B 12)
    Knuckle RH (See B 12)
  • 703500064 Knuckle LH (See B 12)
    Knuckle LH (See B 12)
  • 33
    706200157 Cushion (7423 to 7428)
    Cushion (7423 to 7428)
  • 34
    706200158 Interior Bushing (7423 to 7428)
    Interior Bushing (7423 to 7428)
  • 35
    408200700 Grease Fitting (7423 to 7428)
    Grease Fitting (7423 to 7428)
