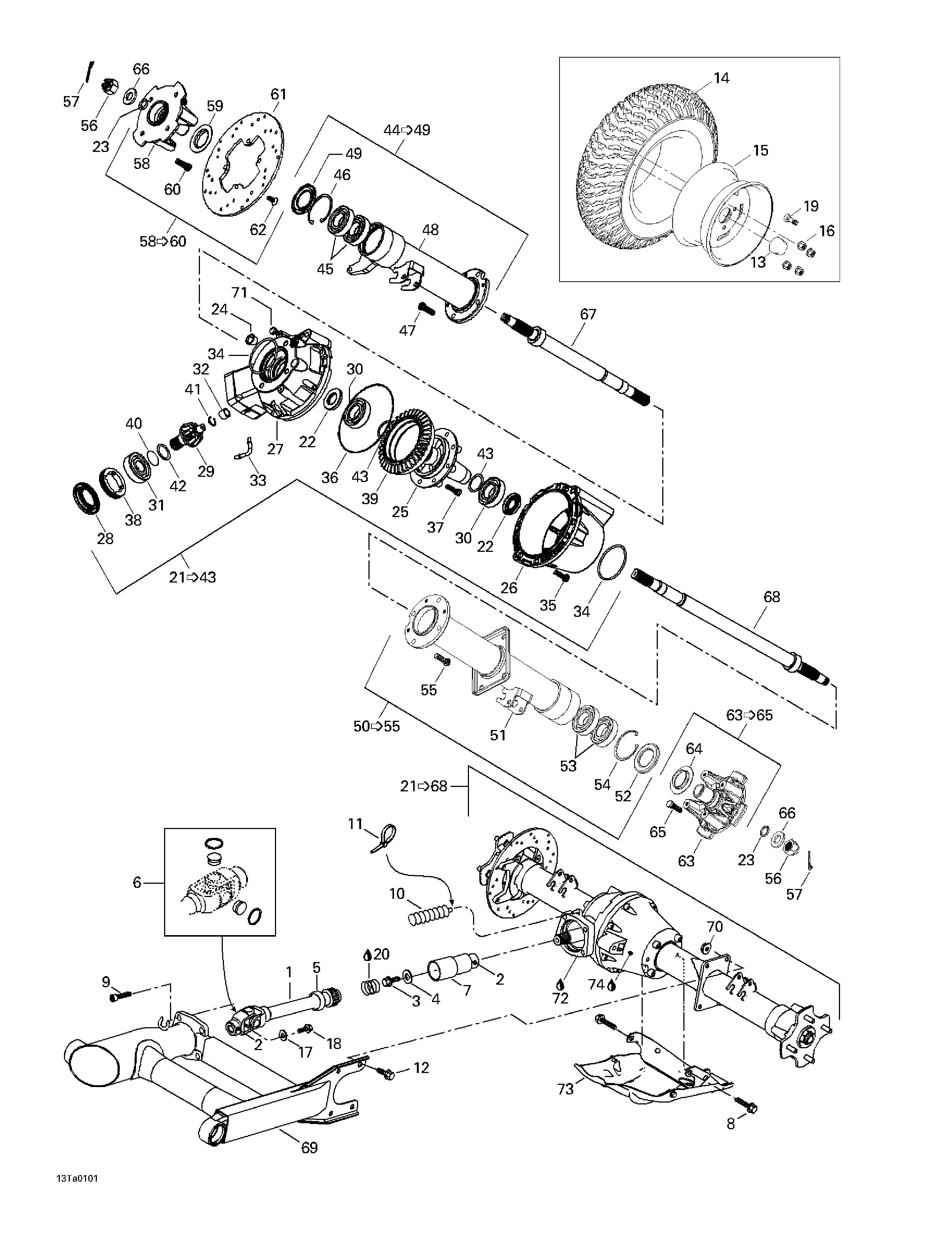

05- Drive System, Rear для BRP Traxter, 7421/7422/7427/7428 (green/vert) - 2001

  • №
    Артикул
    Название
  • 1
    703500007 Rear Propeller Shaft Ass'y. Includes 1 - 4.
    Rear Propeller Shaft Ass'y. Includes 1 - 4.
  • 2
    705400036 Wear Ring
    Wear Ring
  • 3
    705400034 Retainer Screw
    Retainer Screw
  • 4
    705400033 Washer
    Washer
  • 5
    705500097 Sealing Ring
    Sealing Ring
  • 6
    703500002 UniversalJointPackingKit
    UniversalJointPackingKit
  • 8
    207581046 Flanged Hex. Screw M8 x 10 (S. Grip)
    Flanged Hex. Screw M8 x 10 (S. Grip)
  • 9
    205502544 Socket Screw M10 x 25 (S.Grip)
    Socket Screw M10 x 25 (S.Grip)
  • 10
    705400066 Rubber Bellow
    Rubber Bellow
  • 11
    293750001 Tie Rap 94 mm
    Tie Rap 94 mm
  • 12
    207602544 Hex. Screw M10 x 25
    Hex. Screw M10 x 25
  • 13
    705400012 Wheel Cap
    Wheel Cap
  • 14
    705500004 Rear Tire. 7421/7422/7427/7428 (Green/Vert). 7419/7420/7425/7426 (Red/Rouge).
    Rear Tire. 7421/7422/7427/7428 (Green/Vert). 7419/7420/7425/7426 (Red/Rouge).
  • 705500140 Rear Tire. 7423/7424 (XT-Yellow/Jaune).
    Rear Tire. 7423/7424 (XT-Yellow/Jaune).
  • 15
    705500005 Rear Rim. 7421/7422/7427/7428 (Green/Vert). 7419/7420/7425/7426 (Red/Rouge).
    Rear Rim. 7421/7422/7427/7428 (Green/Vert). 7419/7420/7425/7426 (Red/Rouge).
  • 705500141 Rear Rim. 7423/7424 (XT-Yellow/Jaune).
    Rear Rim. 7423/7424 (XT-Yellow/Jaune).
  • 16
    705400013 Hex. Nut M10
    Hex. Nut M10
  • 17
    211200041 Washer
    Washer
  • 18
    207581646 Flanged Screw M8 x 16 (Scotch Grip)
    Flanged Screw M8 x 16 (Scotch Grip)
  • 19
    705400053 Valve, Rim
    Valve, Rim
  • 20
    293550019 Grease, 60 g
    Grease, 60 g
  • 705500157 Rigid Axle Ass'y (7423 to 7428)
    Rigid Axle Ass'y (7423 to 7428)
  • 22
    705500081 Seal Oil
    Seal Oil
  • 23
    293300052 O-Ring
    O-Ring
  • 24
    705500093 Drain Plug
    Drain Plug
  • 25
    705500159 Spool Propul
    Spool Propul
  • 26
    705500013 Differential Cap
    Differential Cap
  • 27
    705500014 Differential Carrier
    Differential Carrier
  • 28
    705400027 Seal-Oil
    Seal-Oil
  • 29
    705500076 Gear-10 Theeth
    Gear-10 Theeth
  • 30
    705500080 Bearing-Ball
    Bearing-Ball
  • 31
    705500074 Bearing-Ball
    Bearing-Ball
  • 32
    705500077 Bearing-Needle
    Bearing-Needle
  • 33
    705500124 Valve-Vent
    Valve-Vent
  • 34
    705500078 Ring-O
    Ring-O
  • 35
    705500088 Screw
    Screw
  • 36
    705500091 Seal
    Seal
  • 37
    705500090 Screw-Ring Gear
    Screw-Ring Gear
  • 38
    705500161 Nut
    Nut
  • 39
    705500087 Gear-36 Theeth
    Gear-36 Theeth
  • 40
    705500073 Ring-O
    Ring-O
  • 41
    705500102 Ring-Retaining
    Ring-Retaining
  • 703500049 Pinion Shim Kit (Not Shown)
    Pinion Shim Kit (Not Shown)
  • 703500050 Differential Shim Kit
    Differential Shim Kit
  • 44
    703500034 R.H. Tube Kit (7419 to 7422). Includes 44 - 49. 7421/7422/7427/7428 (Green/Vert). 7419/7420/7425/7426 (Red/Rouge).
    R.H. Tube Kit (7419 to 7422). Includes 44 - 49. 7421/7422/7427/7428 (Green/Vert). 7419/7420/7425/7426 (Red/Rouge).
  • 45
    705500084 Ball Bearing
    Ball Bearing
  • 46
    705500085 Retaining Ring
    Retaining Ring
  • 47
    705500086 Screw, Axle Tube (7419 to 7422). 7421/7422/7427/7428 (Green/Vert). 7419/7420/7425/7426 (Red/Rouge).
    Screw, Axle Tube (7419 to 7422). 7421/7422/7427/7428 (Green/Vert). 7419/7420/7425/7426 (Red/Rouge).
  • 705500149 Screw, Axle Tube (7423 to 7428)
    Screw, Axle Tube (7423 to 7428)
  • 48
    705500082 Axle Tube R.H. (7419 to 7422). 7421/7422/7427/7428 (Green/Vert). 7419/7420/7425/7426 (Red/Rouge).
    Axle Tube R.H. (7419 to 7422). 7421/7422/7427/7428 (Green/Vert). 7419/7420/7425/7426 (Red/Rouge).
  • 705500156 Axle Tube R.H. (7423 to 7428)
    Axle Tube R.H. (7423 to 7428)
  • 49
    705500099 Oil Seal
    Oil Seal
  • 51
    705500209 Axle Tube L.H
    Axle Tube L.H
  • 52
    705500099 Oil Seal
    Oil Seal
  • 53
    705500084 Ball Bearing
    Ball Bearing
  • 54
    705500085 Retaining Ring
    Retaining Ring
  • 55
    705500086 Screw, Axle Tube (7419 to 7422). 7421/7422/7427/7428 (Green/Vert). 7419/7420/7425/7426 (Red/Rouge).
    Screw, Axle Tube (7419 to 7422). 7421/7422/7427/7428 (Green/Vert). 7419/7420/7425/7426 (Red/Rouge).
  • 705500149 Screw, Axle Tube (7423 to 7428)
    Screw, Axle Tube (7423 to 7428)
  • 56
    232291413 Hex. Castle Nut M18
    Hex. Castle Nut M18
  • 57
    211400012 Cotter Pin
    Cotter Pin
  • 58
    705500006 Rear Wheel Hub R.H. Includes 58 - 60.
    Rear Wheel Hub R.H. Includes 58 - 60.
  • 59
    705500100 Wear Sleeve
    Wear Sleeve
  • 60
    211300020 Stud Wheel M10 x 30
    Stud Wheel M10 x 30
  • 61
    705600033 Brake Disk 220 mm (Rear)
    Brake Disk 220 mm (Rear)
  • 62
    235381646 Torque Screw M8 x 16
    Torque Screw M8 x 16
  • 63
    705500006 Rear Wheel Hub L.H. Includes 63 - 65.
    Rear Wheel Hub L.H. Includes 63 - 65.
  • 64
    705500100 Wear Sleeve
    Wear Sleeve
  • 65
    211300020 Stud Wheel M10 x 30
    Stud Wheel M10 x 30
  • 66
    211200049 Washer
    Washer
  • 67
    705500049 Axle Ass'y R.H
    Axle Ass'y R.H
  • 68
    705500050 Axle Ass'y L.H
    Axle Ass'y L.H
  • 69
    703500023 Swing Arm Kit (See C10)
    Swing Arm Kit (See C10)
  • 70
    233201414 Flanged Elastic Nut M10
    Flanged Elastic Nut M10
  • 71
    705500143 Cap Oil Level
    Cap Oil Level
  • 72
    293800053 Sealant Right Stuff 26015, 7 oz
    Sealant Right Stuff 26015, 7 oz
  • 73
    705000019 Protector Rear Differential
    Protector Rear Differential
  • 74
    293600011 Redline Pump Oil, 75W90, 12 x 6 oz
    Redline Pump Oil, 75W90, 12 x 6 oz
