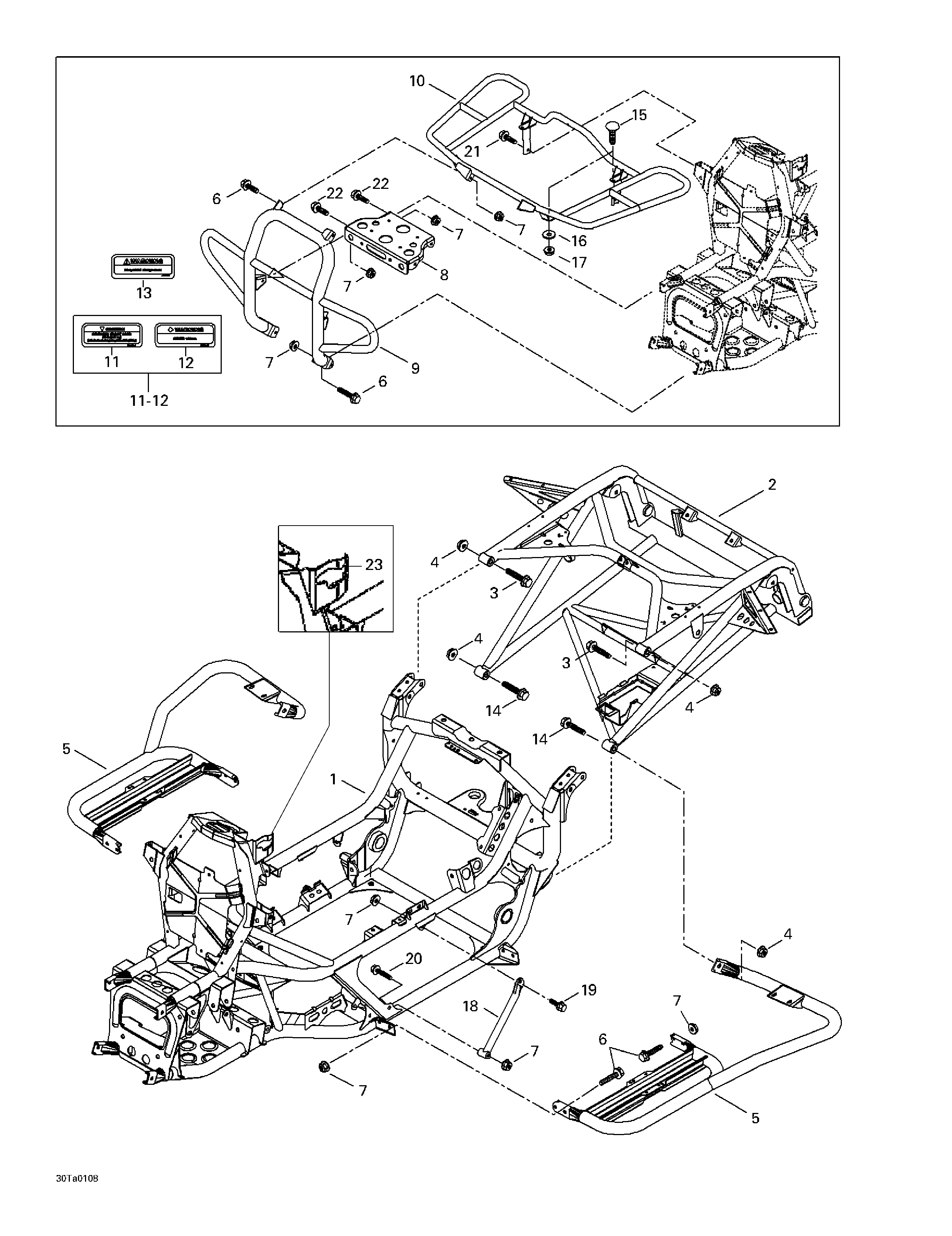

09- Frame And Luggage Racks для BRP Traxter XL, 7448 - 2001
-
№АртикулНазвание
-
1705200253 Frame (Black). (7448 Up to S/N v000708)Frame (Black). (7448 Up to S/N v000708)
-
705200448 Frame (Black). (7489) (7448 From S/N v000709)Frame (Black). (7489) (7448 From S/N v000709)
-
2705200285 Frame Extention (Black)Frame Extention (Black)
-
3207605544 Screw Hex. Flanged M10 x 55Screw Hex. Flanged M10 x 55
-
4233201414 Elastic Flanged Nut M10Elastic Flanged Nut M10
-
5705200329 Footrest LH (Grey)Footrest LH (Grey)
-
705200331 Footrest RH (Grey)Footrest RH (Grey)
-
6207682044 Screw Hex. Flanged M8 x 20Screw Hex. Flanged M8 x 20
-
7233281414 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
8705200196 Winch Latch (Black)Winch Latch (Black)
-
9705000001 Front Bumper (Grey)Front Bumper (Grey)
-
10703500053 Front Luggage Rack Ass'y. Includes 10 - 13.Front Luggage Rack Ass'y. Includes 10 - 13.
-
11704900037 Front Cargo Warning Labels. Includes 11 - 12.Front Cargo Warning Labels. Includes 11 - 12.
-
13704900038 Warning Label (Cover Attachment)Warning Label (Cover Attachment)
-
14207606044 Screw Hex. Flanged M10 x 60. (7448 Up to S/N v000708)Screw Hex. Flanged M10 x 60. (7448 Up to S/N v000708)
-
250000065 Screw Hex. Flanged M10 x 60. (7489) (7448 From S/N v000709)Screw Hex. Flanged M10 x 60. (7489) (7448 From S/N v000709)
-
15250000035 Carriage Bolt M6 x 25Carriage Bolt M6 x 25
-
16224060201 Flat WasherFlat Washer
-
17233261414 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
18705200143 Removable BraceRemovable Brace
-
19207682044 Screw Hex. Flanged M8 x 20Screw Hex. Flanged M8 x 20
-
20207685044 Screw Hex. Flanged M8 x 50Screw Hex. Flanged M8 x 50
-
21207582044 Screw Hex. Flanged M8 x 20 (S. Grip)Screw Hex. Flanged M8 x 20 (S. Grip)
-
22207682044 Screw Hex. Flanged M8 x 20Screw Hex. Flanged M8 x 20
-
23705200351 Shift PaternShift Patern
