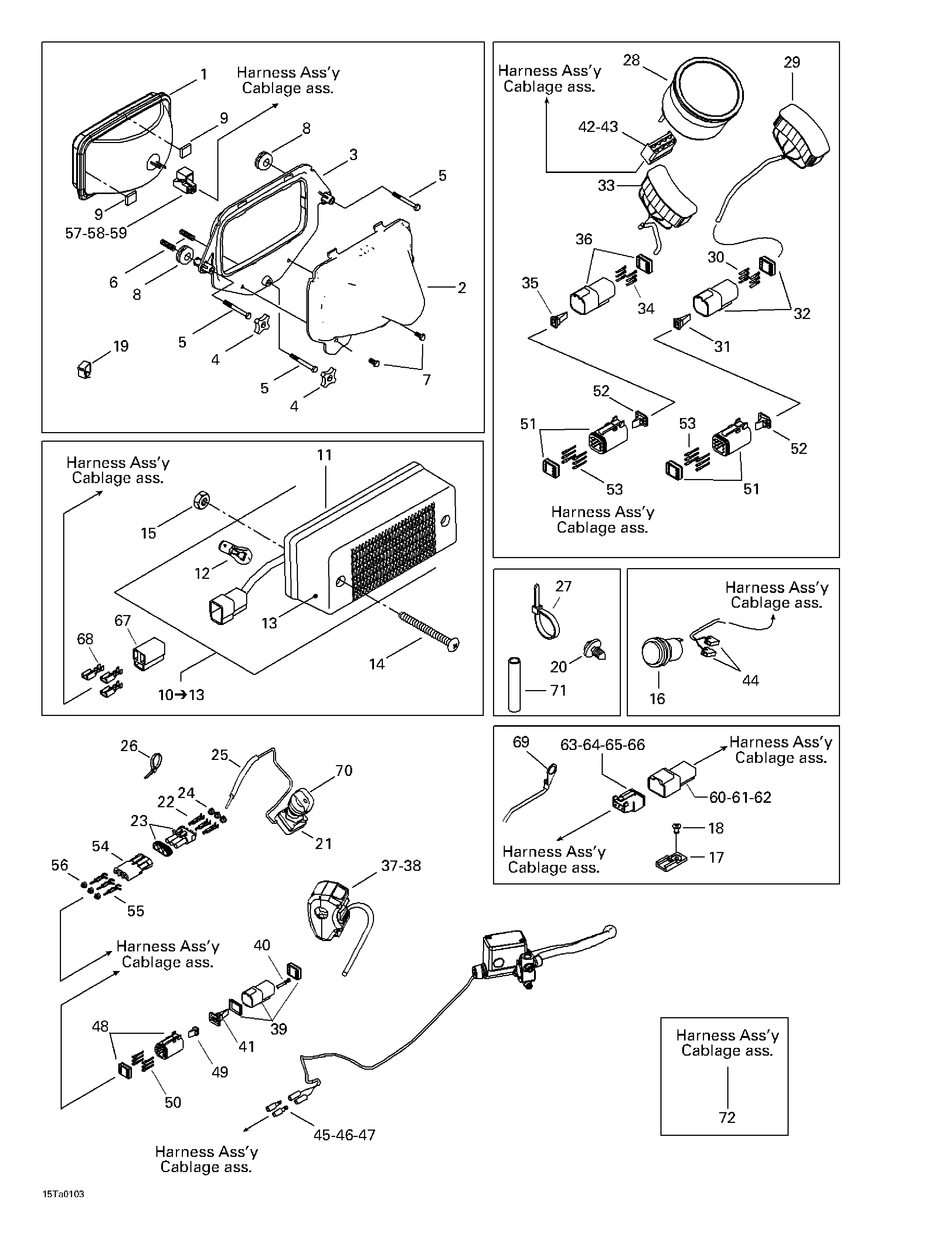

10- Main Harness And Electrical Accessories для BRP Traxter Autoshift - 2001

  • №
    Артикул
    Название
  • 1
    710000001 Headlamp
    Headlamp
  • 2
    705000023 Protector
    Protector
  • 3
    705000182 Headlamp Support
    Headlamp Support
  • 4
    572106600 Handle
    Handle
  • 5
    250000008 Hex. Screw K40 x 40
    Hex. Screw K40 x 40
  • 6
    517168600 Spring
    Spring
  • 7
    241641040 Flanged Screw K40 x 10
    Flanged Screw K40 x 10
  • 8
    293720053 Grommet
    Grommet
  • 9
    293830088 Rubber Pad
    Rubber Pad
  • 10
    710000102 Tail Lamp Housing. Includes 10 - 13.
    Tail Lamp Housing. Includes 10 - 13.
  • 11
    710000055 Lens (Red)
    Lens (Red)
  • 12
    410504100 Tail Lamp Bulb
    Tail Lamp Bulb
  • 13
    710000129 Gasket
    Gasket
  • 14
    208656091 Screw M5 x 60
    Screw M5 x 60
  • 15
    233251414 Elastic Flanged Stop Nut M5
    Elastic Flanged Stop Nut M5
  • 16
    710000024 DC Outlet Plug
    DC Outlet Plug
  • 17
    270000141 Clip
    Clip
  • 18
    390402400 Rivet
    Rivet
  • 19
    414227300 Clip
    Clip
  • 20
    293730018 Dart
    Dart
  • 21
    710000042 Ignition Switch. Includes 21 - 24.
    Ignition Switch. Includes 21 - 24.
  • 22
    278000223 Female Terminal (18 Gauge)
    Female Terminal (18 Gauge)
  • 23
    278000273 Male Housing (3 Circuits)
    Male Housing (3 Circuits)
  • 24
    278000218 Wire Seal (16-18 Gauge) (Green)
    Wire Seal (16-18 Gauge) (Green)
  • 25
    710000171 Protector Tube
    Protector Tube
  • 26
    293750002 Tie Rap 130 mm
    Tie Rap 130 mm
  • 27
    293750002 Tie Rap 130 mm
    Tie Rap 130 mm
  • 27
    293750008 Tie Rap 350 mm
    Tie Rap 350 mm
  • 27
    414115200 Tie Rap 180 mm
    Tie Rap 180 mm
  • 28
    710000021 Speedometer (MPH) (US)
    Speedometer (MPH) (US)
  • 28
    710000037 Speedometer (KM/H)
    Speedometer (KM/H)
  • 29
    710000089 R.H. Warning Lamp. Includes 29 - 32.
    R.H. Warning Lamp. Includes 29 - 32.
  • 30
    409014800 Male Terminal
    Male Terminal
  • 31
    409014600 Male Lock (6 Circuits)
    Male Lock (6 Circuits)
  • 32
    409015200 Male Housing (6 Circuits)
    Male Housing (6 Circuits)
  • 33
    710000008 LH Warning Lamp. Includes 33 - 36.
    LH Warning Lamp. Includes 33 - 36.
  • 34
    409014800 Male Terminal
    Male Terminal
  • 35
    409014600 Male Lock (6 Circuits)
    Male Lock (6 Circuits)
  • 36
    409015200 Male Housing (6 Circuits)
    Male Housing (6 Circuits)
  • 37
    710000088 Multi-function Switch. Includes 37 - 41.
    Multi-function Switch. Includes 37 - 41.
  • 38
    710000173 Back Cover
    Back Cover
  • 39
    409015200 Male Housing (6 Circuits)
    Male Housing (6 Circuits)
  • 40
    409014800 Male Terminal
    Male Terminal
  • 41
    409014600 Male Lock (6 Circuits)
    Male Lock (6 Circuits)
  • 42
    710000035 Female Housing (8 Circuits)
    Female Housing (8 Circuits)
  • 43
    710000036 Female Terminal
    Female Terminal
  • 44
    710000038 Female Terminal
    Female Terminal
  • 45
    278001007 Insulating Sheath (7431 @ 7434)
    Insulating Sheath (7431 @ 7434)
  • 46
    278000770 Insulating Sheath (7431 @ 7434)
    Insulating Sheath (7431 @ 7434)
  • 47
    278001009 Female Terminal (7431 @ 7434)
    Female Terminal (7431 @ 7434)
  • 47
    710000082 Female Terminal. (7461 / 7462 / 7469 / 7470 / 7471 / 7480)
    Female Terminal. (7461 / 7462 / 7469 / 7470 / 7471 / 7480)
  • 48
    409015400 Female Housing (6 Circuits)
    Female Housing (6 Circuits)
  • 49
    409014900 (Female) Secondary Lock (6 Circuits) (Deutsch)
    (Female) Secondary Lock (6 Circuits) (Deutsch)
  • 50
    409015100 Female Terminal
    Female Terminal
  • 51
    409015400 Female Housing (6 Circuits)
    Female Housing (6 Circuits)
  • 52
    409014900 (Female) Secondary Lock (6 Circuits) (Deutsch)
    (Female) Secondary Lock (6 Circuits) (Deutsch)
  • 53
    409015100 Female Terminal
    Female Terminal
  • 54
    278000281 Female Housing (3 Circuits)
    Female Housing (3 Circuits)
  • 55
    409004300 Male Terminal (16 Gauge)
    Male Terminal (16 Gauge)
  • 56
    278000218 Wire Seal (16-18 Gauge) (Green)
    Wire Seal (16-18 Gauge) (Green)
  • 57
    710000027 Female Terminal
    Female Terminal
  • 58
    710000028 Female Lock (2 Circuits)
    Female Lock (2 Circuits)
  • 59
    710000026 Female Housing (2 Circuits)
    Female Housing (2 Circuits)
  • 60
    710000044 Male Housing (3 Circuits)
    Male Housing (3 Circuits)
  • 61
    710000043 (Male) Secondary Lock (3 Circuits) (Deutsch)
    (Male) Secondary Lock (3 Circuits) (Deutsch)
  • 62
    409014800 Male Terminal
    Male Terminal
  • 63
    515175249 Female Housing (3 Circuits)
    Female Housing (3 Circuits)
  • 64
    515175248 (Female) Secondary Lock (3 Circuits) (Deutsch)
    (Female) Secondary Lock (3 Circuits) (Deutsch)
  • 65
    515175303 Plug
    Plug
  • 66
    409015100 Female Terminal
    Female Terminal
  • 67
    409204300 Female Connector Housing (2 Circuits)
    Female Connector Housing (2 Circuits)
  • 68
    561503100 Female Terminal
    Female Terminal
  • 69
    409012600 Open Barrel (12/10 Gauge)
    Open Barrel (12/10 Gauge)
  • 70
    710000101 Blank Key (''B'' Type)
    Blank Key (''B'' Type)
  • 70
    710000137 Blank Key (''A'' Type)
    Blank Key (''A'' Type)
  • 71
    515175332 Tubing 1/4''
    Tubing 1/4''
  • 71
    515175442 Tubing 6 mm
    Tubing 6 mm
  • 71
    409901700 Tubing 9 mm
    Tubing 9 mm
  • 71
    409901800 Tubing 13 mm
    Tubing 13 mm
  • 71
    415080000 Tubing 16 mm
    Tubing 16 mm
  • 71
    409901600 Tubing 19 mm
    Tubing 19 mm
  • 72
    710000152 Harness Ass'y (Not Shown)
    Harness Ass'y (Not Shown)
