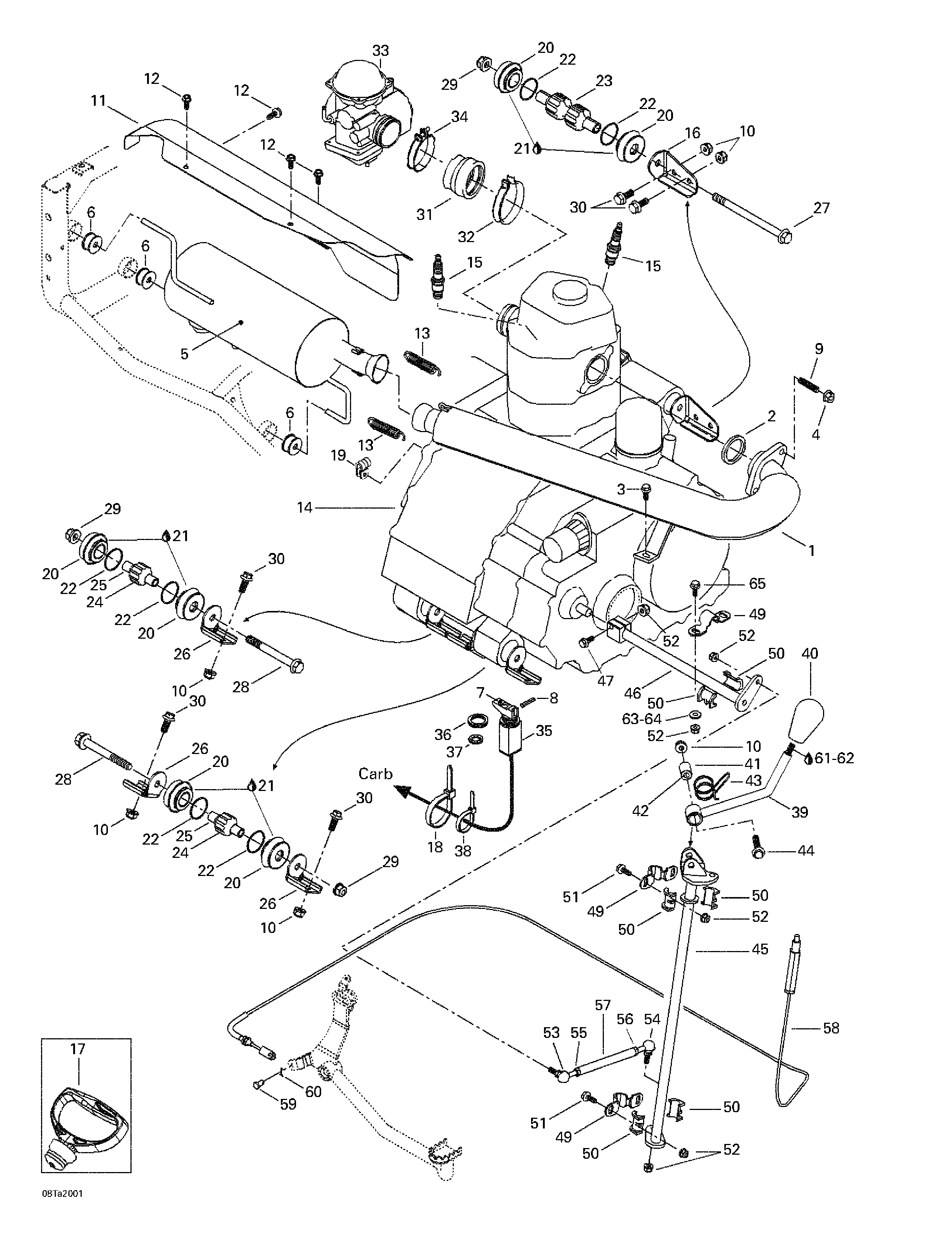

01- Exhaust System для BRP Traxter, 7413/7414 - 2000

  • №
    Артикул
    Название
  • 1
    707600062 Tuned Pipe
    Tuned Pipe
  • 2
    707600003 Gasket
    Gasket
  • 3
    207581244 Hex. Flanged Screw M8 x 12 (S. Grip)
    Hex. Flanged Screw M8 x 12 (S. Grip)
  • 4
    233081415 Hex. Flanged Nut M8
    Hex. Flanged Nut M8
  • 5
    707600063 Muffler
    Muffler
  • 6
    707600012 Rubber
    Rubber
  • 7
    707000043 Choke Cable Lever. 7413/7414. 7415/7416. 7417/7418.
    Choke Cable Lever. 7413/7414. 7415/7416. 7417/7418.
  • 707000032 Choke Cable Lever. 7400/7401.
    Choke Cable Lever. 7400/7401.
  • 8
    707000033 Rolled Pin
    Rolled Pin
  • 9
    711940366 Stud M8 x 23/20
    Stud M8 x 23/20
  • 10
    233281414 Elastic Flanged Stop Nut M8
    Elastic Flanged Stop Nut M8
  • 11
    707600016 Heat Shield. 7400/7401.
    Heat Shield. 7400/7401.
  • 707600051 Heat Shield. 7413/7414.
    Heat Shield. 7413/7414.
  • 707600075 Heat Shield. 7415/7416. 7417/7418.
    Heat Shield. 7415/7416. 7417/7418.
  • 12
    210261040 Hex. Screw M6 x 10
    Hex. Screw M6 x 10
  • 13
    415107100 Spring
    Spring
  • 14
    707000001 Rotax 4 Strokes Engine >
    Rotax 4 Strokes Engine >
  • 15
    707000008 Spark Plug (NGK / DR8EA)
    Spark Plug (NGK / DR8EA)
  • 16
    707000066 Engine Bracket
    Engine Bracket
  • 17
    711852515 Starting Grip
    Starting Grip
  • 18
    293750008 Tie Rap 350 mm
    Tie Rap 350 mm
  • 19
    705600040 Cable Clip
    Cable Clip
  • 20
    707000002 Anti-Vibration Mount
    Anti-Vibration Mount
  • 21
    293550018 Therma Lube Grease, 300 ml
    Therma Lube Grease, 300 ml
  • 22
    293300050 O-Ring
    O-Ring
  • 23
    707000019 Support Bushing
    Support Bushing
  • 24
    707000030 Support Bushing. Includes 24 - 25.
    Support Bushing. Includes 24 - 25.
  • 25
    707000004 Lower Bushing R.H
    Lower Bushing R.H
  • 26
    705200076 Engine Bracket
    Engine Bracket
  • 27
    230604044 Hex. Flanged Screw M10 x 140
    Hex. Flanged Screw M10 x 140
  • 28
    207609544 Hex. Flanged Screw M10 x 95
    Hex. Flanged Screw M10 x 95
  • 29
    233201414 Elastic Flanged Stop Nut M10
    Elastic Flanged Stop Nut M10
  • 30
    207682044 Hex. Flanged Screw M8 x 20
    Hex. Flanged Screw M8 x 20
  • 31
    707000009 Carburetor Adaptor
    Carburetor Adaptor
  • 32
    512059062 Clamp
    Clamp
  • 33
    707000044 Carburetor BST34. 7400/7401.
    Carburetor BST34. 7400/7401.
  • 707000061 Carburetor BST34-242. 7413/7414. 7415/7416. 7417/7418.
    Carburetor BST34-242. 7413/7414. 7415/7416. 7417/7418.
  • 34
    293650094 Gear Clamp
    Gear Clamp
  • 35
    707000034 Choke Cable
    Choke Cable
  • 36
    414977200 Plastic Nut
    Plastic Nut
  • 37
    394103300 Lock Washer
    Lock Washer
  • 38
    414115200 Tie Rap 180 mm
    Tie Rap 180 mm
  • 39
    707000010 Lever Ass'y
    Lever Ass'y
  • 40
    705500022 Lever Button
    Lever Button
  • 41
    705500023 Nylon Bushing
    Nylon Bushing
  • 42
    705500094 Aluminum Bushing
    Aluminum Bushing
  • 43
    705500024 Lever Spring
    Lever Spring
  • 44
    207685044 Hex. Flanged Screw M8 x 50
    Hex. Flanged Screw M8 x 50
  • 45
    705500134 Upper Tube
    Upper Tube
  • 46
    705500135 Lower Tube
    Lower Tube
  • 47
    207663544 Hex. Flanged Screw M6 x 35
    Hex. Flanged Screw M6 x 35
  • 49
    705500041 Clamp Retainer
    Clamp Retainer
  • 50
    705500033 Half Ring
    Half Ring
  • 51
    207661644 Hex. Flanged Screw M6 x 16
    Hex. Flanged Screw M6 x 16
  • 52
    233261414 Elastic Flanged Stop Nut M6
    Elastic Flanged Stop Nut M6
  • 53
    705500035 R.H. Ball Joint
    R.H. Ball Joint
  • 54
    705500036 LH Ball Joint
    LH Ball Joint
  • 55
    211100065 Hex. R.H. Jam. 7413/7414. 7415/7416. 7417/7418. .
    Hex. R.H. Jam. 7413/7414. 7415/7416. 7417/7418. .
  • 56
    211100066 Hex. LH Jam. 7413/7414. 7415/7416. 7417/7418. .
    Hex. LH Jam. 7413/7414. 7415/7416. 7417/7418. .
  • 57
    705500037 Tie-Rod (CDN)
    Tie-Rod (CDN)
  • 707500068 Tie-Rod Ass'y(US). 7415/7416. 7417/7418.
    Tie-Rod Ass'y(US). 7415/7416. 7417/7418.
  • 58
    705500038 Interlock Cable
    Interlock Cable
  • 59
    250400000 Clevis Pin
    Clevis Pin
  • 60
    250400001 Cotter Pin
    Cotter Pin
  • 61
    293800041 Primer Loctite
    Primer Loctite
  • 62
    293800060 Loctite 243, 10 ml
    Loctite 243, 10 ml
  • 63
    707000080 Shim 0.9 mm
    Shim 0.9 mm
  • 64
    707000081 Shim 1.9 mm
    Shim 1.9 mm
  • 65
    207662044 Hex. Flanged Screw M6 x 20. 7415/7416. 7417/7418.
    Hex. Flanged Screw M6 x 20. 7415/7416. 7417/7418.
  • 65
    207661644 Hex. Flanged Screw M6 x 16. 7400/7401. 7413/7414.
    Hex. Flanged Screw M6 x 16. 7400/7401. 7413/7414.
