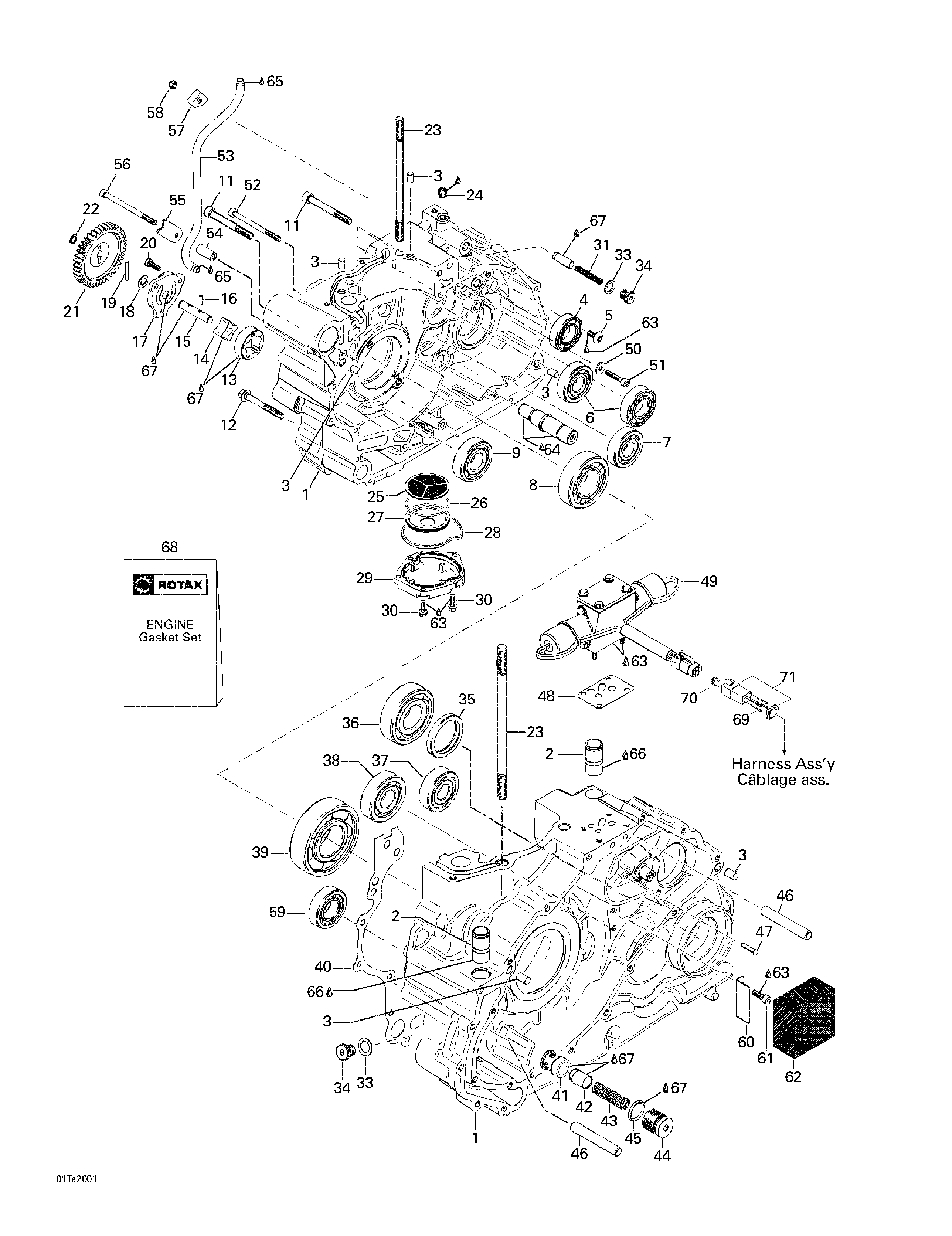

01- Crankcase для BRP Traxter, 7400/ 7401/7413/7414 - 1999

  • №
    Артикул
    Название
  • 1
    711295880 Crankcase Ass'y
    Crankcase Ass'y
  • 2
    711224260 Tube
    Tube
  • 3
    290632010 Pin M8 x 12
    Pin M8 x 12
  • 4
    420932650 Ball Bearing 6005
    Ball Bearing 6005
  • 5
    711241521 Flat Head Screw M6 x 16
    Flat Head Screw M6 x 16
  • 6
    711232764 Ball Bearing 6205
    Ball Bearing 6205
  • 7
    290932095 Ball Bearing 6304
    Ball Bearing 6304
  • 8
    711232490 Roller Bearing
    Roller Bearing
  • 9
    711632200 Ball Bearing 63/22
    Ball Bearing 63/22
  • 10
    711220570 Shaft, Intermediate Gear
    Shaft, Intermediate Gear
  • 11
    420841991 Socket Screw M8 x 70
    Socket Screw M8 x 70
  • 12
    711640351 Screw Hex. Flanged M6 x 65
    Screw Hex. Flanged M6 x 65
  • 13
    711956275 Oil Pump Rotor Ass'y. Includes 13 - 4.
    Oil Pump Rotor Ass'y. Includes 13 - 4.
  • 15
    711220590 Oil Pump Shaft
    Oil Pump Shaft
  • 16
    711232730 Needle Pin
    Needle Pin
  • 17
    711211850 Oil Pump Cover
    Oil Pump Cover
  • 18
    711827590 Thrust Washer
    Thrust Washer
  • 19
    420232970 Needle Pin M4 x 25
    Needle Pin M4 x 25
  • 20
    711241231 Socket Screw M6 x 16
    Socket Screw M6 x 16
  • 21
    711635030 Oil Pump Gear (40 Tooth)
    Oil Pump Gear (40 Tooth)
  • 22
    420245330 Snap Ring
    Snap Ring
  • 23
    711241670 Stud M10 x 190
    Stud M10 x 190
  • 24
    420240480 Plug Screw
    Plug Screw
  • 25
    711256570 Oil Sieve
    Oil Sieve
  • 26
    711650690 O-Ring
    O-Ring
  • 27
    711256650 Oil Collector
    Oil Collector
  • 28
    711650560 Rubber Ring
    Rubber Ring
  • 29
    711211940 Oil Sieve Cover
    Oil Sieve Cover
  • 30
    711241861 Screw Hex. Flanged M6 x 20
    Screw Hex. Flanged M6 x 20
  • 31
    711256590 Piston
    Piston
  • 32
    711238020 Compression Spring
    Compression Spring
  • 33
    711250015 Sealing Ring
    Sealing Ring
  • 34
    711241700 Plug Screw
    Plug Screw
  • 35
    711650700 Oil Seal
    Oil Seal
  • 36
    420932825 Ball Bearing 6305
    Ball Bearing 6305
  • 37
    711932815 Ball Bearing 6303E
    Ball Bearing 6303E
  • 38
    290932095 Ball Bearing 6304E
    Ball Bearing 6304E
  • 39
    711432120 Ball Bearing 6307
    Ball Bearing 6307
  • 40
    711650420 Gasket, Crankcase
    Gasket, Crankcase
  • 41
    711256600 Valve Seat Sleeve
    Valve Seat Sleeve
  • 42
    703500046 Pressure Regulator Kit. Includes 42 - 43. 7400/7401.
    Pressure Regulator Kit. Includes 42 - 43. 7400/7401.
  • 42
    711256630 Valve Piston. 7413/7414. 7415/7416. 7417/7418.
    Valve Piston. 7413/7414. 7415/7416. 7417/7418.
  • 43
    711938785 Compression Spring. 7413/7414. 7415/7416. 7417/7418.
    Compression Spring. 7413/7414. 7415/7416. 7417/7418.
  • 44
    711241715 Plug Screw M22
    Plug Screw M22
  • 45
    711250050 O-Ring
    O-Ring
  • 46
    711229470 Cylindrical Pin M10 x 65
    Cylindrical Pin M10 x 65
  • 47
    711229170 Groove Pin M4 x 20
    Groove Pin M4 x 20
  • 48
    711650630 Gasket, Soleno‹d Valve
    Gasket, Soleno‹d Valve
  • 49
    711256540 Soleno‹d Valve
    Soleno‹d Valve
  • 50
    711627400 Washer
    Washer
  • 51
    205063044 Allen Screw M6 x 30
    Allen Screw M6 x 30
  • 52
    420241501 Allen Screw M6 x 80
    Allen Screw M6 x 80
  • 53
    711224620 Oil Pipe
    Oil Pipe
  • 54
    711847052 Distance Sleeve
    Distance Sleeve
  • 55
    711627435 Holding Strip
    Holding Strip
  • 56
    711241481 Socket Screw M6 x 90
    Socket Screw M6 x 90
  • 57
    711627430 Holding Strip
    Holding Strip
  • 58
    232561414 Elastic Stop Nut M6 204
    Elastic Stop Nut M6 204
  • 59
    711232280 Roller Bearing 204
    Roller Bearing 204
  • 60
    711224640 Support Bracket
    Support Bracket
  • 61
    711840510 Allen Screw M5 x 16
    Allen Screw M5 x 16
  • 62
    711256720 Oil Separating Foam
    Oil Separating Foam
  • 63
    293800060 Loctite 243, 10 ml
    Loctite 243, 10 ml
  • 64
    711297433 Molykote G-N, 50 gr
    Molykote G-N, 50 gr
  • 65
    293800038 Loctite 518, 50 ml
    Loctite 518, 50 ml
  • 66
    413711400 Loctite 648, 10ml
    Loctite 648, 10ml
  • 68
    711296370 Gasket Set Engine
    Gasket Set Engine
  • 69
    409014800 Male Terminal Deutsch
    Male Terminal Deutsch
  • 70
    710000046 Male Lock 4 circ
    Male Lock 4 circ
  • 71
    710000045 Male Housing 4 circ
    Male Housing 4 circ
