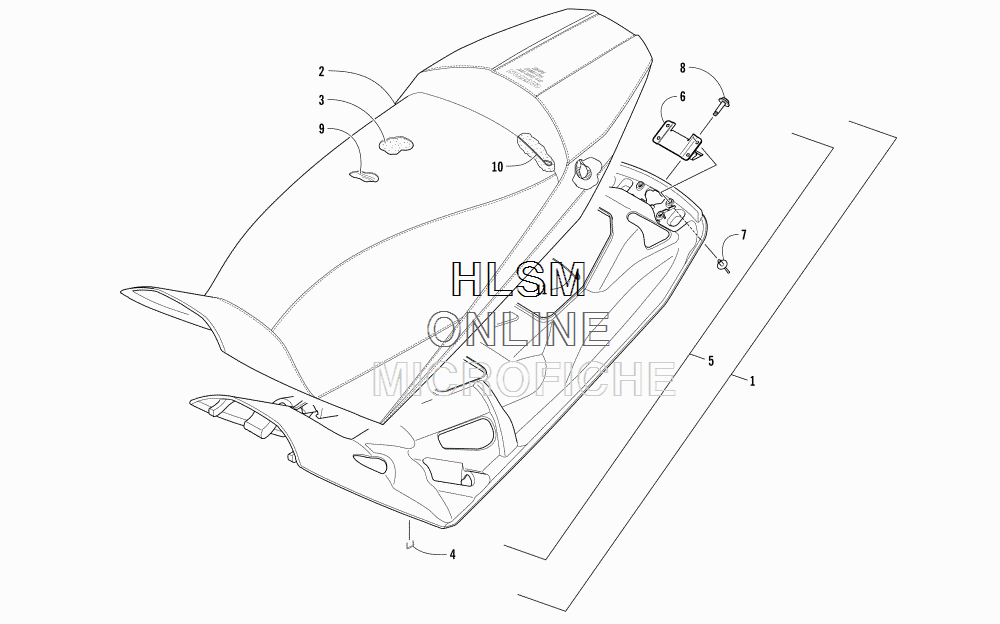

SEAT ASSEMBLY для Arctic Cat ZR 9000 SNO PRO 137 GREEN INTERNATIONAL - 2018 года выпуска`
-
№АртикулНазвание
-
16706-526 COMPLETE SEAT ASSEMBLY (INC. 2-7 AND 9-11)COMPLETE SEAT ASSEMBLY (INC. 2-7 AND 9-11)
-
26706-527 ...COVER, SEAT (INC. 10)...COVER, SEAT (INC. 10)
-
30717-214 ...FOAM, SEAT...FOAM, SEAT
-
40624-528 ...STAPLE...STAPLE
-
56706-251 ...SEAT-BASE (INC. 6-7)...SEAT-BASE (INC. 6-7)
-
66606-833 ......LATCH, SEAT......LATCH, SEAT
-
78061-708 ......RIVET......RIVET
-
80423-609 SCREW, MACHINESCREW, MACHINE
-
90609-913 PAD, SEAT HEATERPAD, SEAT HEATER
-
103606-369 WIRE, SEATWIRE, SEAT
-
116606-461 WIRE, SEATWIRE, SEAT
