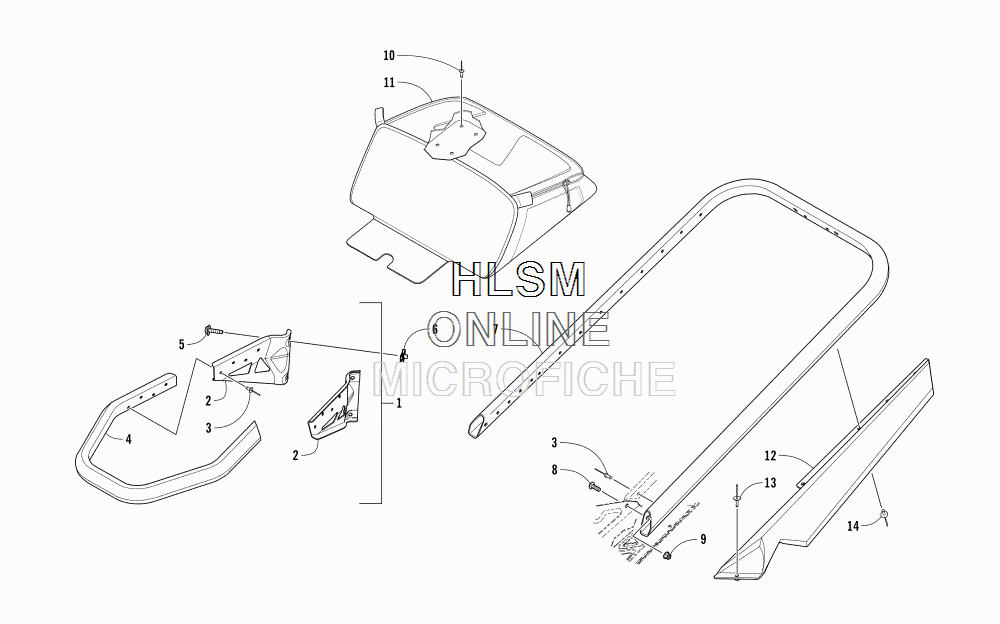

BUMPERS AND STORAGE для Arctic Cat ZR 8000 EL TIGRE ES 129 GREEN - 2018 года выпуска

  • №
    Артикул
    Название
  • 1
    1707-974 BUMPER, FRONT - ASSEMBLY - GREEN (INC. 2-5)
    BUMPER, FRONT - ASSEMBLY - GREEN (INC. 2-5)
  • 2
    1707-576 ...BRACKET, MOUNTING - BUMPER - RIGHT - BLACK
    ...BRACKET, MOUNTING - BUMPER - RIGHT - BLACK
  • 2
    1707-577 ...BRACKET, MOUNTING - BUMPER - LEFT - BLACK
    ...BRACKET, MOUNTING - BUMPER - LEFT - BLACK
  • 3
    8060-706 ...RIVET - BLACK
    ...RIVET - BLACK
  • 4
    1707-973 ...BUMPER, FRONT - GREEN
    ...BUMPER, FRONT - GREEN
  • 5
    0423-609 ...SCREW, MACHINE
    ...SCREW, MACHINE
  • 6
    0423-577 CLIP, U-NUT
    CLIP, U-NUT
  • 7
    2707-580 BUMPER, REAR - GREEN
    BUMPER, REAR - GREEN
  • 8
    8476-620 SCREW, MACHINE
    SCREW, MACHINE
  • 9
    8427-602 NUT, LOCK
    NUT, LOCK
  • 10
    8061-628 RIVET
    RIVET
  • 11
    7606-419 SADDLEBAG, REAR
    SADDLEBAG, REAR
  • 12
    6606-870 FLARE, TUNNEL - RIGHT (STANDARD ON LTD AND EL TIGRE)
    FLARE, TUNNEL - RIGHT (STANDARD ON LTD AND EL TIGRE)
  • 12
    6606-871 FLARE, TUNNEL - LEFT (STANDARD ON LTD AND EL TIGRE)
    FLARE, TUNNEL - LEFT (STANDARD ON LTD AND EL TIGRE)
  • 13
    8060-710 RIVET
    RIVET
  • 14
    8061-706 RIVET
    RIVET
