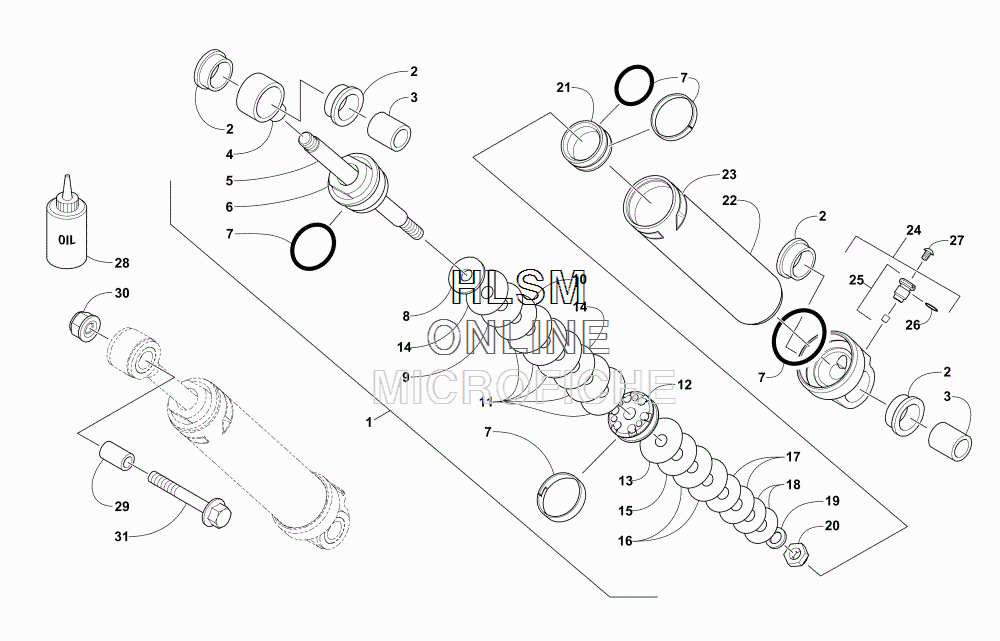

REAR SUSPENSION REAR ARM SHOCK ABSORBER для Arctic Cat ZR 7000 SNO PRO 137 GREEN - 2018 года выпуска

  • №
    Артикул
    Название
  • 1
    2704-686 SHOCK, REAR ARM (INC. 2-27)
    SHOCK, REAR ARM (INC. 2-27)
  • 2
    3604-738 ...BUSHING
    ...BUSHING
  • 3
    3604-737 ...SLEEVE
    ...SLEEVE
  • 4
    3604-796 ...EYELET, SHOCK
    ...EYELET, SHOCK
  • 5
    3604-810 ...ROD, SHOCK
    ...ROD, SHOCK
  • 6
    4604-127 ...BEARING, ENDCAP - LONG W/BLEED - ASSEMBLY - 2"
    ...BEARING, ENDCAP - LONG W/BLEED - ASSEMBLY - 2"
  • 7
    4604-121 ...KIT, SEAL/REBUILD
    ...KIT, SEAL/REBUILD
  • 8
    3604-874 ...WASHER, TOP OUT
    ...WASHER, TOP OUT
  • 9
    3603-185 ...VALVE, 1.300 X 0.010 IN.
    ...VALVE, 1.300 X 0.010 IN.
  • 10
    3604-873 ...VALVE, 1.425 X 0.010 IN.
    ...VALVE, 1.425 X 0.010 IN.
  • 11
    3604-871 ...VALVE, 1.600 X 0.010 IN.
    ...VALVE, 1.600 X 0.010 IN.
  • 12
    3604-870 ...PISTON, 0.055 IN. - ORIFICE
    ...PISTON, 0.055 IN. - ORIFICE
  • 13
    3604-886 ...VALVE, 1.425 X 0.012 IN.
    ...VALVE, 1.425 X 0.012 IN.
  • 14
    3603-125 ...VALVE, 1.000 X 0.010 IN.
    ...VALVE, 1.000 X 0.010 IN.
  • 15
    3603-146 ...VALVE, 1.100 X 0.012 IN.
    ...VALVE, 1.100 X 0.012 IN.
  • 16
    3603-126 ...VALVE, 1.000 X 0.012 IN.
    ...VALVE, 1.000 X 0.012 IN.
  • 17
    3603-117 ...VALVE, 0.900 X 0.016 IN.
    ...VALVE, 0.900 X 0.016 IN.
  • 18
    3603-107 ...VALVE, 0.800 X 0.016 IN.
    ...VALVE, 0.800 X 0.016 IN.
  • 19
    3604-775 ...WASHER, BACKUP
    ...WASHER, BACKUP
  • 20
    3604-739 ...NUT
    ...NUT
  • 21
    3604-876 ...PISTON, FLOATING
    ...PISTON, FLOATING
  • 22
    3604-914 ...BODY, SHOCK
    ...BODY, SHOCK
  • 23
    1621-728 ...DECAL, WARNING - HIGH PRESSURE
    ...DECAL, WARNING - HIGH PRESSURE
  • 24
    3604-894 ...END CAP, SHOCK - ASSEMBLY (INC. 25-26)
    ...END CAP, SHOCK - ASSEMBLY (INC. 25-26)
  • 25
    3604-751 ......VALVE, PRESSURE (INC. 26)
    ......VALVE, PRESSURE (INC. 26)
  • 26
    3604-733 .........O-RING, VALVE
    .........O-RING, VALVE
  • 27
    3604-750 ...SCREW, MACHINE
    ...SCREW, MACHINE
  • 28
    5639-530 OIL, SHOCK - 1 QT
    OIL, SHOCK - 1 QT
  • 29
    3604-109 SLEEVE
    SLEEVE
  • 30
    2623-202 NUT, LOCK W/WASHER
    NUT, LOCK W/WASHER
  • 31
    8408-045 SCREW, CAP
    SCREW, CAP
